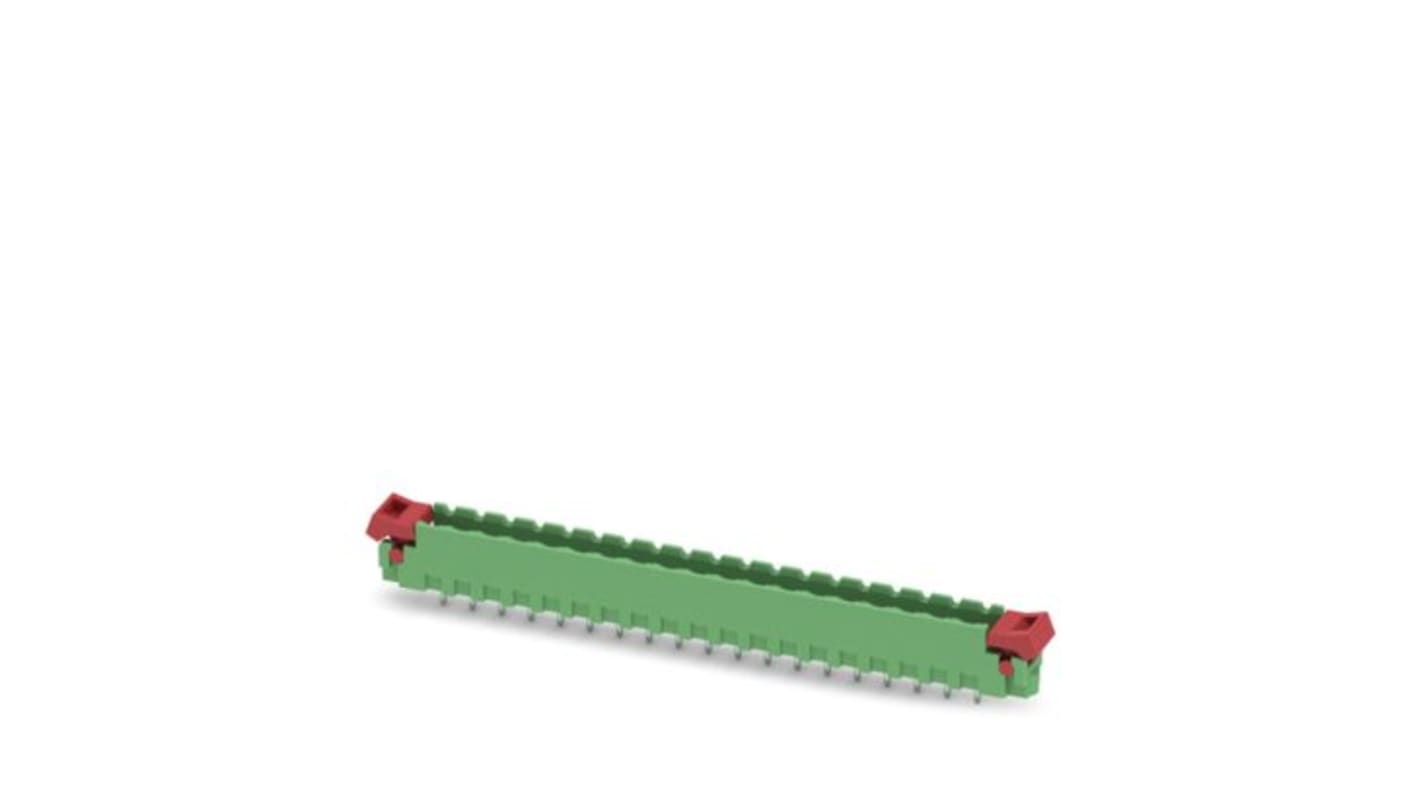

Phoenix Contact MSTBV Series Straight Wave Soldering Mount PCB Header, 19 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£399.98

(exc. VAT)

£479.98

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£399.98£8.00

*price indicative

RS Stock No.:
489-057
Mfr. Part No.:
1808638
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MSTBV

Current

12A

Pitch

5.08mm

Number of Contacts

19

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Minimum Operating Temperature

-40°C

Termination Type

Solder

Row Pitch

5.08mm

Contact Gender

Male

Tail Pin Length

3.9mm

Maximum Operating Temperature

105°C

Mating Pin Length

3.9mm

Standards/Approvals

CSA, cULus, EN ISO 22479:2022-06, IEC 60068-2-70:1995-12, IEC 60068-2-82/JEDEC JESD 201, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, UL 94 V0, VDE

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header is designed to meet the high demands of modern electronic device connections. The MSTBV 2.5/19-GEH-5.08 model provides a robust solution with exceptional flexibility in device design. Its green PBT housing houses precision-engineered contacts that ensure reliable connectivity across various applications. The product's thoughtful design facilitates easy mounting through wave soldering, while the linear pinning layout enhances multi-row arrangement on circuit boards. With a nominal current of 12 A and a rated voltage of up to 320 V, this PCB header stands out for its performance and reliability, making it an ideal choice for engineers seeking efficiency without compromise. The quality manufacturing ensures durability even in challenging environments, further reinforcing its place in the realm of dependable connectivity.

Offers versatility for various connection technologies

Facilitates straightforward installation with wave soldering

Enables compact multi-row configurations on PCBs

Constructed with WEEE/RoHS-compliant materials

Features a durable tin-plated contact surface

Designed for use in temperature ranges from -40 °C to 105 °C

Complies with international standards for quality and safety

Lightweight construction for efficient handling and assembly

Supports high-frequency applications with minimal signal loss

Allows for easy integration into existing system designs
