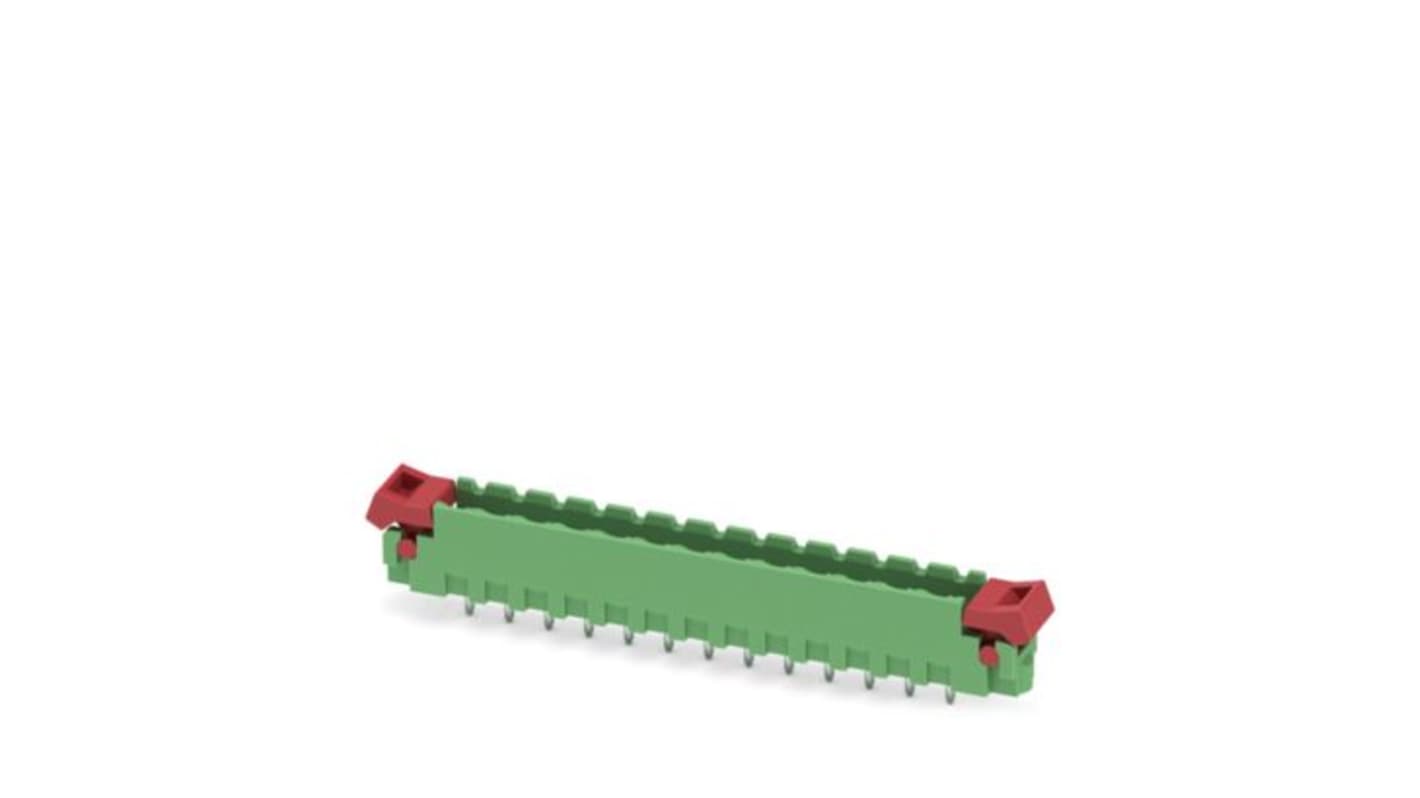

Phoenix Contact MSTBV Series Straight Wave Soldering Mount PCB Header, 13 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£284.99

(exc. VAT)

£341.99

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£284.99£5.70

*price indicative

RS Stock No.:
489-054
Mfr. Part No.:
1808573
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MSTBV

Product Type

PCB Header

Pitch

5.08mm

Current

12A

Number of Contacts

13

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Termination Type

Solder

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Contact Gender

Male

Maximum Operating Temperature

105°C

Tail Pin Length

3.9mm

Mating Pin Length

3.9mm

Standards/Approvals

CSA, cULus, EN ISO 22479:2022-06, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, VDE

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact MSTBV 2.5/13-GEH-5.08 is an advanced PCB header designed to enhance connectivity in various electronic applications. Crafted with precision, this product is ideal for engineers seeking reliable solutions in modern circuitry. The product accommodates a nominal cross section of 2.5 mm² and is marked by its vibrant green housing, providing both functionality and aesthetic appeal. Its robust design supports a nominal current of 12 A, making it suitable for high-performance applications. Tailored for wave soldering, this header promotes ease of installation and longevity, ensuring seamless integration into your systems. The MSTBV series reflects a pinnacle of reliability, incorporating advanced materials to meet stringent industry standards. With provisions for easy plug-in system compatibility, this PCB header stands ready to meet the evolving demands of today's technological landscape.

Standard pin strip offers compatibility for various applications

Designed for wave soldering, ensuring efficient assembly

Lightweight construction promotes ease of handling and installation

Linear pinning layout enhances reliability during use

Green colour coding simplifies identification in complex assemblies

High-quality tin-plated contacts reduce the risk of corrosion

Solder pin length optimised for enhanced connectivity performance

One potential connection per solder pin maximises design flexibility

Compliant with stringent environmental regulations for peace of mind
