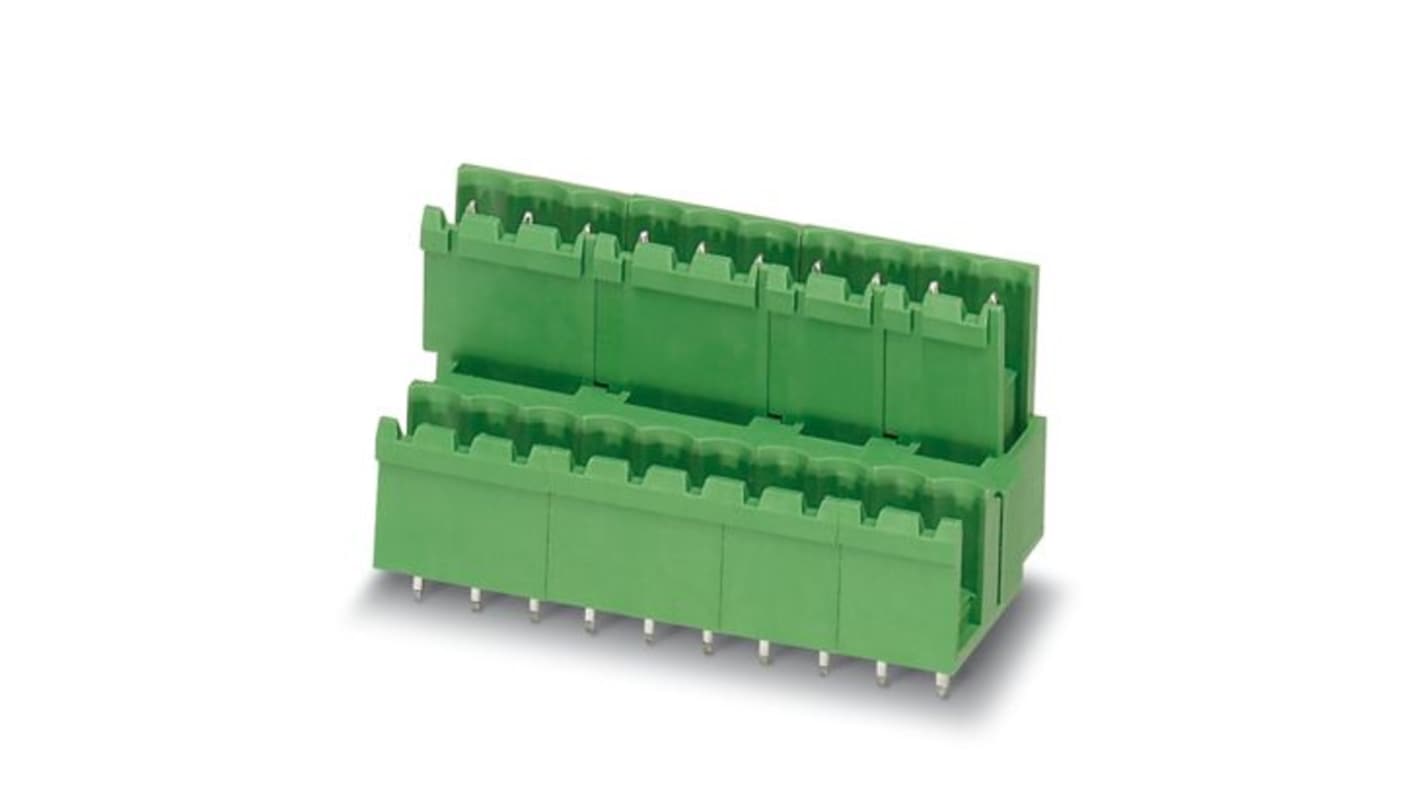

Phoenix Contact MDSTBV Series Angled Wave Soldering Mount PCB Header, 2 Contact(s), 5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£143.99

(exc. VAT)

£172.79

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£143.99£2.88

*price indicative

RS Stock No.:
483-588
Mfr. Part No.:
1763032
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MDSTBV

Product Type

PCB Header

Pitch

5mm

Current

10A

Housing Material

Polybutylene Terephthalate

Number of Contacts

2

Number of Rows

2

Orientation

Angled

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Row Pitch

5mm

Termination Type

Solder

Contact Gender

Male

Tail Pin Length

3.9mm

Maximum Operating Temperature

100°C

Standards/Approvals

CSA, cULus, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, REACH, RoHS, UL 94 V0, VDE

Mating Pin Length

3.9mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact MDSTBV 2.5/2-G PCB header is designed to facilitate flexibility in device design, catering to various connection technologies with a singular header solution. This essential component allows for effortless replacement of PCBs via plug-in modules, accommodating high-density requirements with multiple levels for conductor connections. Its compact size ensures efficient use of space, while the well-established mounting principle assures compatibility and reliability across diverse applications. Crafted with robust materials, this PCB header meets stringent compliance standards, offering peace of mind in both performance and durability.

Allows easy adaptability for different connection technologies

Promotes quick PCB changes through efficient plug-in modules

Designed for global compatibility with standardised mounting methods

Enables increased contact density with its multi-level conductor connection

Constructed from materials that comply with WEEE and RoHS regulations

Features a reliable locking mechanism for secure connections

Compact dimension accommodates space-sensitive applications

Integration with multiple plug components enhances versatility
