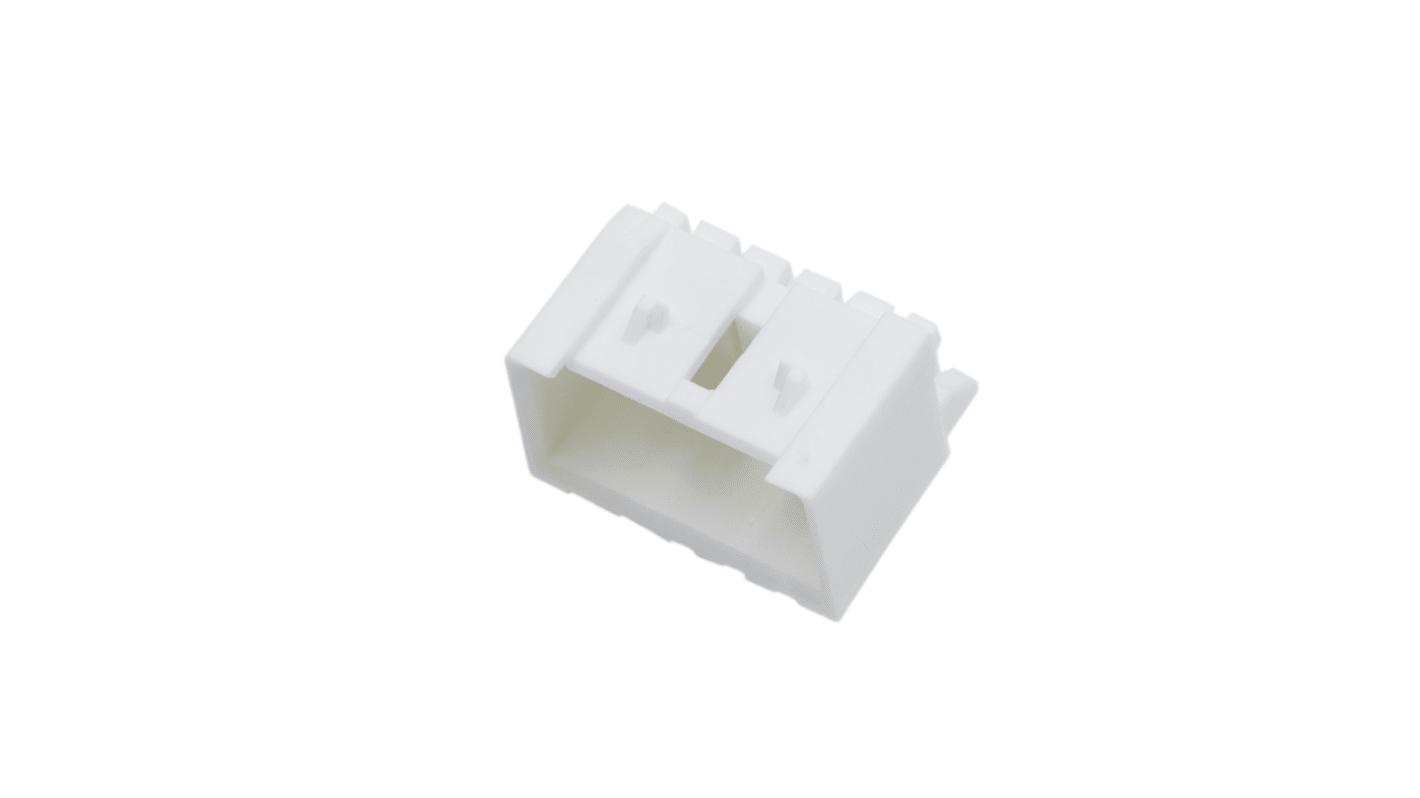

Molex 53426 Series Right Angle Through Hole PCB Header, 5 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 481-088
- Mfr. Part No.:
- 53426-0510
- Brand:
- Molex
Subtotal (1 tray of 500 units)*
£200.70
(exc. VAT)
£240.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £200.70 | £0.401 |
*price indicative
- RS Stock No.:
- 481-088
- Mfr. Part No.:
- 53426-0510
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 53426 | |
| Product Type | PCB Header | |
| Current | 3A | |
| Pitch | 2.5mm | |
| Housing Material | Polyester | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Kinked Pin | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.4mm | |
| Standards/Approvals | 94V-0, CSA LR19980, UL E29179 | |
| Voltage | 250 Vrms | |
| Distrelec Product Id | 304-57-432 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 53426 | ||
Product Type PCB Header | ||
Current 3A | ||
Pitch 2.5mm | ||
Housing Material Polyester | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Kinked Pin | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.4mm | ||
Standards/Approvals 94V-0, CSA LR19980, UL E29179 | ||
Voltage 250 Vrms | ||
Distrelec Product Id 304-57-432 | ||
- COO (Country of Origin):
- JP
The TE Connectivity Mini-Lock PCB Header is designed for versatility and durability, making it an ideal choice for various applications. This product features a right-angle configuration with kinked pins, ensuring optimal integration in tight spaces while maintaining a secure and reliable connection. The header's robust construction utilises phosphor bronze for metal components and polyester for its resin, contributing to its enduring performance in diverse environments. With a positive locking mechanism, this product guarantees a solid connection, safeguarding against accidental disconnections during operation. Additionally, its lightweight design allows for easy handling and installation, making it a preferred solution for signal and wire-to-board applications.
Ideal for various signal and wire-to-board applications
Certified to meet safety standards including CSA and UL
Durable construction guaranteed for up to 30 mating cycles
Compatible with Mini-Lock Single Row Receptacle for seamless integration
Available in natural colour, ensuring compatibility with various designs
Operates effectively across a wide temperature range
