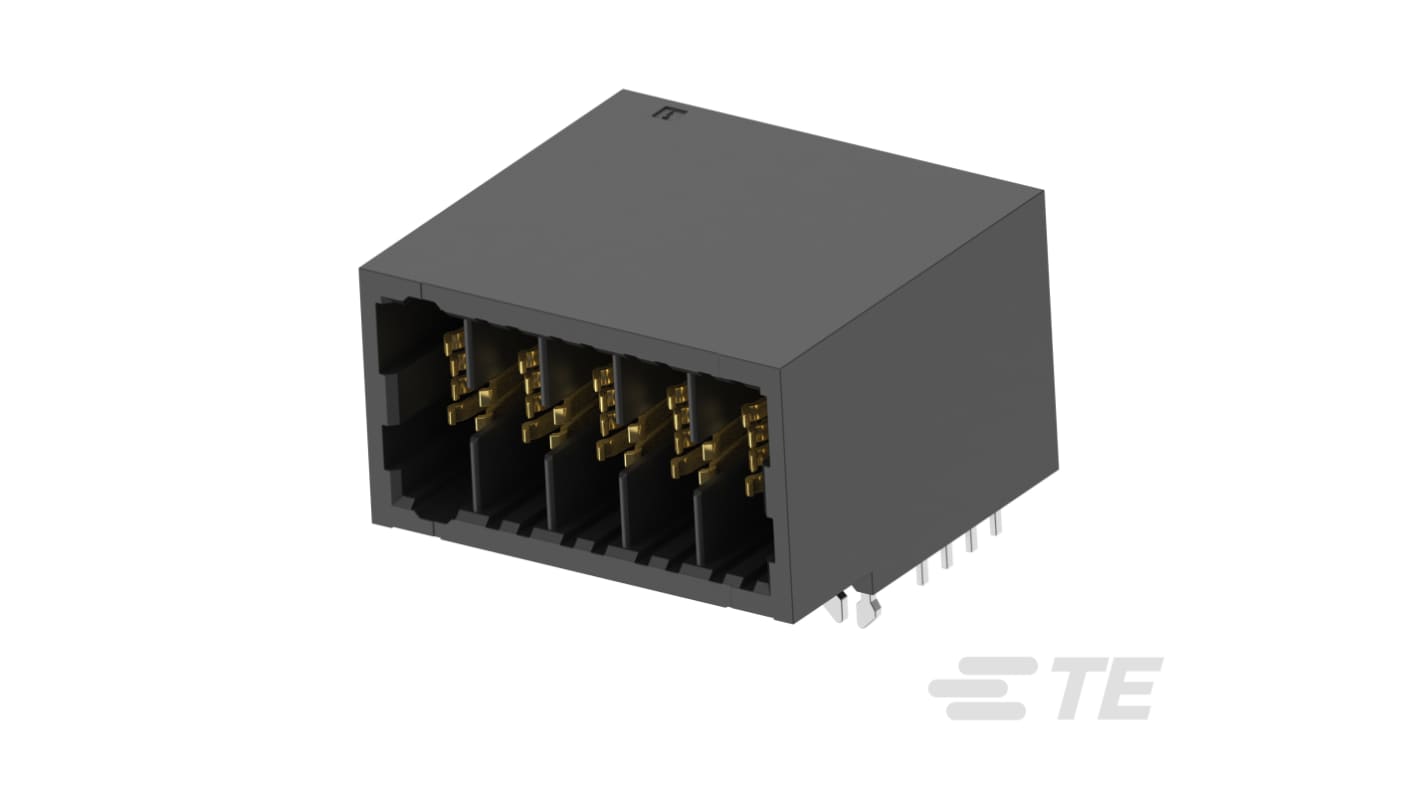

TE Connectivity Dynamic DZ 5200 Series Right Angle PCB PCB Header, 5 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 25 units)*

£195.74

(exc. VAT)

£234.89

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£195.74£7.83

*price indicative

RS Stock No.:
471-700
Mfr. Part No.:
1-1747145-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

Dynamic DZ 5200

Current

2A

Pitch

5.08mm

Number of Contacts

5

Housing Material

Fibreglass Reinforced Polybutylene Terephthalate

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

PCB

Connector System

Board-to-Board

Contact Plating

Gold

Row Pitch

5.08mm

Minimum Operating Temperature

-55°C

Termination Type

Solder

Maximum Operating Temperature

105°C

Standards/Approvals

2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0

Distrelec Product Id

304-53-399

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header is designed for right angle, board-to-board applications, distinguishing itself with a robust and fully shrouded configuration. Tailored to accommodate five positions with a 5.08 mm centreline, this component ensures reliable connectivity while maximising space efficiency in electronic designs. The gold-plated contacts not only enhance conductivity but also provide superior resistance to corrosion, making it ideal for demanding environments. With a compact yet highly functional design, this header is perfect for a variety of applications, particularly where space is at a premium and reliability is paramount. Its versatile design further allows for easy integration into existing systems, making it an excellent choice for engineers and designers alike.

Features a fully shrouded header design for enhanced safety

Accommodates a right angle PCB mount orientation for versatile installation

Constructed from high grade PBT GF housing material for durability

Incorporates a polarization feature to ensure correct mating alignment

Rated for a maximum current of 20 A for efficient power transmission

Allows through hole solder termination for a secure connection to the PCB
