JST SHLV Series Right Angle Surface Mount PCB Header, 31 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 372-134
- Mfr. Part No.:
- SM31B-SHLVS-G-TB
- Brand:
- JST

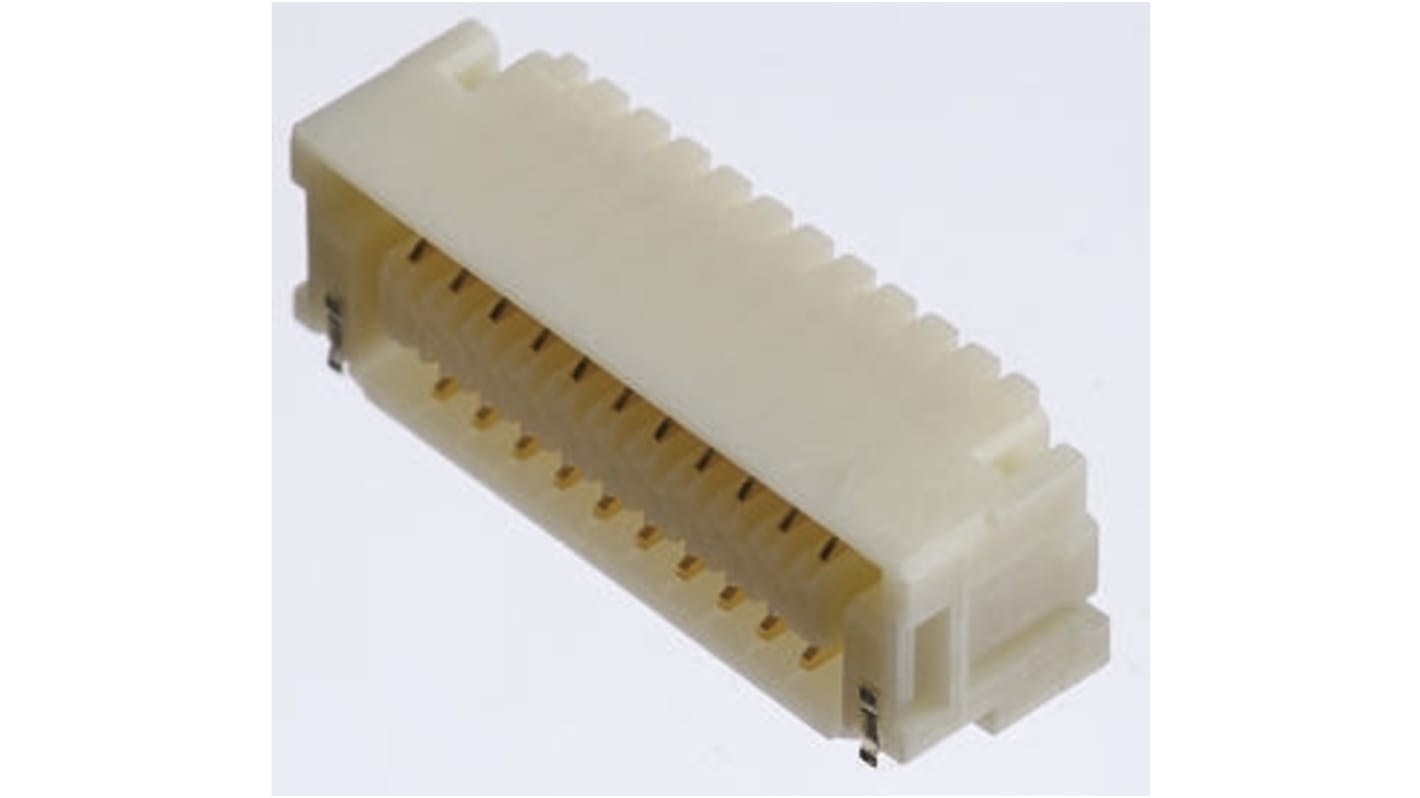

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 372-134
- Mfr. Part No.:
- SM31B-SHLVS-G-TB
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | SHLV | |
| Pitch | 0.5mm | |
| Number of Contacts | 31 | |
| Number of Rows | 2 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Surface Mount | |
| Connector System | Wire to Board | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Current Rating | 1.0A | |
| Voltage Rating | 30.0 V | |
Select all | ||
|---|---|---|
Brand JST | ||
Series SHLV | ||
Pitch 0.5mm | ||
Number of Contacts 31 | ||
Number of Rows 2 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Current Rating 1.0A | ||
Voltage Rating 30.0 V | ||
- COO (Country of Origin):
- JP
JST SHLV series Shrouded PCB Header
Fully shrouded straight (top-entry) and right-angle (side entry) surface mounting PCB headers from JST. These two-row headers have a cable pitch of 1.0mm and a PCB mounting pitch of 0.5mm.
JST SHLV Series 1.0mm Wire-to-board Connectors
