Amphenol Communications Solutions BergStik Series Straight Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 5 units)*

£17.74

(exc. VAT)

£21.29

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Pack*
5 - 120£3.548£17.74
125 - 495£2.824£14.12
500 - 2495£2.546£12.73
2500 - 4995£2.476£12.38
5000 +£2.416£12.08

*price indicative

RS Stock No.:
252-535
Mfr. Part No.:
75160-327-36LF
Brand:
Amphenol Communications Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Communications Solutions

Series

BergStik

Pitch

2.54mm

Number of Contacts

36

Number of Rows

1

Body Orientation

Straight

Shrouded/Unshrouded

Unshrouded

Mounting Type

Through Hole

Connector System

Board to Board, Wire to Board

Termination Method

Solder

Contact Plating

Tin

Contact Material

Phosphor Bronze

Tail Pin Length

2.37mm

Mating Pin Length

6.6mm

COO (Country of Origin):
CN

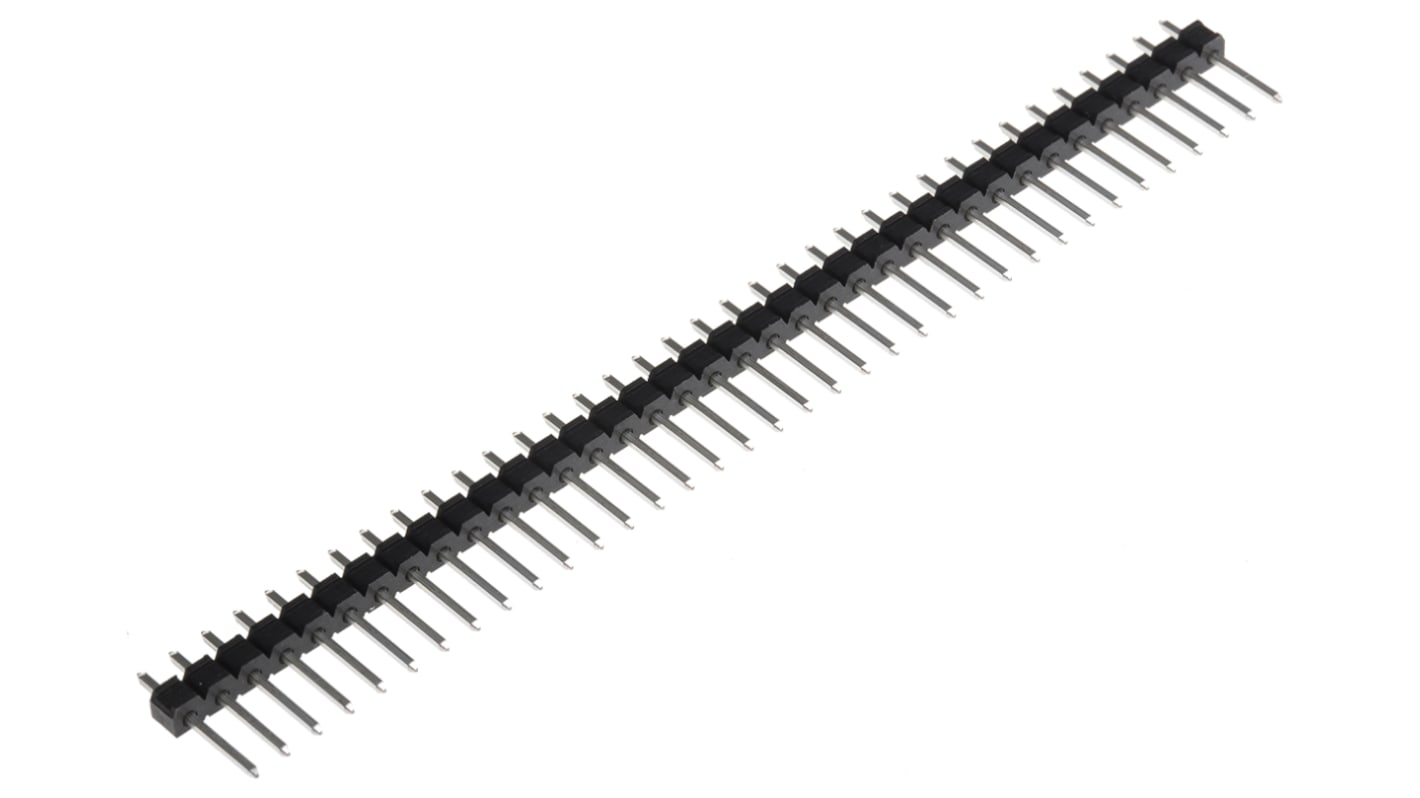

Single Row BergStik Header Strip


This range of FCI BergStik 2.54 mm pitch x 0.6 mm square, Through Hole, Pin Header Strips are Tin or Gold plated all over. These BergStik 2.54 mm pitch Pin Header Strips can be cut to the desired length, manually or with a special tool.

36 way phosphor bronze contacts
Flammability rating UL94 V-0
Rated at 3A/1000V
Operating temperature range -65 → +125°C

Standards

CEI 682-20


2.54 mm FCI Bergstik


High temperature black thermoplastic.,Flammability rating UL 94 V-0.,Pin retention to housing 9 N min.
