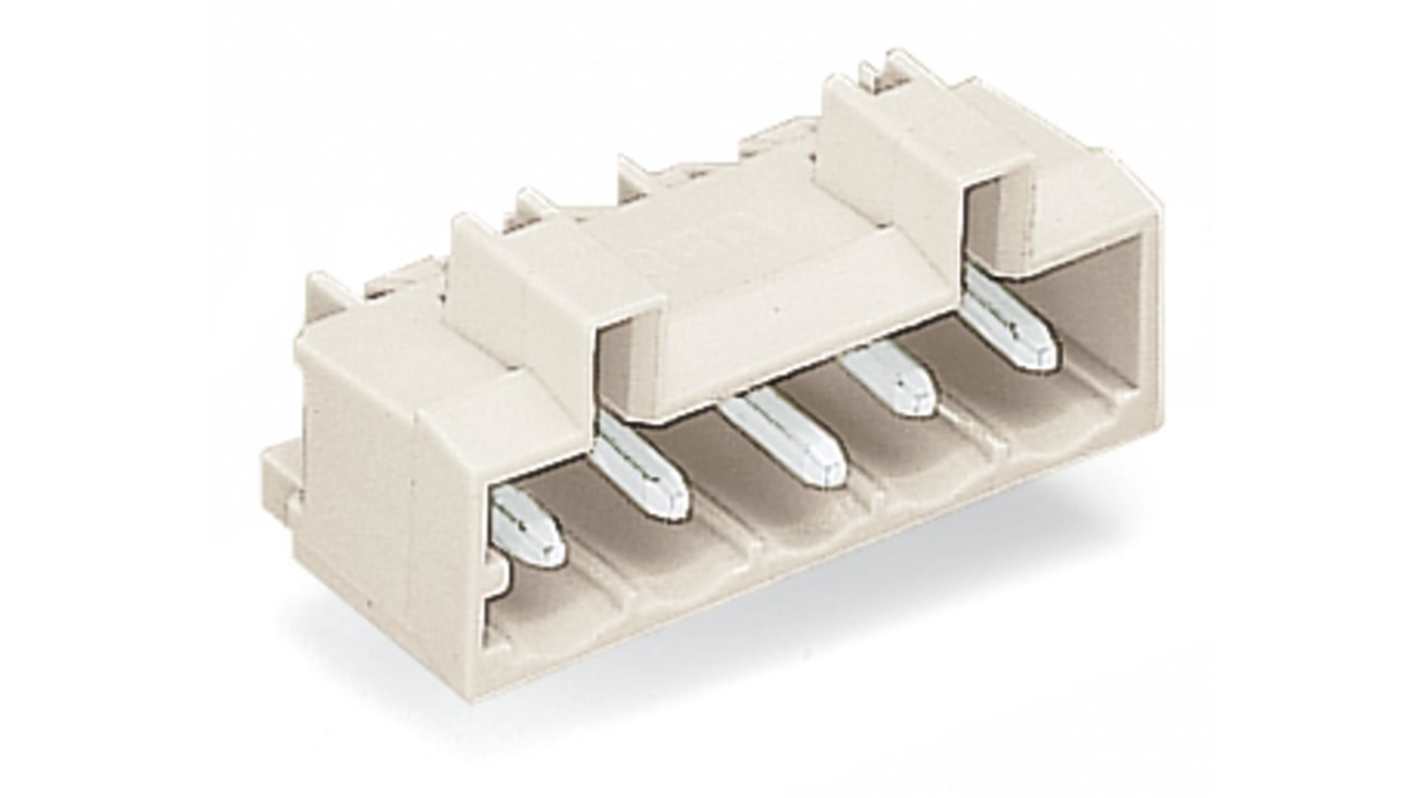

WAGO 721 Series Angled Through Hole Header, 6 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 223-674
- Mfr. Part No.:
- 721-436/001-000
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£142.41
(exc. VAT)
£170.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £142.41 | £1.424 |
*price indicative
- RS Stock No.:
- 223-674
- Mfr. Part No.:
- 721-436/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 721 | |
| Current | 12A | |
| Pitch | 5mm | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Row Pitch | 5mm | |
| Minimum Operating Temperature | 60°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.8mm | |
| Standards/Approvals | RoHS | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 721 | ||
Current 12A | ||
Pitch 5mm | ||
Housing Material Polyamide 66 | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Row Pitch 5mm | ||
Minimum Operating Temperature 60°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Mating Pin Length 3.8mm | ||
Standards/Approvals RoHS | ||
Voltage 32 V | ||
- COO (Country of Origin):
- PL
The Wago THT Male Header is designed to enhance connectivity and reliability in electronic applications, offering a robust solution for various mounting requirements. Crafted for both horizontal and vertical PCB mounting, its angled solder pin configuration ensures optimal space utilisation and compatibility with diverse circuit designs. The product boasts a sophisticated design that protects against mismating, making it ideal for intricate assembly tasks.
Designed for both horizontal and vertical PCB mounting
Made with polyamide for superior thermal performance
Solder pin arrangement optimised for easy installation
Compliant with stringent international safety standards
Suitable for a wide temperature range promoting versatility
Efficient pin spacing allows for compact layouts
Lightweight design aids in reducing overall product weight
