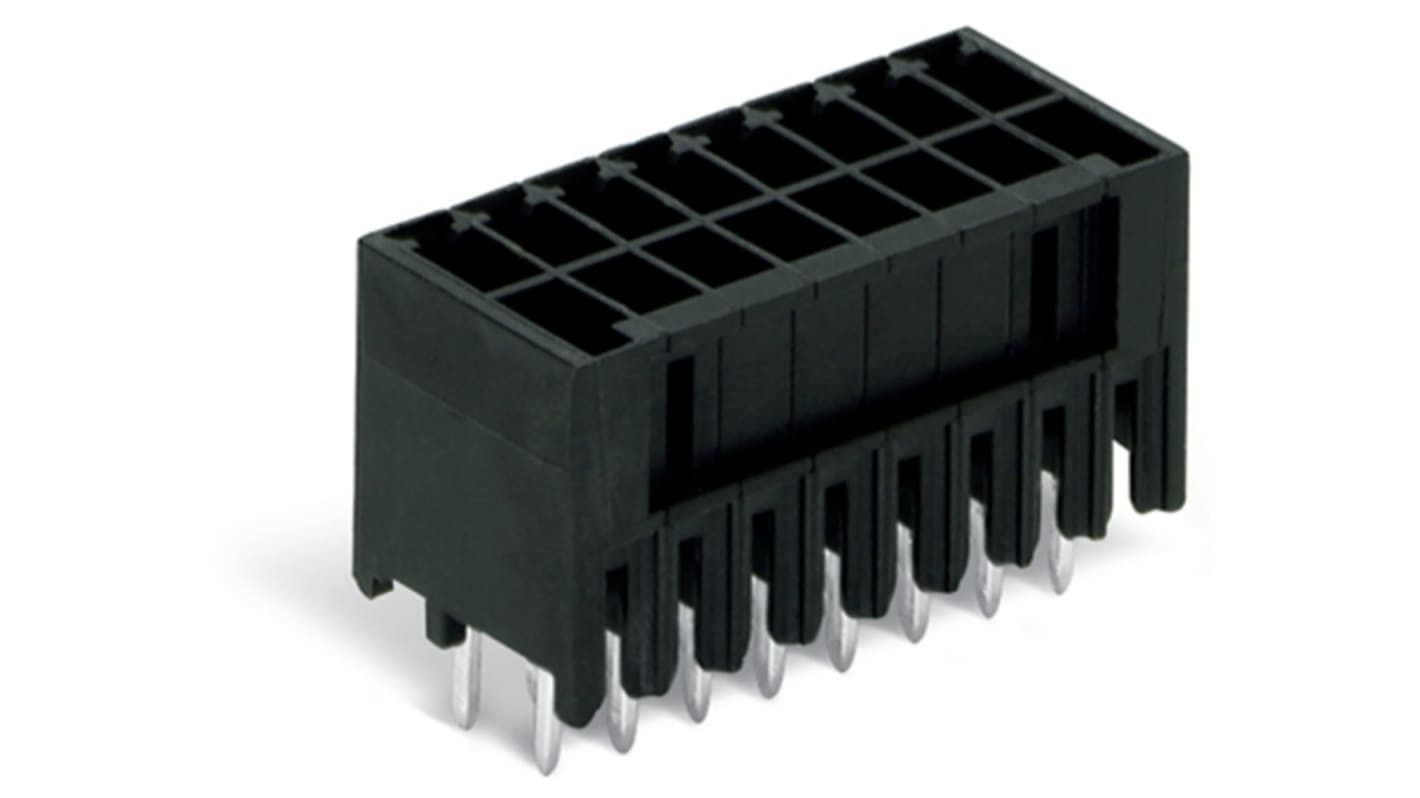

WAGO 713 Series Straight Through Hole Header, 22 Contact(s), 3.5 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 223-589
- Mfr. Part No.:
- 713-1411
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£152.51
(exc. VAT)
£183.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £152.51 | £6.10 |
*price indicative
- RS Stock No.:
- 223-589
- Mfr. Part No.:
- 713-1411
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 713 | |
| Current | 10A | |
| Pitch | 3.5mm | |
| Housing Material | Polyphthalamide | |
| Number of Contacts | 22 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | 60°C | |
| Termination Type | Solder | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Voltage | 25 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 713 | ||
Current 10A | ||
Pitch 3.5mm | ||
Housing Material Polyphthalamide | ||
Number of Contacts 22 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature 60°C | ||
Termination Type Solder | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Voltage 25 V | ||
- COO (Country of Origin):
- PL
The Wago THT Male Header offers a sophisticated solution for reliable connections in electronic applications. Designed with a robust 22 pole configuration, this connector ensures superior protection against mismating and features a 3.5 mm pin spacing, making it versatile for various circuit designs. Its high quality construction meets stringent IEC/EN standards, guaranteeing durability and safety.
Coding options are available for added versatility
Compatible with both through hole and standard integration on PCBs
Engineered to withstand harsh environmental conditions ensuring longevity
Complies with RoHS standards supporting environmentally friendly applications
Offers a comprehensive product range suitable for various connection needs
