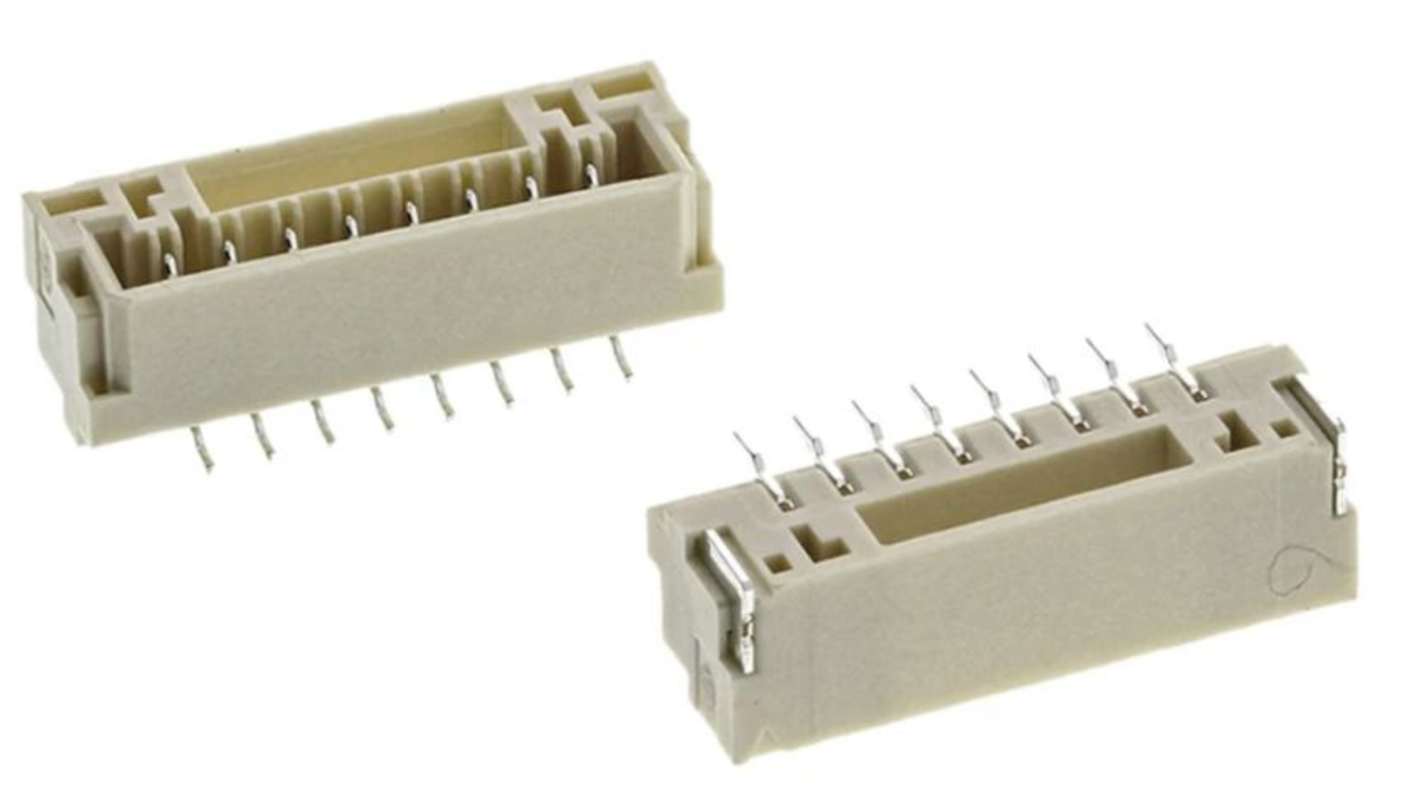

RS PRO Right Angle Surface Mount PCB Header, 8 Contact(s), 1.25mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 bag of 5 units)*

£2.75

(exc. VAT)

£3.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£2.75£0.55
5 - 9£2.53£0.506
10 +£2.29£0.458

*price indicative

RS Stock No.:
147-108
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Pitch

1.25mm

Number of Contacts

8

Number of Rows

1

Body Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mounting Type

Surface Mount

Connector System

Wire to Board

Termination Method

Solder

Contact Plating

Tin Plated

Contact Material

Brass

Current Rating

1A

Voltage Rating

50V

Gender

Male

COO (Country of Origin):
CN

RS PRO 1.25mm Header Top Entry 8 Way, PCB Header


The RS PRO 1.25mm Header Top Entry 8 Way is a reliable PCB header designed for efficient wire-to-board connections. Ideal for use in small electronic equipment such as PDPs and LCDs, this header offers a secure locking structure and low insertion force, ensuring stable and durable connections.

Features and Benefits


1.25 mm pitch: Ensures compact design suitable for small electronics
Voltage Rating: 50V: Supports a range of low-voltage applications
Current Rating: 1.0A: Suitable for low-current applications
Low Mating Force: Facilitates easy and quick connections
Reliable contact: Provides consistent electrical performance
8 Way Top Entry: Offers flexibility in design and application

Applications


Commonly used in PDPs, LCDs, and other small electronic devices where reliable wire-to-board connections are essential.

Additional Information


Contact material is brass with tin plating, enhancing durability and conductivity. The shrouded design and surface mount termination method ensure secure and efficient installation.
