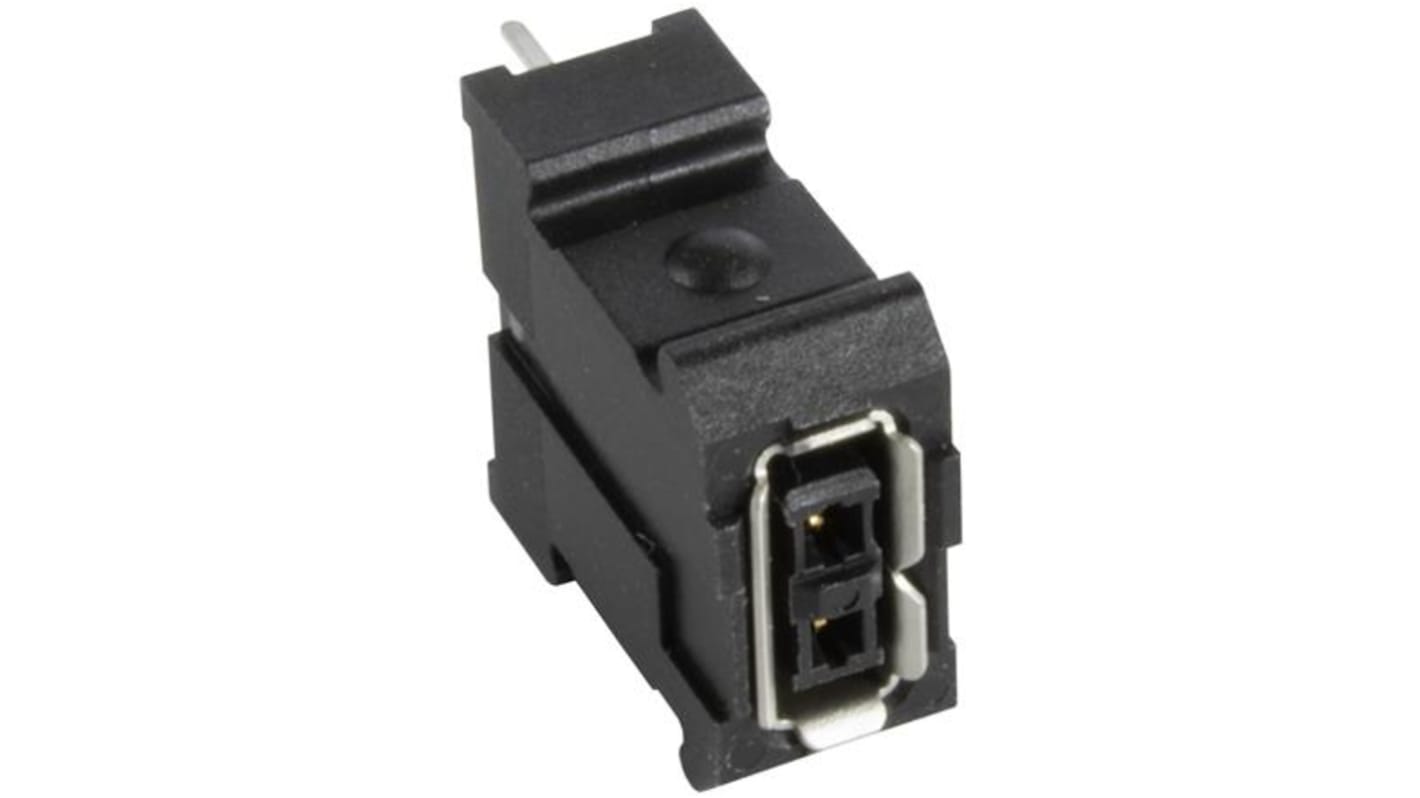

HARTING har-modular Series Straight Through Hole IDC Connector, 2 Contact(s), 2 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 2 units)*

£5.67

(exc. VAT)

£6.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 - 9£5.67£2.835
10 - 24£5.21£2.605
25 +£4.59£2.295

*price indicative

RS Stock No.:
146-291
Mfr. Part No.:
02529021501
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Series

har-modular

Number of Contacts

2

Number of Rows

2

Body Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mounting Type

Through Hole

COO (Country of Origin):
RO

har-modular D2 datamod female 3 mm


The Harting Data Module features solder termination for secure and stable connections. It is fully shielded with 360° shielding contact, ensuring minimal interference. The connection type is designed for motherboard to daughtercard applications. It supports data rates of 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 5 Gbit/s, 10 Gbit/s, and 25 Gbit/s. The module operates within a temperature range of 55°C to +125°C and requires an insertion and withdrawal force of 10 N, ensuring a secure and durable connection.

Polyamide construction
Copper alloy contacts
RoHS compliant
2 signal contacts
5.08 mm width
Capable for 10GBASE-KR Ethernet and SPE or Profibus
2.9 mm solder pins
