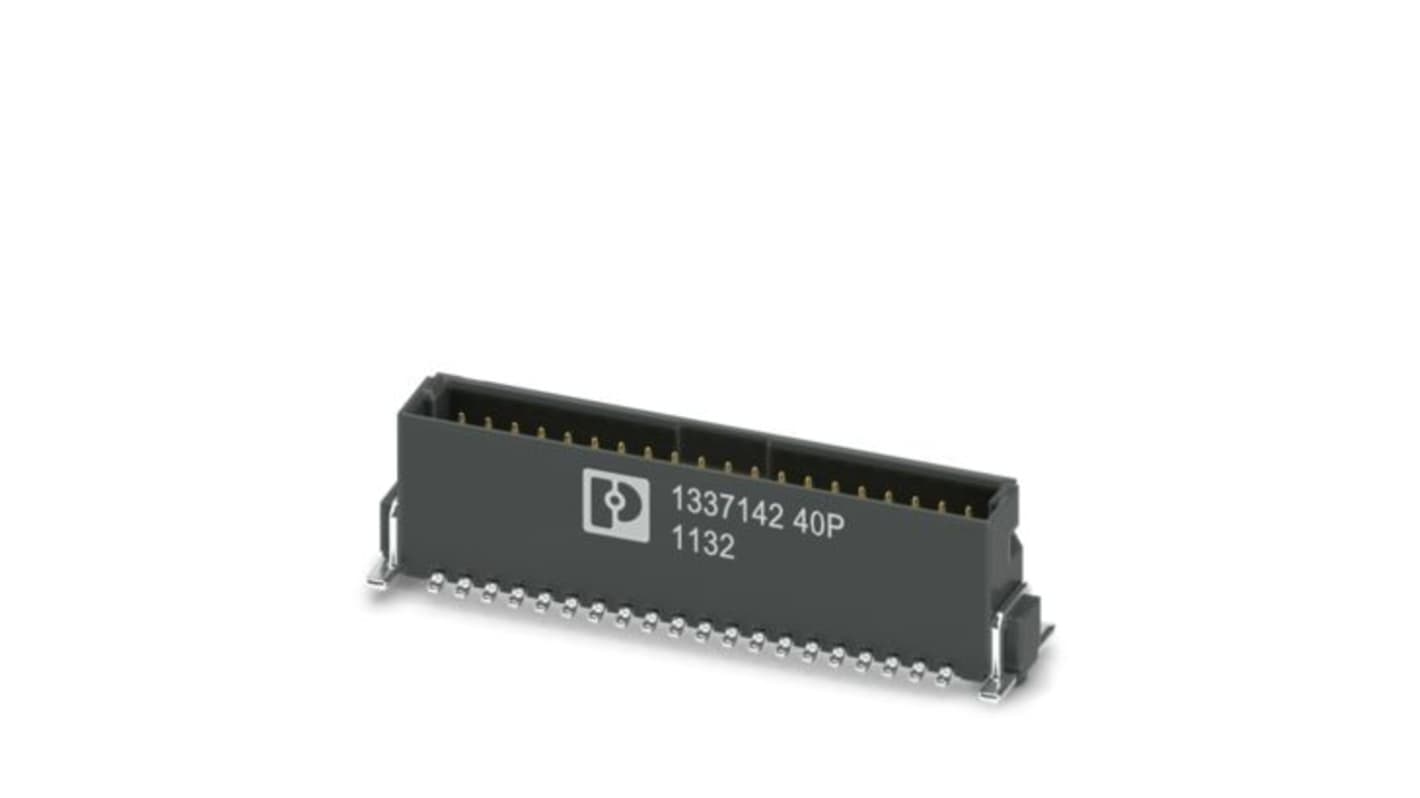

Phoenix Contact Connector Kit Containing SMD Male Connectors
- RS Stock No.:
- 557-722
- Mfr. Part No.:
- 1337142
- Brand:
- Phoenix Contact
Subtotal (1 pack of 280 units)*
£774.70
(exc. VAT)
£929.64
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £774.70 | £2.767 |
*price indicative
- RS Stock No.:
- 557-722
- Mfr. Part No.:
- 1337142
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Kit Type | Connector Kit | |
| Product Type | PCB Connector Kit | |
| Kit Contents | SMD Male Connectors | |
| Standards/Approvals | IEC 60112, cUL Recognised Approval ID: E118976-20230317, RoHS, IEC 60068-2-82/JEDEC JESD 201, REACH, UL 94 V0, CHINA RoHS, DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07, IEC 60512-4-1:2003-05, IEC 60512-5-2:2002-02, UL Recognised Approval ID: E118976-20230317 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Kit Type Connector Kit | ||
Product Type PCB Connector Kit | ||
Kit Contents SMD Male Connectors | ||
Standards/Approvals IEC 60112, cUL Recognised Approval ID: E118976-20230317, RoHS, IEC 60068-2-82/JEDEC JESD 201, REACH, UL 94 V0, CHINA RoHS, DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07, IEC 60512-4-1:2003-05, IEC 60512-5-2:2002-02, UL Recognised Approval ID: E118976-20230317 | ||
The Phoenix Contact SMD male connector is designed to support high-speed data transmission, maximising design flexibility for your electronic projects. With a nominal current of 2.2 A and a robust build featuring a pitch of just 1.27 mm, this connector ensures reliable connections in space-constrained environments. Its dual-row configuration and linear pad geometry facilitate precise alignment on PCBs, making installation straightforward. Enhanced with gold plating for superior signal integrity, this connector guarantees long-lasting performance under various operational conditions. Whether for board-to-board or wire-to-board applications, it represents a perfect integration of versatility and efficiency, catering to modern technological demands. Your design possibilities are expanded with features designed to streamline the development process and ensure data integrity in high-speed applications.
Offers high-speed data transmission rates of up to 12 Gbps
Constructed to support currents up to 2.2 A
Designed with a linear pad geometry for easy PCB integration
Gold-plated contacts provide durable and stable connections
Accommodates varying numbers of positions from 6 to 100
Soldering processes are simplified with guidelines for reflow soldering
Features a moisture-sensitive level rating of MSL 1 for assembly considerations
Complies with WEEE/RoHS directives, ensuring compliance with environmental standards
