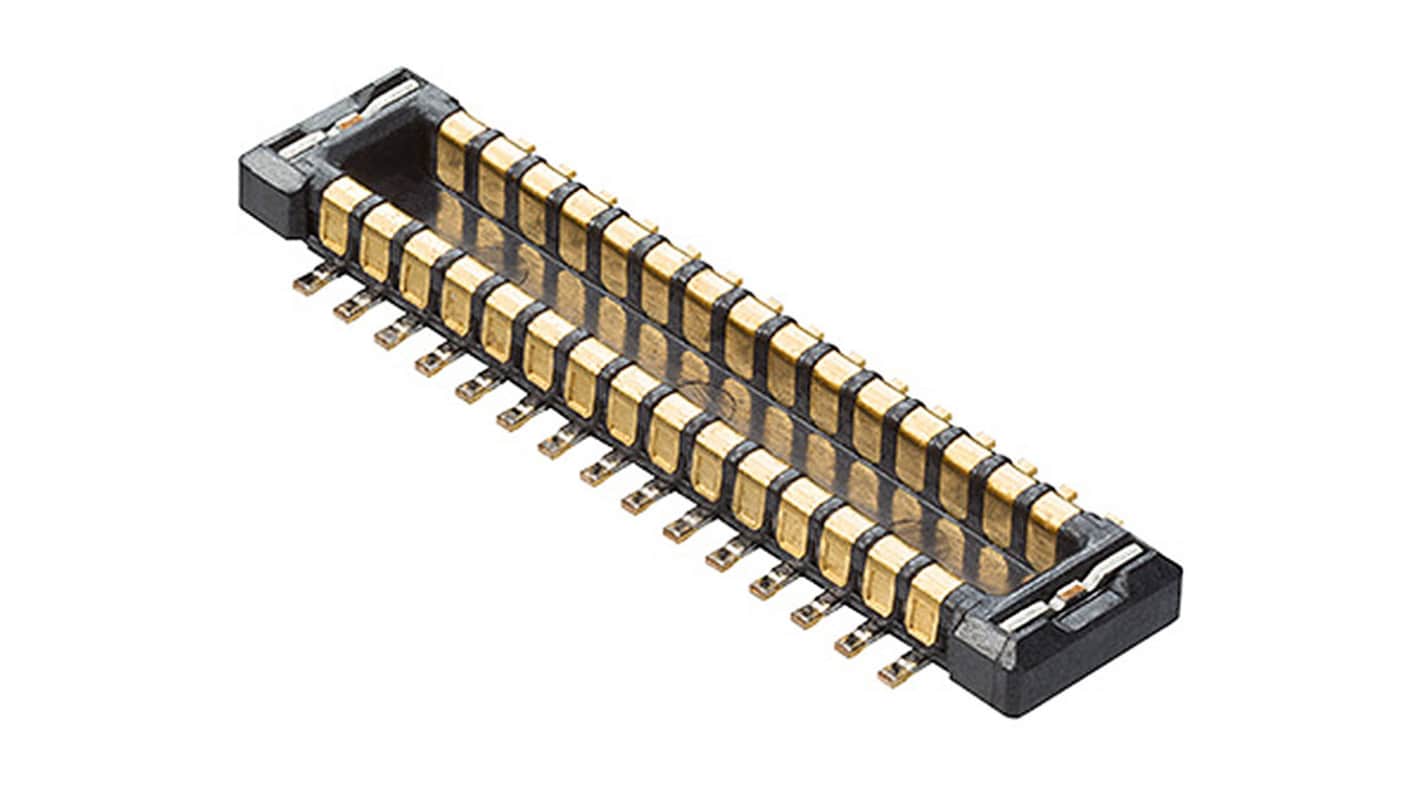

Molex Plug for use with SlimStack
- RS Stock No.:
- 520-520
- Distrelec Article No.:
- 304-62-474
- Mfr. Part No.:
- 505551-1020
- Brand:
- Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 520-520
- Distrelec Article No.:
- 304-62-474
- Mfr. Part No.:
- 505551-1020
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Accessory Type | Plug | |
| For Use With | SlimStack | |
| Colour | Black | |
| Material | Gold, LCP, Copper Alloy | |
| Standards/Approvals | No | |
| Series | 505551 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Accessory Type Plug | ||
For Use With SlimStack | ||
Colour Black | ||
Material Gold, LCP, Copper Alloy | ||
Standards/Approvals No | ||
Series 505551 | ||
- COO (Country of Origin):
- JP
The Molex board-to-board connector offers exceptional performance with a 0.40mm pitch, designed specifically for reliable and efficient connection in high-density applications. Its unique design features an optimised mated height of just 0.80mm, Ideal for tight spaces, while the dual-row configuration ensures a Compact footprint without compromising connectivity options. Built with premium materials like liquid crystal polymer and gold plating, this connector guarantees durability and longevity, even under rigorous conditions.
Durable copper alloy construction ensures long-lasting reliability
Surface mount termination style caters to modern PCB assembly techniques
Vertical orientation allows for efficient space utilisation on boards
Mated height is optimised for high-density applications
Embossed tape on reel packaging simplifies handling and assembly processes
Supports maximum current of 0.3A for enhanced power transmission
Conforms to various compliance standards, including EU RoHS and REACH
Low-halogen design promotes eco-friendly usage without compromising performance
