RS PRO Panel Printer 76 mm 80 mm

View all Panel Printers

Subtotal (1 unit)*

£125.76

(exc. VAT)

£150.91

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£125.76

*price indicative

RS Stock No.:
178-5732
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Panel Printer

Paper Width

58mm

Cutout Height

76mm

Cutout Width

80mm

Standards/Approvals

RoHS

COO (Country of Origin):
CN

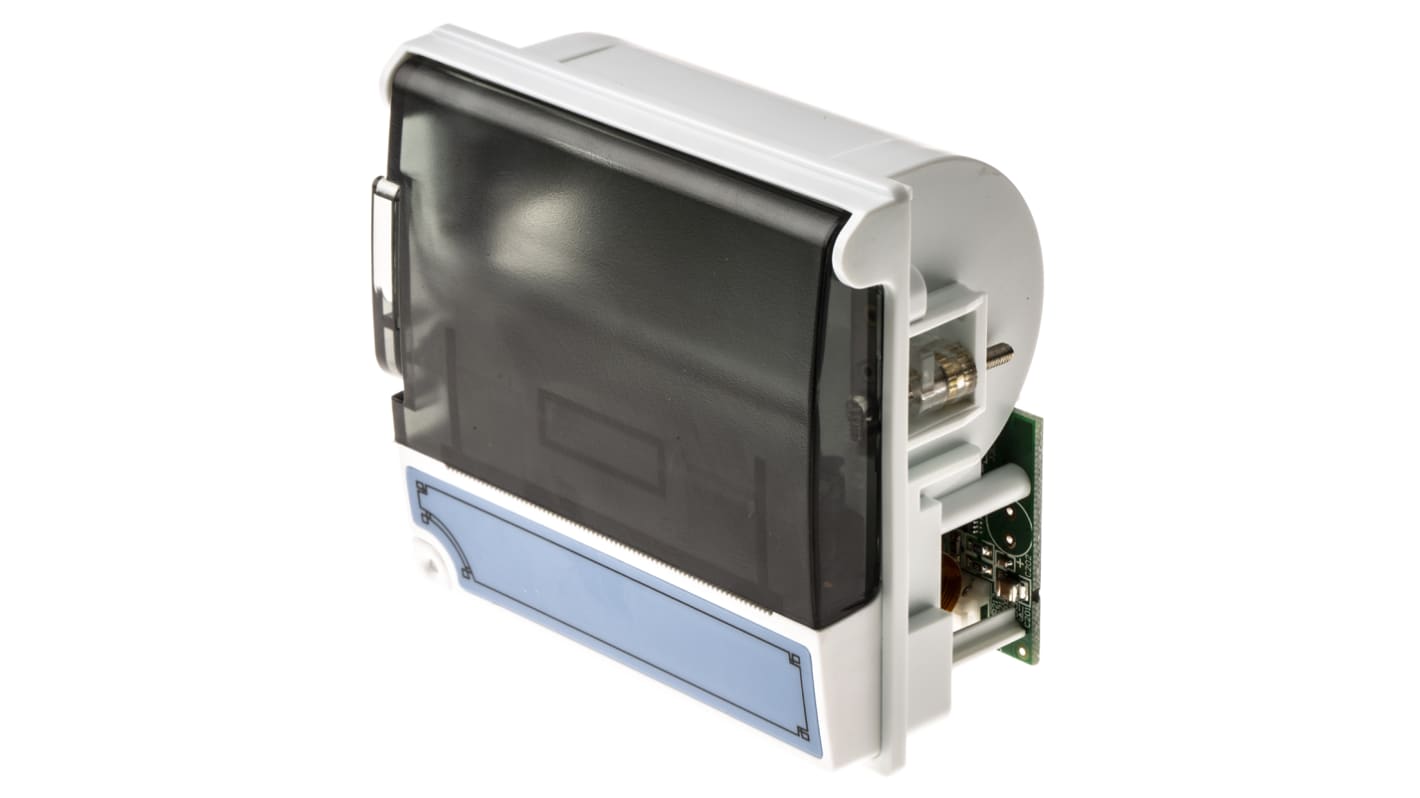

RS PRO Thermal Line Panel Printer


This RS PRO panel mount printer is compact fixed head thermal line panel printer with a very shallow behind-panel depth. The transparent front paper cover gives visual indication of paper roll level. It has an electrical rating of 5.0VDC to 8.5VDC and 2A. RS232 Interface.

This printer has a resolution of 8dpmm (203dpi) with 384 dots per line. The effective printing width is 48mm.

Features and Benefits

Simple drop-in easy paper loading for operational efficiency.

Data input is RS-232 serial.

Self-test function

Compact dimensions; Height 80mm, width 75mm, depth 45mm

Paper width is 57.5mm (max)

High performance thermal printer mechanisms ensure fast, reliable printing.

Reliable long life expectancy with MCBF 5∼15 x 106.

Easily embedded into many devices.

Applications
Receipt printing
Medical equipment
Taxi Meter
Industrial Instruments
Portable printers and terminals
Test and measurement instruments
Ticket printing.
