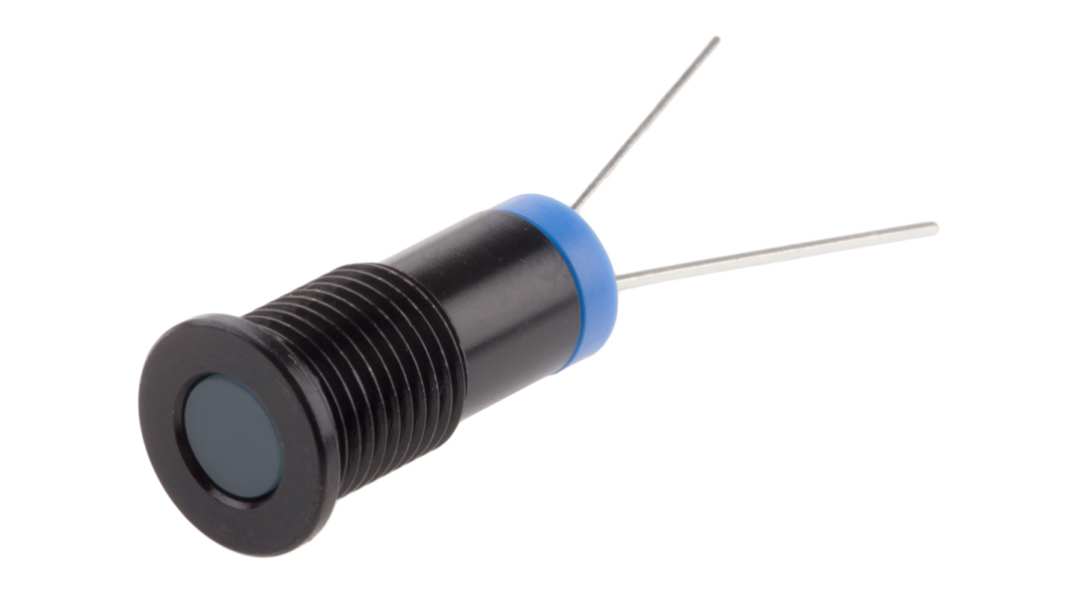

RS PRO Blue Panel Mount Indicator, 2V dc, 8mm Mounting Hole Size, IP67
- RS Stock No.:
- 700-1726
- Brand:
- RS PRO
1314 In stock - FREE next working day delivery available
Added
Price Each
£5.46
(exc. VAT)
£6.55
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £5.46 |
| 15 - 24 | £4.93 |
| 25 - 49 | £4.47 |
| 50 - 99 | £4.03 |
| 100 + | £3.59 |
- RS Stock No.:
- 700-1726
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LED Indicators, 8mm Mount, Flush Bezel
Brought to you under the trusted RS Brand, these LED indicators have diffused epoxy lenses and a flush chrome bezel. The body features lead pin termination and is sealed to an ingress protection of IP67, assuring suitability for use in harsh environments and even outdoor applications. LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.
Features and Benefits:
• 5mm coloured diffused epoxy lens
• Maximum panel thickness 7mm
• Sealed to IP67
• Life expectancy of 10000h
• Maximum panel thickness 7mm
• Sealed to IP67
• Life expectancy of 10000h
Approvals
UL
Supplied with
fixing nut, spring washer
Specifications
Attribute | Value |
|---|---|
| Voltage Rating | 2V dc |
| Light Output Colour | Blue |
| Mounting Hole Size | 8mm |
| Lamp Type | LED |
| IP Rating | IP67 |
| Bezel Style | Flush |
| Current Rating | 20mA |
| Intensity | 4mcd |
| Length | 17.6mm |
