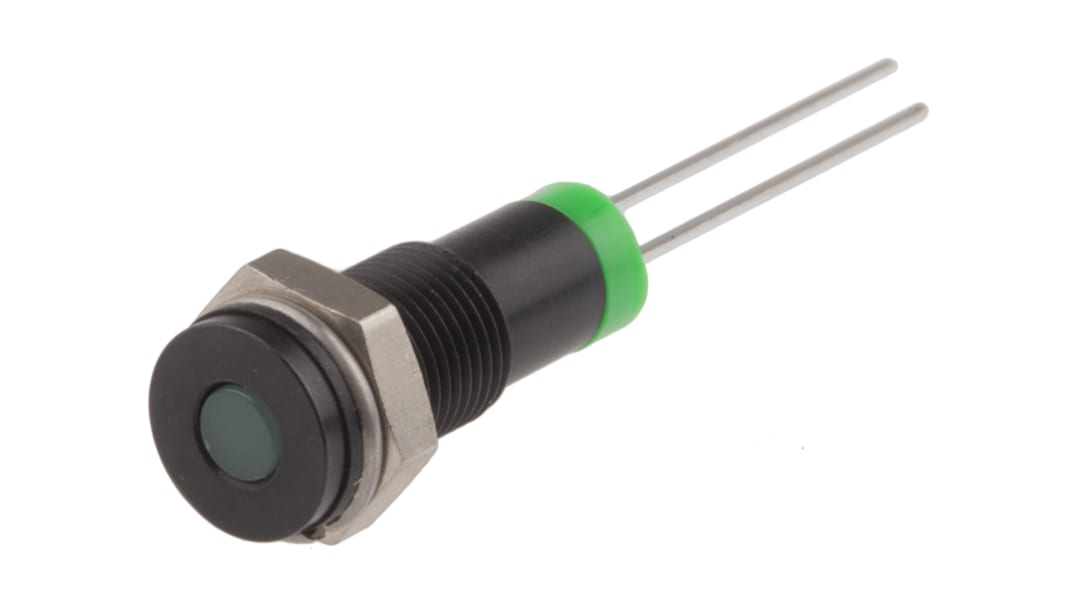

RS PRO Green Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, IP67
- RS Stock No.:
- 700-1596
- Brand:
- RS PRO
212 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£3.91
(exc. VAT)
£4.69
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £3.91 |
| 25 - 49 | £3.52 |
| 50 - 99 | £3.09 |
| 100 - 249 | £2.66 |
| 250 + | £2.27 |
- RS Stock No.:
- 700-1596
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LED Indicators, 6mm Mount, Flush Bezel
Brought to you under the trusted RS Brand, these LED indicators have diffused epoxy lenses and a flush chrome bezel. The indicator is sealed to an ingress protection of IP67, assuring suitability for use in harsh environments and even outdoor applications. These RS Brand LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.
Features and Benefits:
• 3mm coloured diffused epoxy lens
• Maximum panel thickness 7mm
• Lead pin or solder lug termination
• Sealed to IP67
• 100000h life expectancy
• Maximum panel thickness 7mm
• Lead pin or solder lug termination
• Sealed to IP67
• 100000h life expectancy
Approvals
UL
Supplied with
Fixing nut, spring washer and rubber gasket.
Specifications
Attribute | Value |
|---|---|
| Voltage Rating | 2V dc |
| Light Output Colour | Green |
| Mounting Hole Size | 6mm |
| Lamp Type | LED |
| Lamp Size | 3 mm |
| IP Rating | IP67 |
| Bezel Style | Flush |
| Current Rating | 20mA |
| Intensity | 8mcd |
| Length | 15.9mm |
