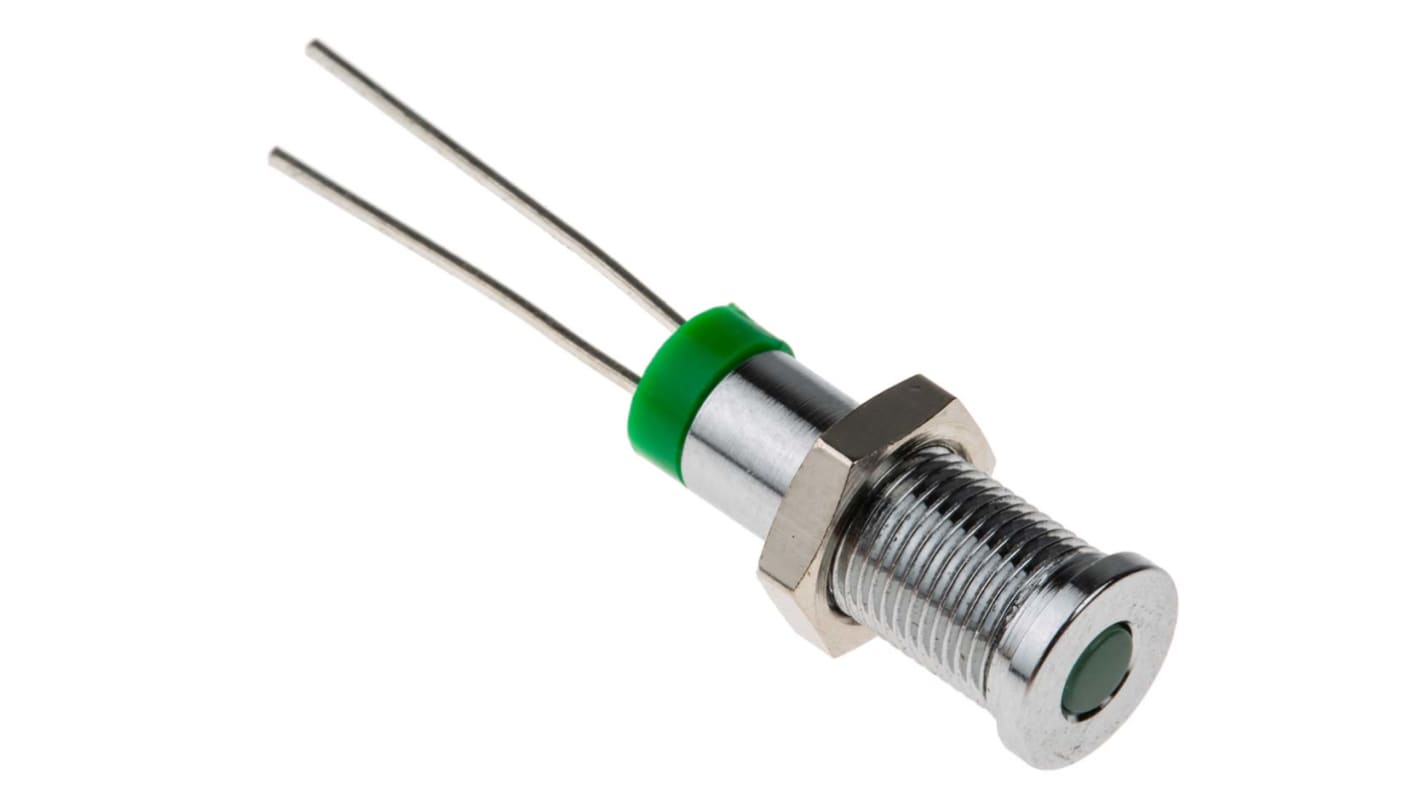

RS PRO Green Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, IP67
- RS Stock No.:
- 700-1546
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£4.15
(exc. VAT)
£4.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 408 unit(s) shipping from 02 October 2025
- Plus 84 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 14 | £4.15 |
15 - 49 | £3.85 |
50 - 99 | £3.32 |
100 - 249 | £3.20 |
250 + | £2.91 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.15
(exc. VAT)
£4.98
(inc. VAT)
- RS Stock No.:
- 700-1546
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Voltage Rating | 2V dc | |
Light Output Colour | Green | |
Mounting Hole Size | 6mm | |
Lamp Type | LED | |
Lamp Size | 3 mm | |
IP Rating | IP67 | |
Bezel Style | Flush | |
Bezel Colour | Chrome | |
Current Rating | 20mA | |
Intensity | 8mcd | |
Length | 15.9mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Voltage Rating 2V dc | ||
Light Output Colour Green | ||
Mounting Hole Size 6mm | ||
Lamp Type LED | ||
Lamp Size 3 mm | ||
IP Rating IP67 | ||
Bezel Style Flush | ||
Bezel Colour Chrome | ||
Current Rating 20mA | ||
Intensity 8mcd | ||
Length 15.9mm | ||
- COO (Country of Origin):
- GB
RS PRO Green Indicator, 2 V dc, 6 mm Mounting Hole Size, Lead Pins Termination, IP67
Need a waterproof LED indicator for use outdoors or in an industrial environment? This 2 V dc green lamp from the RS PRO range is sealed to IP67 standard, so it'll keep out water when submerged under a metre of water for half an hour. This makes it suitable for a variety of applications in fields ranging from medicine to agriculture.
Offering a high level of brightness for low power consumption, the lamp can deliver 8 mcd for 100,000 hours before it needs replacing. Its 3-mm lens is mounted in a chrome bezel, suitable for fitting in a 6-mm hole in panels up to 7 mm thick. The coloured diffused epoxy lens offers wide-angle viewing.
The indicator conforms to UL standards, ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 (electrostatic discharge) and RoHS (hazardous substances). You'll find that it's also supplied with a fixing nut, spring washer and rubber gasket.
Offering a high level of brightness for low power consumption, the lamp can deliver 8 mcd for 100,000 hours before it needs replacing. Its 3-mm lens is mounted in a chrome bezel, suitable for fitting in a 6-mm hole in panels up to 7 mm thick. The coloured diffused epoxy lens offers wide-angle viewing.
The indicator conforms to UL standards, ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 (electrostatic discharge) and RoHS (hazardous substances). You'll find that it's also supplied with a fixing nut, spring washer and rubber gasket.
Features and Benefits
• Green indicator light
• Waterproof rating IP67
• Lead pin terminations
• Intensity of 8 mcd
• Voltage rating of 2 V dc
• Chrome flush bezel
• Length of 15.9 mm
• Diameter of 3 mm
• Panel mounting
• Mounting hole size of 6 mm
• Maximum panel thickness of 7 mm
• Conforms to UL standards
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 on electrostatic discharge
• Compliant with RoHS on hazardous substances
• Waterproof rating IP67
• Lead pin terminations
• Intensity of 8 mcd
• Voltage rating of 2 V dc
• Chrome flush bezel
• Length of 15.9 mm
• Diameter of 3 mm
• Panel mounting
• Mounting hole size of 6 mm
• Maximum panel thickness of 7 mm
• Conforms to UL standards
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 on electrostatic discharge
• Compliant with RoHS on hazardous substances
