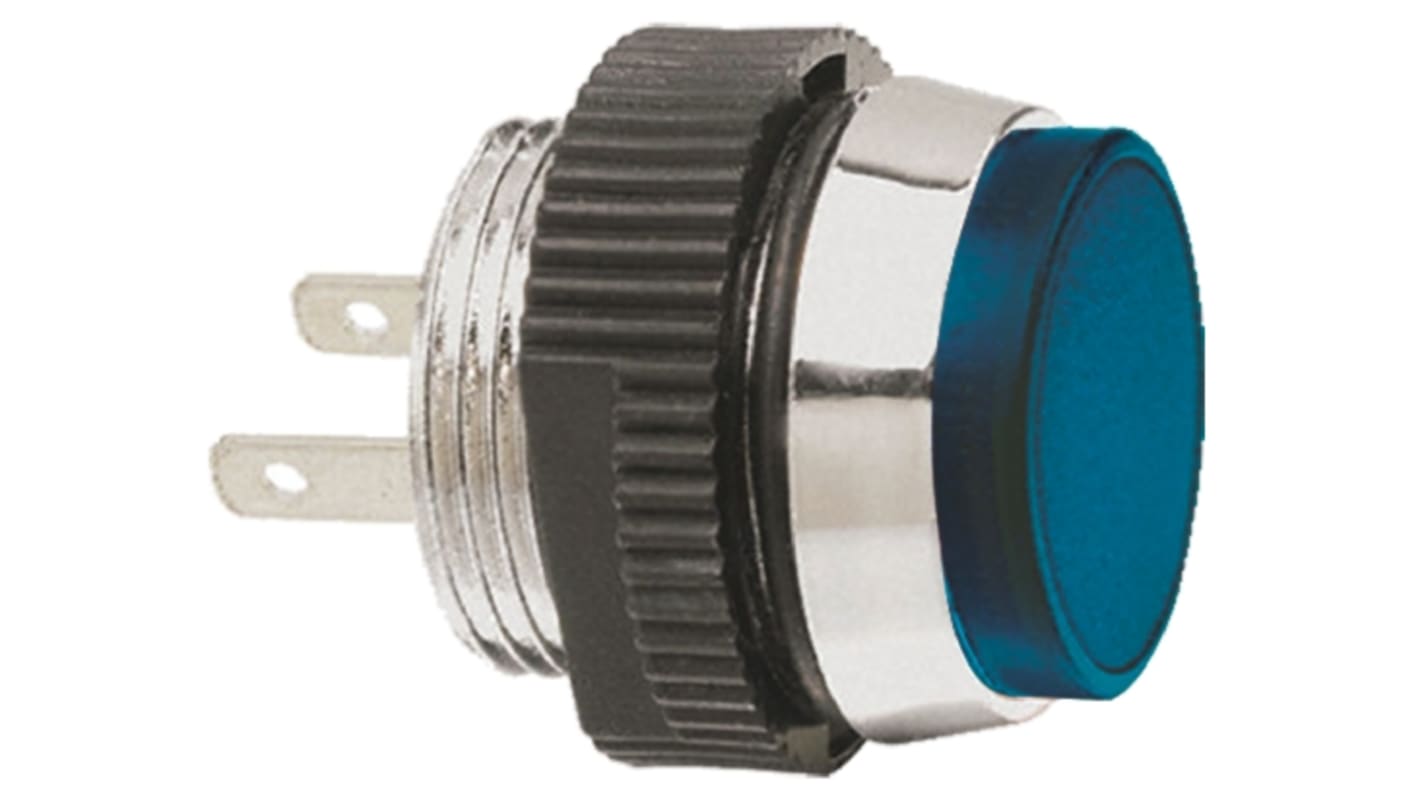

Signal Construct Blue Panel Mount Indicator, 24 → 28V, 16mm Mounting Hole Size, IP67

RS Stock No.:: 507-2476
Mfr. Part No.:: SKCD 16414
Brand:: Signal Construct

Signal Construct Blue Panel Mount Indicator, 24 → 28V, 16mm Mounting Hole Size, IP67

19 In stock - FREE next working day delivery available

Added

Price Each

£12.97

(exc. VAT)

£15.56

(inc. VAT)

Units	Per unit
1 - 9	£12.97
10 - 24	£11.84
25 - 49	£10.77
50 - 99	£9.71
100 +	£9.39

RS Stock No.:: 507-2476
Mfr. Part No.:: SKCD 16414
Brand:: Signal Construct

Technical Reference

LED Signal Lamp 16mm IP67 Data Sheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

LED Indicators, 16mm Mount, 12 & 24Vdc

Large 16mm coloured diffused flat lens
19mm Bright chrome metallised bezel
12-14 and 24-28Vd.c. types
110 (2.8x0.5mm) terminals
Sealed to IP67
Operating Temperature Range: -30 to +70°C
Viewing Angle: 180°
Mounting Hole Size: 16mm to 16.2mm Dia.

Note

Anode marked on base of indicator housing.

Supplied with

Sealing washer and circular knurled fixing nut.

Specifications

Attribute	Value
Voltage Rating	24 → 28V
Light Output Colour	Blue
Mounting Hole Size	16mm
Lamp Type	LED
IP Rating	IP67
Bezel Style	Prominent
Bezel Colour	Chrome
Current Rating	20mA
Length	19.1mm
