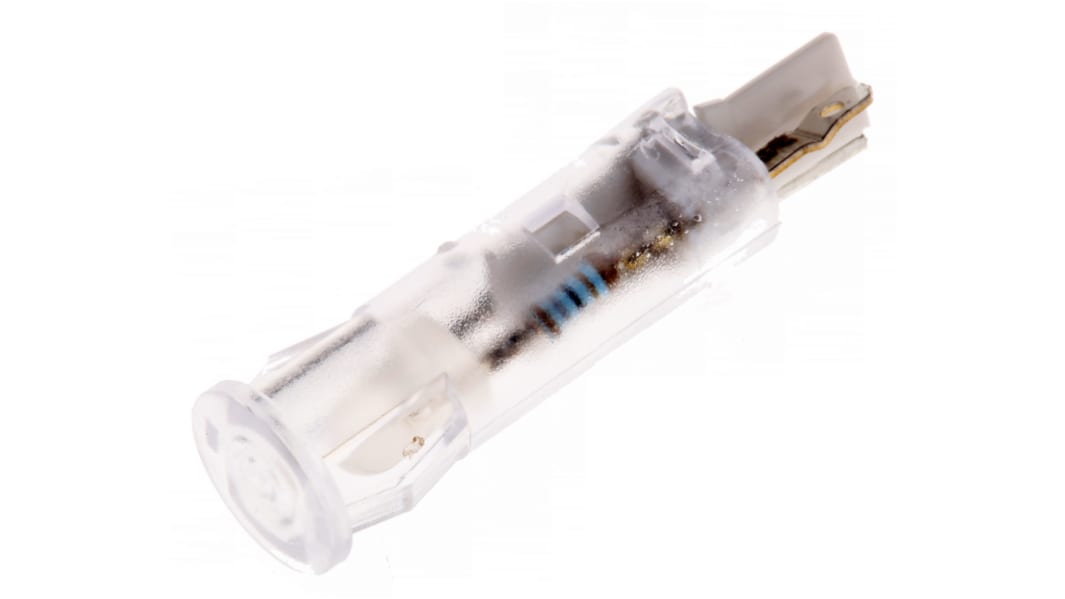

Signal Construct Green, Red Indicator, 24 → 28V, 6mm Mounting Hole Size, Solder Tab Termination

RS Stock No.:: 369-3380
Mfr. Part No.:: SKGE06204
Brand:: Signal Construct

Signal Construct Green, Red Indicator, 24 → 28V, 6mm Mounting Hole Size, Solder Tab Termination

328 In stock - FREE next working day delivery available

20 available from Europe for delivery within 1 working day(s).

Added

Price Each

£6.62

(exc. VAT)

£7.94

(inc. VAT)

Units	Per unit
1 - 24	£6.62
25 - 49	£5.96
50 - 99	£5.58
100 - 249	£5.17
250 +	£4.61

RS Stock No.:: 369-3380
Mfr. Part No.:: SKGE06204
Brand:: Signal Construct

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

LED Indicators, 6mm Mounting, 12 & 24Vdc

Snap-in fixing, requires no additional hardware
7mm coloured diffused low profile super-flat polycarbonate fresnel lens
Tri-colour contains a red and a green LED, when both are on yellow is produced
Solder lug connections
Tri-colour types have pins for connections (longest pin cathode)

Specifications

Attribute	Value
Voltage Rating	24 → 28V
Light Output Colour	Green, Red
Mounting Hole Size	6mm
Lamp Type	LED
Lamp Size	3 mm
Termination Type	Solder Tab
Bezel Style	Flush
Current Rating	10mA
Length	26.3mm

RS Stock No.:: 369-3380
Mfr. Part No.:: SKGE06204
Brand:: Signal Construct

Signal Construct Green, Red Indicator, 24 → 28V, 6mm Mounting Hole Size, Solder Tab Termination

Technical Reference

Legislation and Compliance

Product Details

LED Indicators, 6mm Mounting, 12 & 24Vdc

Specifications

LED Indicators, 6mm Mounting, 12 & 24Vdc
