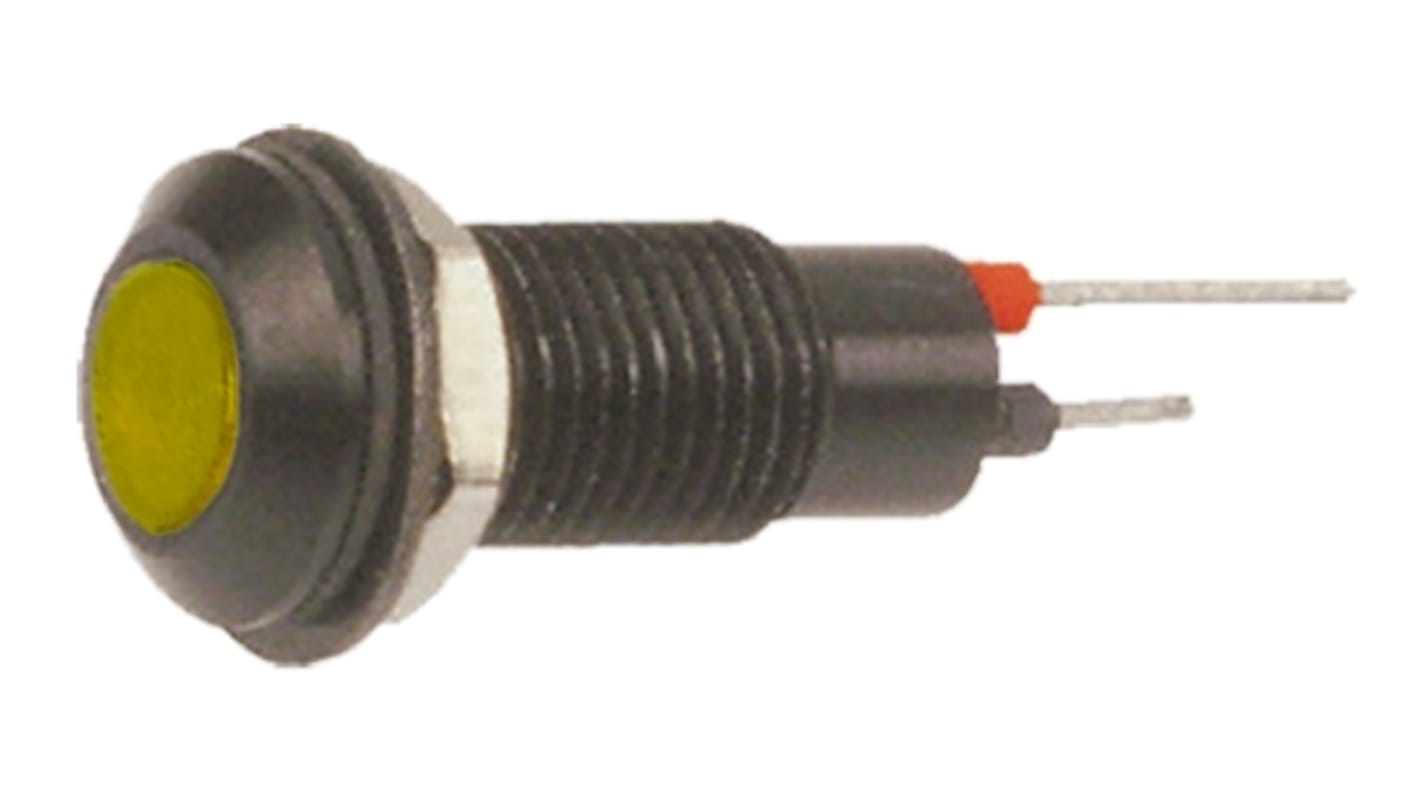

Marl, Yellow Panel Mount Indicator, Solder Tab Termination 24V dc, IP67, 6.4 mm
- RS Stock No.:
- 296-9276
- Mfr. Part No.:
- 612-325-22
- Brand:
- Marl
Subtotal (1 unit)*
£12.86
(exc. VAT)
£15.43
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 20 unit(s) shipping from 24 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.86 |
*price indicative
- RS Stock No.:
- 296-9276
- Mfr. Part No.:
- 612-325-22
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marl | |
| LED Colour | Yellow | |
| Product Type | Panel Mount Indicator | |
| Terminal Type | Solder Tab | |
| Maximum Supply Voltage | 24 V dc | |
| IP Rating | IP67 | |
| Mount Hole Size | 6.4 mm | |
| Length | 27.2 mm | |
| Maximum Forward Current | 20 mA | |
| Multicolour/Single Colour | Single Colour | |
| Standards/Approvals | CE, UKCA, RoHS | |
| Select all | ||
|---|---|---|
Brand Marl | ||
LED Colour Yellow | ||
Product Type Panel Mount Indicator | ||
Terminal Type Solder Tab | ||
Maximum Supply Voltage 24 V dc | ||
IP Rating IP67 | ||
Mount Hole Size 6.4 mm | ||
Length 27.2 mm | ||
Maximum Forward Current 20 mA | ||
Multicolour/Single Colour Single Colour | ||
Standards/Approvals CE, UKCA, RoHS | ||
- COO (Country of Origin):
- GB
LED Indicator, 6.35mm Mount, 612 Series
5.1mm high contrast smoked polycarbonate lens
9mm low profile bezel black anodised aluminium housing
Sealed to IP67
Sunlight viewable
Fully internally potted
Shock and vibration resistant
Crimp available separately (stock no. 321-2773)
Supplied with
sealing washer, fixing nut, lock washer
