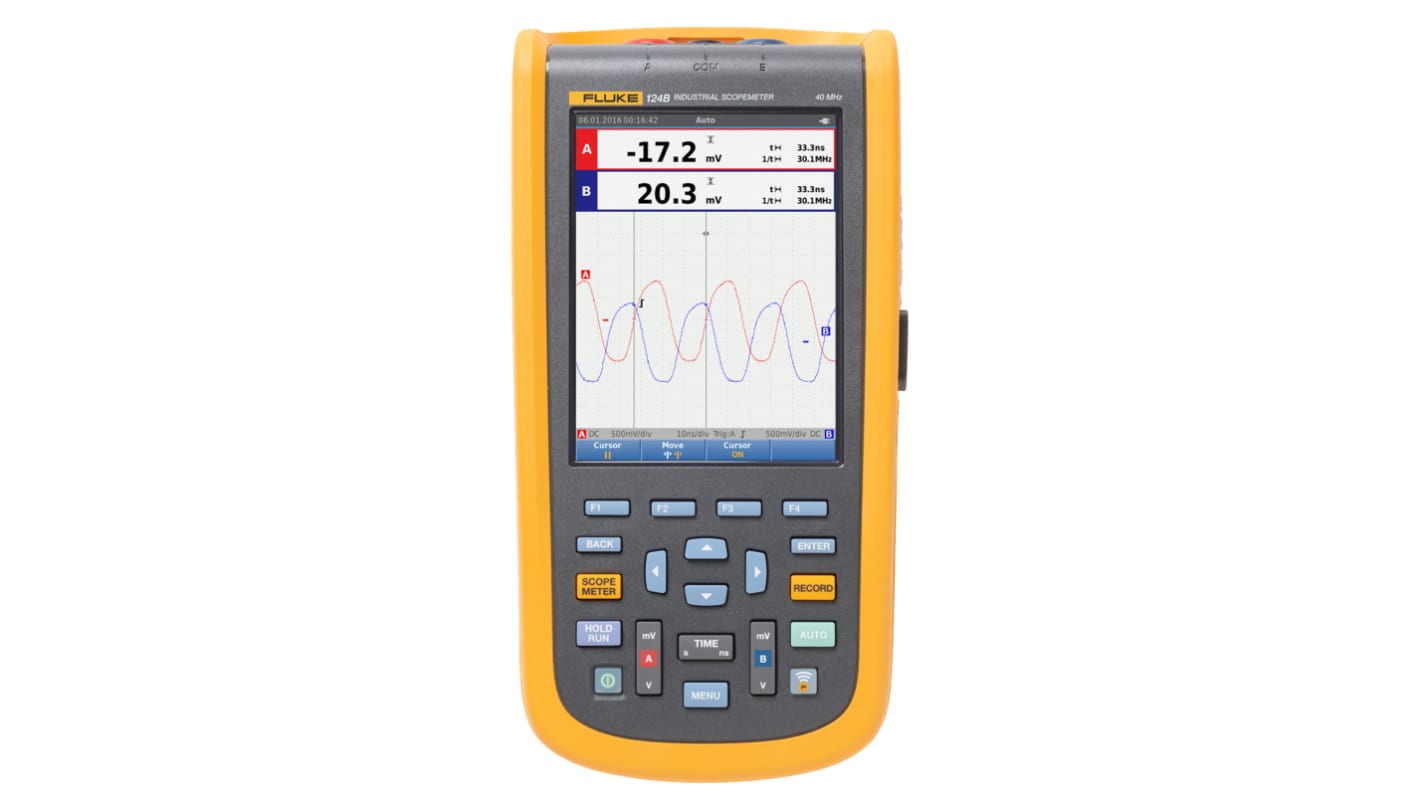

Fluke 124B ScopeMeter 120B Series, 40MHz Handheld Oscilloscope, 2 Analogue Channels, 2 Digital Channels - RS Calibrated
- RS Stock No.:
- 919-6778
- Mfr. Part No.:
- FLUKE-124B/UK
- Brand:
- Fluke
Subtotal (1 unit)*
£2,508.83
(exc. VAT)
£3,010.60
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) shipping from 24 October 2025
- Plus 999,999,996 unit(s) shipping from 15 January 2026
Units | Per unit |
---|---|
1 + | £2,508.83 |
*price indicative
- RS Stock No.:
- 919-6778
- Mfr. Part No.:
- FLUKE-124B/UK
- Brand:
- Fluke
Select all | Attribute | Value |
---|---|---|
Brand | Fluke | |
Bandwidth | 40MHz | |
Number of Analogue Channels | 2 | |
Number of Digital Channels | 2 | |
Oscilloscope Type | Handheld | |
Calibrated | RSCAL | |
Interface | CAN, RS232, RS422, RS485, USB | |
Oscilloscope Form | Digital Storage | |
Sample Rate Random | 400 Ksps | |
Screen Size | 5.7in | |
Series | 120B | |
Record Length | 2M points/ch | |
Maximum Vertical Sensitivity | 200V/div | |
Power Source | Battery | |
Digital/Analogue | Digital | |
Dimensions | 259 x 132 x 55mm | |
Weight | 1.4kg | |
Minimum Vertical Sensitivity | 5mV | |
Plug Type | UK | |
Input Impedance | 1 mΩ | |
Minimum Time Base | 10ns | |
Maximum Time Base | 500ns/div | |
Battery Type | Li-ion | |
Safety Category Voltage | 600 V, 750 V | |
Safety Category Level | CAT III, CAT IV | |
Safety Category | CAT III 750 V, CAT IV 600V | |
Rise Time | <8.75ns | |
Battery Life | 7 h | |
Select all | ||
---|---|---|
Brand Fluke | ||
Bandwidth 40MHz | ||
Number of Analogue Channels 2 | ||
Number of Digital Channels 2 | ||
Oscilloscope Type Handheld | ||
Calibrated RSCAL | ||
Interface CAN, RS232, RS422, RS485, USB | ||
Oscilloscope Form Digital Storage | ||
Sample Rate Random 400 Ksps | ||
Screen Size 5.7in | ||
Series 120B | ||
Record Length 2M points/ch | ||
Maximum Vertical Sensitivity 200V/div | ||
Power Source Battery | ||
Digital/Analogue Digital | ||
Dimensions 259 x 132 x 55mm | ||
Weight 1.4kg | ||
Minimum Vertical Sensitivity 5mV | ||
Plug Type UK | ||
Input Impedance 1 mΩ | ||
Minimum Time Base 10ns | ||
Maximum Time Base 500ns/div | ||
Battery Type Li-ion | ||
Safety Category Voltage 600 V, 750 V | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category CAT III 750 V, CAT IV 600V | ||
Rise Time <8.75ns | ||
Battery Life 7 h | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Fluke 120B Series Industrial ScopeMeter 124B
Features and Benefits
20 MHz oscilloscope bandwidth
5000-count True RMS digital multimeter
Connect-and-View trigger simplicity for hands-off operation
IntellaSet technology automatically and intelligently adjusts numerical readout based on the measured signal
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Shielded test leads for oscilloscope, resistance and continuity measurements
Resistance, continuity, diode and capacitance meter measurements
Save or recall data and instrument setups
Store instrument setups defined by a test sequence for routine maintenance or most-often-used test procedures
External optically isolated USB interface to transfer, archive and analyse scope or meter data
Rugged design (to withstand 3 g vibration, 30 g shock) and rated IP51 according to EN/IEC60529
Highest safety rating in the industry, safety rated for CAT IV 600 V
Rechargeable battery
Dimensions 259 x 132 x 55 mm
Weight 1.4 kg
Note
Standards
Supplied with
Reliable automatic (and manual) triggering including motor drives and video
Connect and View™ hands off operation provides stable, reliable and repeatable display of signals without touching a button
Measurements include: V dc, VAC True RMS, Hz, duty cycle, pulse width, dBV, dBm, phase A to B, crest factor, Ohms, continuity, frequency, diode and capacitance
40 ns glitch capture
Dual channel Trendplot™ displays graphs of max. and min. readings with time and date stamp
High brightness, high contrast LCD display
Single shielded test lead type for each channel is used for all measurement including DSO and digital multimeter functions
Rugged and splash proof design with integral holster for reliable operation.
Safety designed to meet IEC 1010-1 Cat III 600 V for industrial power systems
