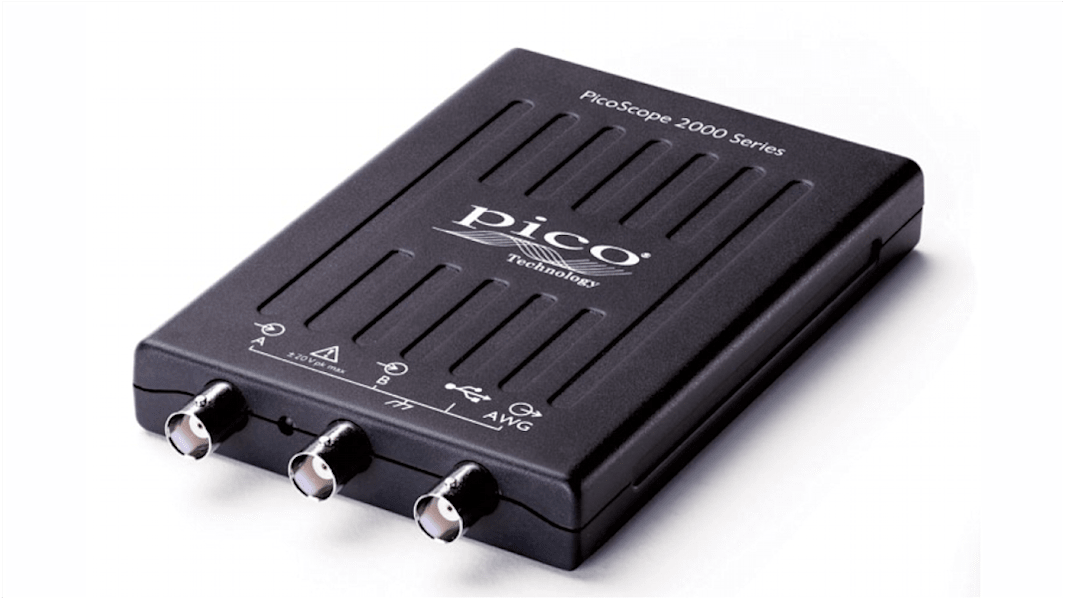

Pico Technology 2204A PicoScope 2000 Series, 10MHz PC Based Oscilloscope, 2 Analogue Channels

The Pico Technology 2204A from the 2000 series is a compact, affordable, USB-powered oscilloscope which has a bandwidth of 10Mhz. It is a 2-channel, PC based small, lightweight, modern oscilloscope which is an alternative to benchtop devices. It is used on the bench so it takes up little space and can sit right next to the circuit under test.
PicoScope 6 software (included) enables high-end features such as serial decoding and mask limit testing to be incorporated as a standard. It has a sample rate of 100MS/s which means it can capture signals at a rate of 100 million samples per second. The USB connection facilitates printing, copying, saving, and emailing field data. The high-speed USB interface provides fast data transfer and USB power eliminates the need to carry around a bulky external power supply.
Note:
Software supplied includes PicoScope 6, Windows and Linux SDK, example programs C, Visual Basic, Excel VBA, LabVIEW. PicoScope software PC requirements are Microsoft Windows XP (SP3), Windows Vista, Windows 7 or Windows 8 (not Windows RT) 32-bit or 64-bit.
Supplied with:
60MHz probes (2), USB cable, Quick start guide, software and reference CD
Pico PC based Instruments

Benchtop performance in pocket-sized scope - small and lightweight making it easy to carry and use
Simple, cost-effective solution - easy to use
Powerful - although small it offers a range of powerful features such as spectrum analysis and waveform generation
Fast real-time sampling rates
Equivalent-time sampling (ETS) mode
Built-in arbitrary waveform generator
Advanced digital triggers
Persistence display modes
USB connected and powered
Free software upgrades
Mask limit testing
Serial bus decoding

The PicoScope 2204a is a versatile and cost-effective tool for anyone who needs to measure and analyse electrical signals and is often used in the following areas:
Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs
