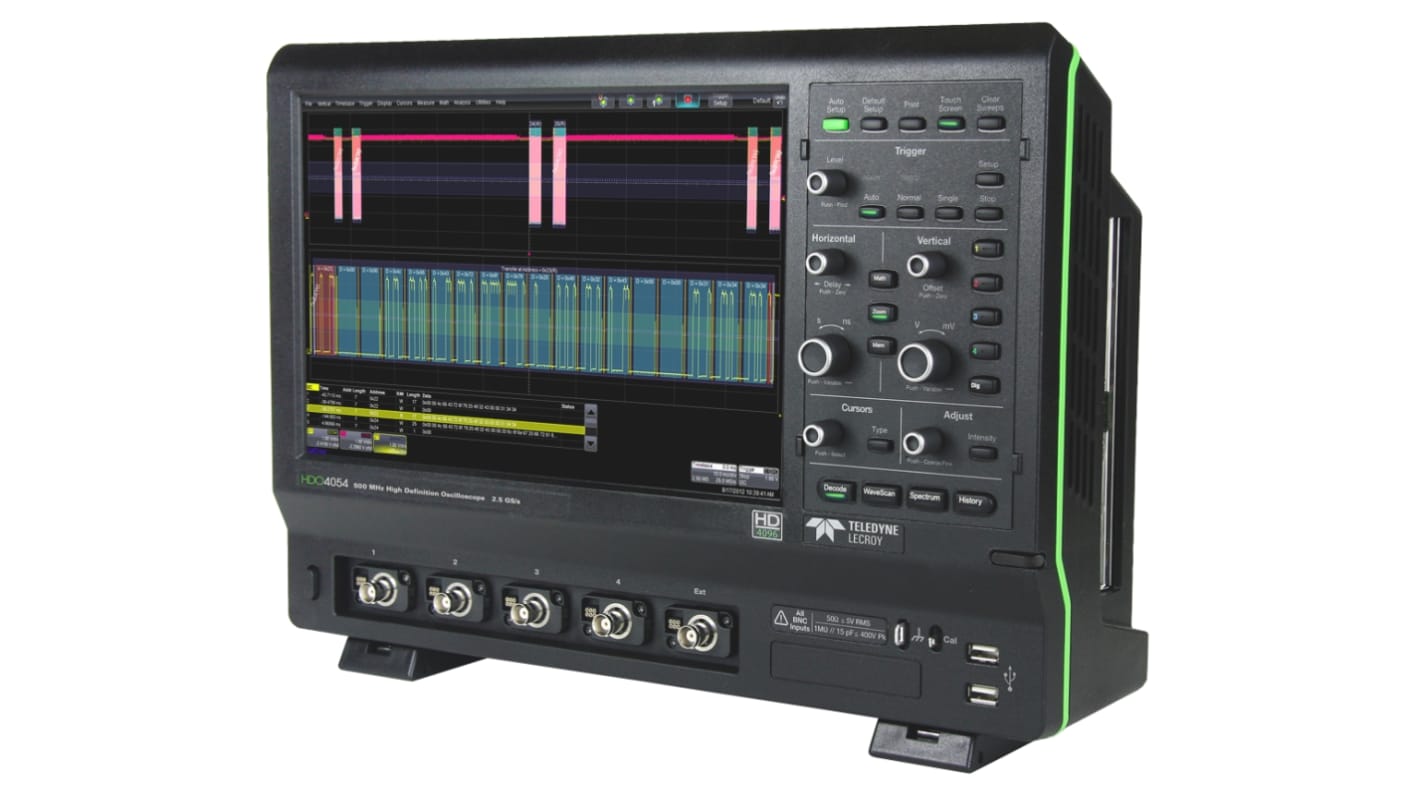

LeCroy HDO4104 HDO4000 Series Bench Oscilloscope, 4 Analogue Channels, 1GHz - RS Calibrated
- RS Stock No.:
- 765-7170
- Mfr. Part No.:
- HDO4104
- Brand:
- LeCroy
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 765-7170
- Mfr. Part No.:
- HDO4104
- Brand:
- LeCroy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LeCroy | |
| Number of Analogue Channels | 4 | |
| Bandwidth | 1GHz | |
| Oscilloscope Type | Bench | |
| Series | HDO4000 | |
| Calibrated | RSCAL | |
| Interface | USB | |
| Power Source | Mains | |
| Display Type | LCD - Touch Screen | |
| Minimum Vertical Sensitivity | 1mV/div | |
| Maximum Vertical Sensitivity | 10V/div | |
| Minimum Time Base | 20ps/div | |
| Screen Size | 12.1in | |
| Sample Rate Random | 2.5 G samples/s | |
| Weight | 5.9kg | |
| Dimensions | 399.4 x 131.31 x 291.7mm | |
| Maximum Time Base | 10000s/div | |
| Vertical Resolution | 12 bit | |
| Record Length | 12.5M points/ch | |
| Rise Time | 450ps | |
| Safety Category | CAT I, CAT II | |
Select all | ||
|---|---|---|
Brand LeCroy | ||
Number of Analogue Channels 4 | ||
Bandwidth 1GHz | ||
Oscilloscope Type Bench | ||
Series HDO4000 | ||
Calibrated RSCAL | ||
Interface USB | ||
Power Source Mains | ||
Display Type LCD - Touch Screen | ||
Minimum Vertical Sensitivity 1mV/div | ||
Maximum Vertical Sensitivity 10V/div | ||
Minimum Time Base 20ps/div | ||
Screen Size 12.1in | ||
Sample Rate Random 2.5 G samples/s | ||
Weight 5.9kg | ||
Dimensions 399.4 x 131.31 x 291.7mm | ||
Maximum Time Base 10000s/div | ||
Vertical Resolution 12 bit | ||
Record Length 12.5M points/ch | ||
Rise Time 450ps | ||
Safety Category CAT I, CAT II | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
HDO4000 High Definition Oscilloscopes
The HDO4000 models offer precise measurements and quick debug. They combine Teledyne LeCroy's HD4096 high definition technology with long memory, a compact form factor, 12.1 inch WXGA multi-touch display and powerful debug tools. Innovative rotating/tilting feet facilitate four different viewing positions for optimum flexibility in use.
Teledyne LeCroy HD4096 high definition technology
12-bit ADC resolution
Multi-language user interface
Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
WaveScan advanced search and find (e.g. for runts, glitches)
LabNotebook documentation and report generation (at single button press)
History mode waveform playback
Spectrum analyzer mode
12-bit ADC resolution
Multi-language user interface
Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
WaveScan advanced search and find (e.g. for runts, glitches)
LabNotebook documentation and report generation (at single button press)
History mode waveform playback
Spectrum analyzer mode
Note
HDO4000 accessories available separately include: passive probes PP026-1 or PP026-2 ( 922-5270 or 922-5273 ); current probes CP030A ( 878-7604 ) and CP031A ( 878-7607 ); high voltage differential probe HVD3106-6M ( 878-7601 ), HVD3206-6M ( 918-6866 ); active probe ZS1500 ( 878-7610 ); active differential probes ZD500 ( 878-7613 ) and ZD1500 ( 878-7617 ); trigger and decode options CAN FD ( 851-3191 ), ENET bus ( 878-7629 ); Manchester bus ( 878-7623 ), NRZ bus ( 878-7632 ), CAN LIN FlexRay package ( 878-7635 ), CAN ( 878-7639 ), LIN ( 878-7648 ), FlexRay ( 878-7641 ), SENT bus ( 878-7645 ), 12C SPI UART RS232 package ( 878-7654 ), 12C bus ( 878-7651 ), SPI bus ( 878-7663 ), UART RS232 bus ( 878-7679 ), AudioBus ( 878-7682 ), DigRF 3G bus ( 878-7689 ), DigRF V4 bus ( 878-7698 ), D-PHY bus ( 878-7695 ), ARINC 429 bus symbolic ( 878-7708 ), MIL-STD-1553 ( 878-7695 ), USB 2.0 bus ( 878-7718 ), USB 2.0 HSIC ( 878-7724 ), Power Analysis ( 878-7749 ), Spectrum Analysis ( 878-7746 ).
Supplied with
Passive probes (1 per channel), Getting Started Guide, Anti-virus Software (Trial Version), Microsoft Windows Embedded Standard 7 P 64-Bit License, Commercial NIST Traceable Calibration with Certificate, power cable
