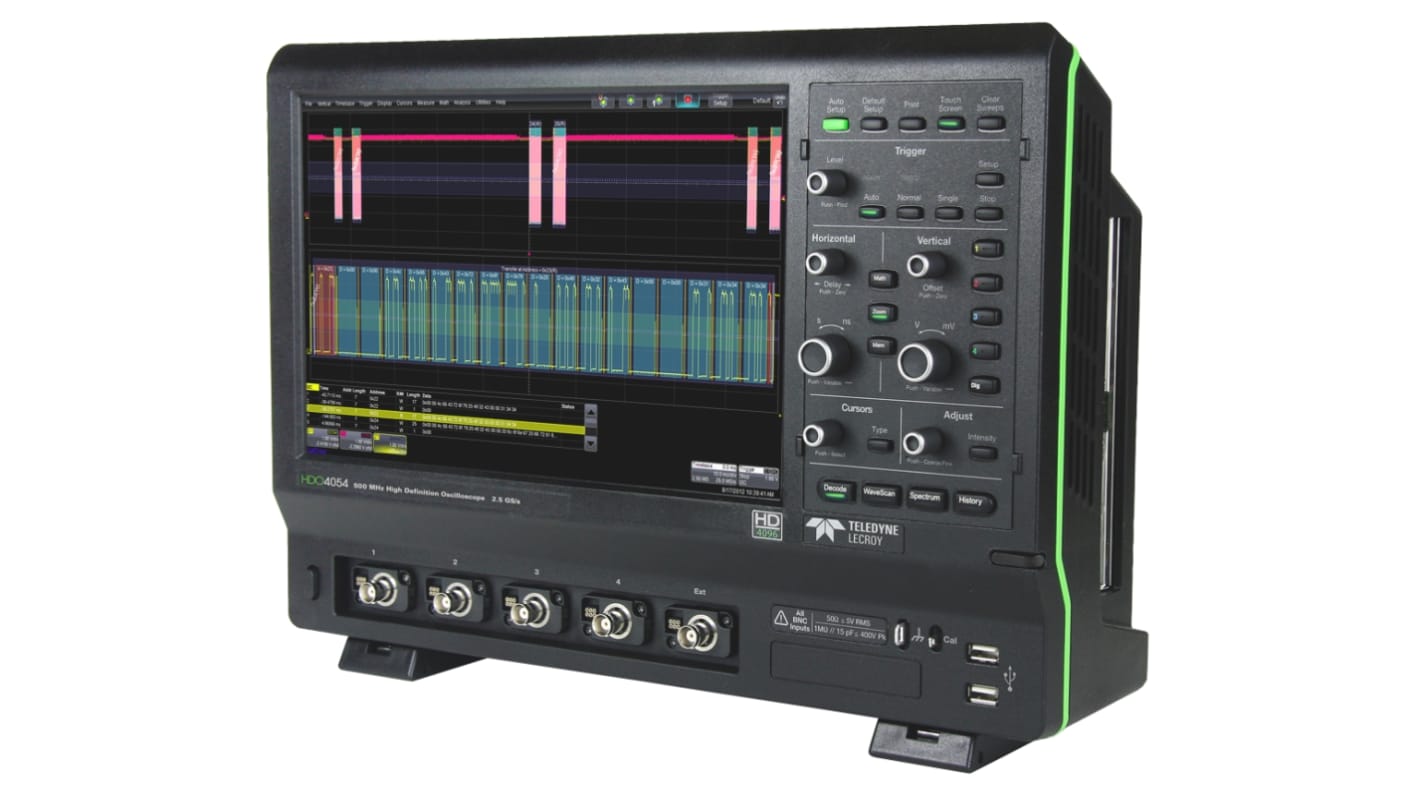

Teledyne LeCroy HDO4054 HDO4000 Series Bench Digital Oscilloscope, 4 Analogue Channels, 500MHz - UKAS Calibrated
- RS Stock No.:
- 765-7133
- Mfr. Part No.:
- HDO4054
- Brand:
- LeCroy
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13,140.00
(exc. VAT)
£15,768.00
(inc. VAT)
- RS Stock No.:
- 765-7133
- Mfr. Part No.:
- HDO4054
- Brand:
- LeCroy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LeCroy | |
| Bandwidth | 500MHz | |
| Number of Analogue Channels | 4 | |
| Oscilloscope Type | Bench | |
| Series | HDO4000 | |
| Calibrated | UKAS | |
| Power Source | Mains | |
| Interface | USB | |
| Display Type | LCD - Touch Screen | |
| Minimum Vertical Sensitivity | 1mV/div | |
| Maximum Vertical Sensitivity | 10V/div | |
| Minimum Time Base | 20ps/div | |
| Screen Size | 12.1in | |
| Sample Rate Random | 2.5 G samples/s | |
| Vertical Resolution | 12 bit | |
| Maximum Time Base | 10000s/div | |
| Length | 399.4mm | |
| Dimensions | 399.4 x 131.31 x 291.7mm | |
| Record Length | 12.5M points/ch | |
| Height | 291.7mm | |
| Weight | 5.9kg | |
| Safety Category Level | CAT I, CAT II | |
| Rise Time | 700ps | |
Select all | ||
|---|---|---|
Brand LeCroy | ||
Bandwidth 500MHz | ||
Number of Analogue Channels 4 | ||
Oscilloscope Type Bench | ||
Series HDO4000 | ||
Calibrated UKAS | ||
Power Source Mains | ||
Interface USB | ||
Display Type LCD - Touch Screen | ||
Minimum Vertical Sensitivity 1mV/div | ||
Maximum Vertical Sensitivity 10V/div | ||
Minimum Time Base 20ps/div | ||
Screen Size 12.1in | ||
Sample Rate Random 2.5 G samples/s | ||
Vertical Resolution 12 bit | ||
Maximum Time Base 10000s/div | ||
Length 399.4mm | ||
Dimensions 399.4 x 131.31 x 291.7mm | ||
Record Length 12.5M points/ch | ||
Height 291.7mm | ||
Weight 5.9kg | ||
Safety Category Level CAT I, CAT II | ||
Rise Time 700ps | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
HDO4000 High Definition Oscilloscopes
The HDO4000 models offer precise measurements and quick debug. They combine Teledyne LeCroy's HD4096 high definition technology with long memory, a compact form factor, 12.1 inch WXGA multi-touch display and powerful debug tools. Innovative rotating/tilting feet facilitate four different viewing positions for optimum flexibility in use.
Teledyne LeCroy HD4096 high definition technology
12-bit ADC resolution
Multi-language user interface
Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
WaveScan advanced search and find (e.g. for runts, glitches)
LabNotebook documentation and report generation (at single button press)
History mode waveform playback
Spectrum analyzer mode
12-bit ADC resolution
Multi-language user interface
Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
WaveScan advanced search and find (e.g. for runts, glitches)
LabNotebook documentation and report generation (at single button press)
History mode waveform playback
Spectrum analyzer mode
Note
HDO4000 accessories available separately include: passive probes PP026-1 or PP026-2 ( 922-5270 or 922-5273 ); current probes CP030A ( 878-7604 ) and CP031A ( 878-7607 ); high voltage differential probe HVD3106-6M ( 878-7601 ), HVD3206-6M ( 918-6866 ); active probe ZS1500 ( 878-7610 ); active differential probes ZD500 ( 878-7613 ) and ZD1500 ( 878-7617 ); trigger and decode options CAN FD ( 851-3191 ), ENET bus ( 878-7629 ); Manchester bus ( 878-7623 ), NRZ bus ( 878-7632 ), CAN LIN FlexRay package ( 878-7635 ), CAN ( 878-7639 ), LIN ( 878-7648 ), FlexRay ( 878-7641 ), SENT bus ( 878-7645 ), 12C SPI UART RS232 package ( 878-7654 ), 12C bus ( 878-7651 ), SPI bus ( 878-7663 ), UART RS232 bus ( 878-7679 ), AudioBus ( 878-7682 ), DigRF 3G bus ( 878-7689 ), DigRF V4 bus ( 878-7698 ), D-PHY bus ( 878-7695 ), ARINC 429 bus symbolic ( 878-7708 ), MIL-STD-1553 ( 878-7695 ), USB 2.0 bus ( 878-7718 ), USB 2.0 HSIC ( 878-7724 ), Power Analysis ( 878-7749 ), Spectrum Analysis ( 878-7746 ).
Supplied with
Passive probes (1 per channel), Getting Started Guide, Anti-virus Software (Trial Version), Microsoft Windows Embedded Standard 7 P 64-Bit License, Commercial NIST Traceable Calibration with Certificate, power cable
