Update rates up to 1,000,000 waveforms/sec
Memory depth 2M points (standard)
Input Z 1-MΩ or 50-Ω user-selectable, with InfiniiMax auto-probe interface
Triggering: Edge; Pulse Width; Pattern; Rise/Fall Time; Nth Edge Burst; Runt; Setup & Hold; Video; USB; Serial 1; Serial 2
High resolution display intensity gradation

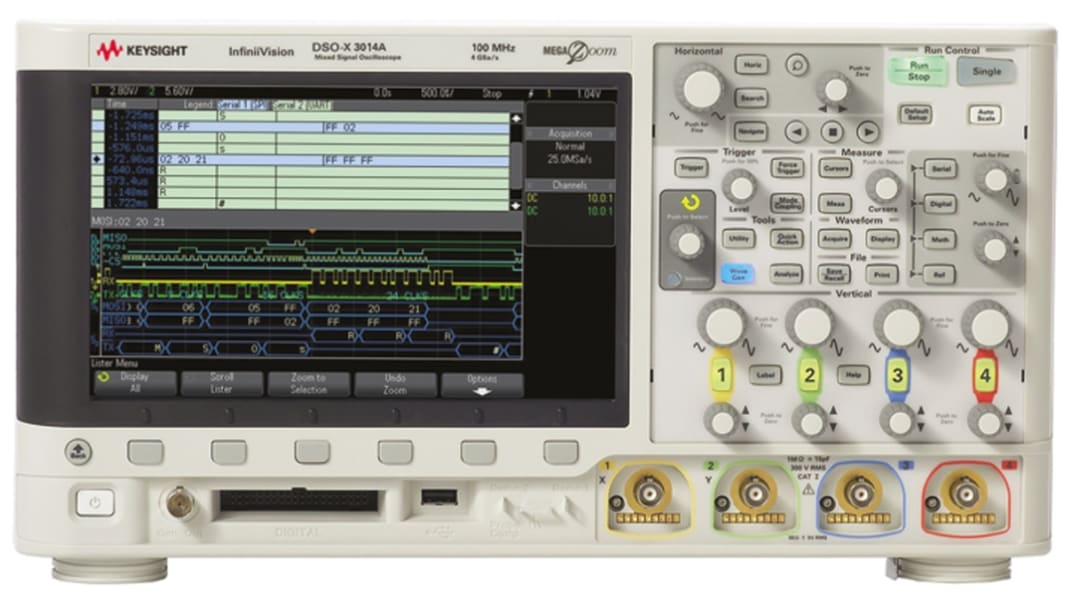

The Keysight Technologies 3000 X series 100MHz oscilloscope enables 1,000,000 waveforms per second update rate with mega-zoom IV smart memory technology. The fast waveform update rates improve the probability of capturing random and infrequent events that can not be captured using an oscilloscope with a lower waveform update rate. It has 4 analogue channels. It also provides maximum investment protection with the only 5 in 1 instrument integration.

Sampling rate is 4GSa/s
Maximum memory depth is 2Mpts
Input impedance is 1Mohm
Function Generator is 20MHz (includes Bode plot test)
Display of 8.5-inch WVGA colour display
Upgrade to MSO at any time
Serial protocol triggering and analysis options
Waveform math and FFT
USB host and device ports for connectivity, memory devices and printing
Optional LAN and VGA interface
Optional GPIB interface
High-resolution display intensity gradation

Audio and video recording equipment
Designing
Research & Development
Testing in manufacturing
Testing of signals voltage in radio broadcasting equipment
Testing signal voltage in-circuit debugging

IEC 61000/EN 61000 compatible
ANSI/UL approved
CAN/CSA approved

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.
