Pico Technology 3206D PicoScope 3000 Series, 200MHz PC Based Oscilloscope, 2 Analogue Channels - UKAS Calibrated

View all Oscilloscopes

Subtotal (1 unit)*

£1,390.55

(exc. VAT)

£1,668.66

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 29 October 2025
  • Plus 1 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,390.55

*price indicative

Shop Probes
Don't forget your Probe
Whatever Oscilloscope you're in the market for, we have the probe to match.
Shop our full range of Probes here
RS Stock No.:
280-6649
Mfr. Part No.:
PIcoScope 3206D
Brand:
Pico Technology
Find similar products by selecting one or more attributes.
Select all

Brand

Pico Technology

Bandwidth

200MHz

Number of Analogue Channels

2

Oscilloscope Type

PC Based

Calibrated

UKAS

Interface

CAN, IIC, LIN, RS232, SPI, UART, USB

Sample Rate Random

10 Gsps

Series

PicoScope 3000

Dimensions

190 x 170 x 40mm

Power Source

Mains

Maximum Vertical Sensitivity

4V/div

Digital/Analogue

Analogue

Minimum Vertical Sensitivity

4mV/div

Weight

500g

Maximum Time Base

5000s/div

Vertical Resolution

8 bit

Minimum Time Base

500ps/div

Rise Time

1.75ns

COO (Country of Origin):
GB

PicoScope 3000D Series Oscilloscopes

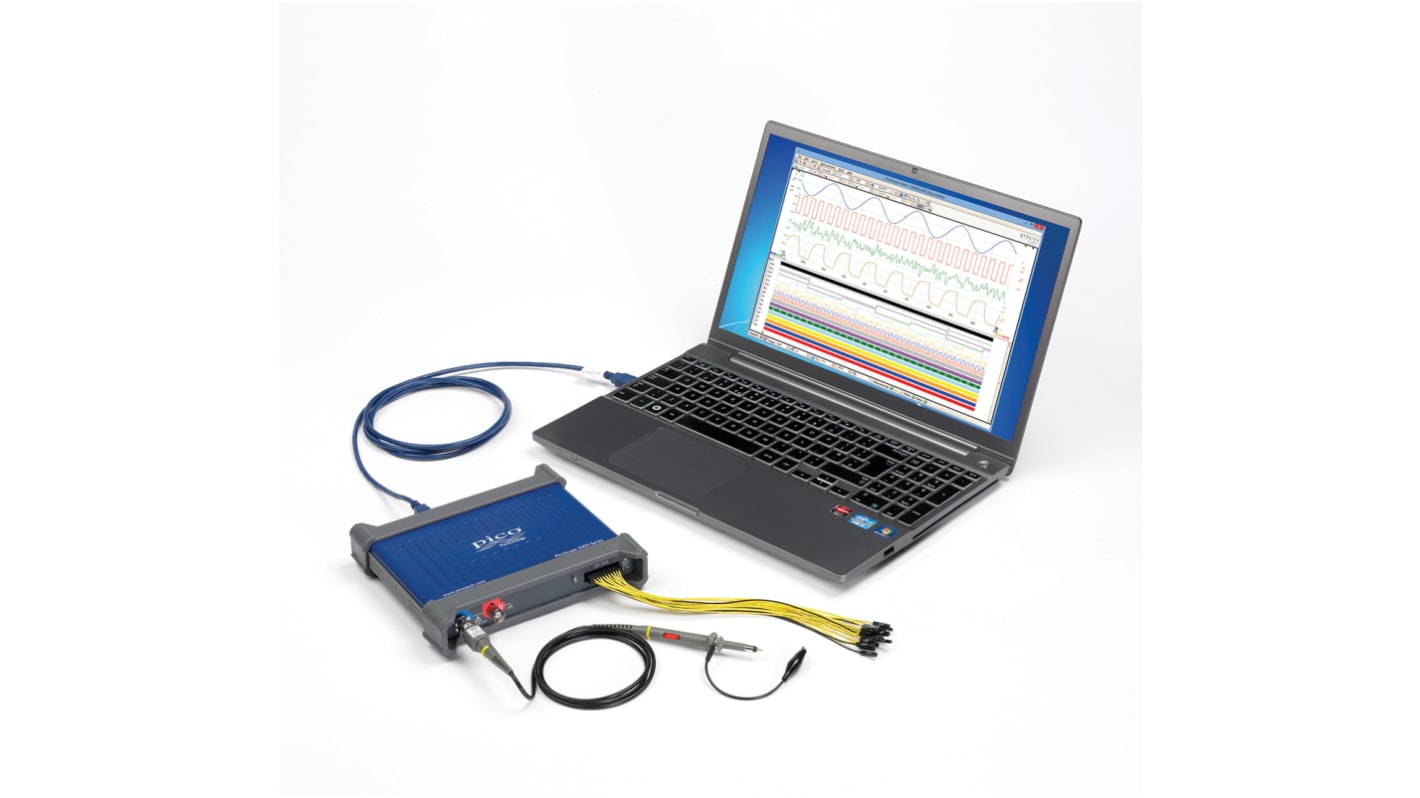

The compact, USB-connected PicoScope 3000D is a complete portable test system - it plugs into a laptop to become an anywhere, anytime instrument of choice. It is supported by freely-downloadable PicoScope 6 software to offer advanced, cost-effective solutions in applications ranging from systems design, research and test to education, service and repair.
All models come with a USB 3.0 interface and are fully compatible with USB 2.0. In common with all PicoScopes, the 3000D displays waveforms in a re-sizable window on the user's PC screen, creating an uncluttered space for multiple high-resolution analog and digital traces. Saving, sharing and analysing waveforms is quick and simple using PC networking, storage and processing facilities. Deep measuring buffers enable long captures, even at fast real-time sampling rates of up to one gigasample per second. Hardware-accelerated data processing maintains smooth and rapid display updates, even with very large capture sizes.
A lot of advanced features are included as standard in the 3000D e.g. math channels, automatic measurements with statistics, spectrum analysis and colour persistence display mode. Also built-in are advanced digital triggering with pulse width, window, dropout, channel logic, digital pattern and other qualifiers, mask limit testing and alarms. Serial decoding supports SPI, I2C, I2S, RS-232/UART, CAN, LIN and FlexRay protocols on up to 20 analog and digital channels, even with a mixture of protocols at the same time.

Choice of bandwidths (50,70,100 or 200 MHz models)
2 or 4 analog channels, depending on choice of model
16 digital channels
Up to 1 GS/s real-time sampling
Up to 512 MS buffer memory
Built-in function generator and arbitrary waveform generator
Hardware-accelerated update rates
USB connected and powered

Supplied with

Switchable x1/x10 probes (1 per analog channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analog channel models only)
