Tektronix MDO34 3 Series MDO Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels - UKAS

RS Stock No.:: 280-6511
Mfr. Part No.:: MDO34 3-BW-100
Brand:: Tektronix

Tektronix MDO34 3 Series MDO Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels - UKAS

Price Each

£4,626.50

(exc. VAT)

£5,551.80

(inc. VAT)

Available to back order for despatch 23/01/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£4,626.50

RS Stock No.:: 280-6511
Mfr. Part No.:: MDO34 3-BW-100
Brand:: Tektronix

Datasheet MDO34 3-BW-100

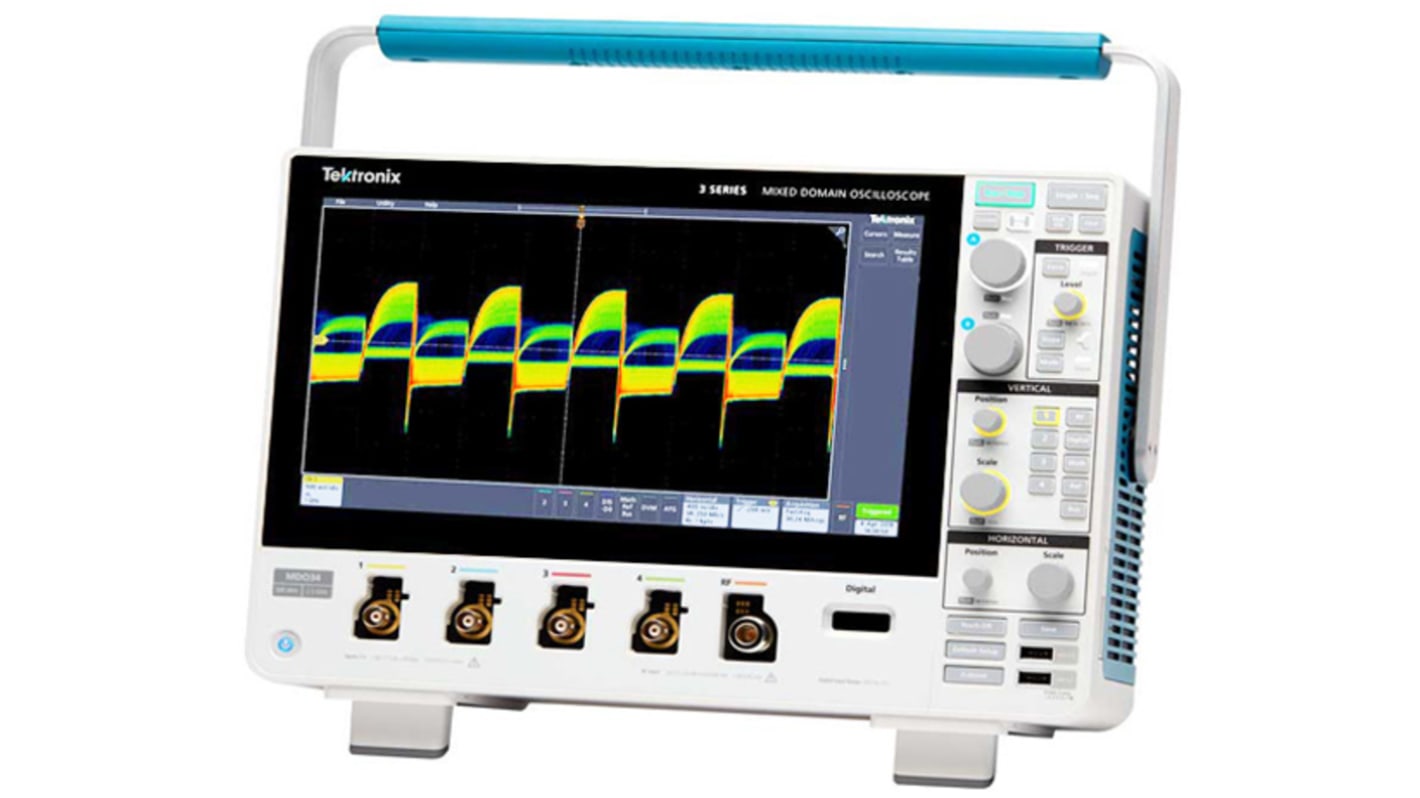

Tektronix MDO 3-BW-100, 3 Series MDO Mixed Domain Oscilloscope, 4 Channel, 100Mhz

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyser built right in with superior RF test performance and guaranteed RF specifications.

Features and Benefits

• 11.6-inch HD colour display, pinch, tap, swipe capacitive touchscreen
• Low-level signal measurement accuracy improved by as much as 40%
• Up to 5 GS/s sample rate on each analog channel
• More than 125 trigger combinations
• Dozens of automated measurements
• Wide range of available serial bus decode and trigger options
• Built-in 1GHz Spectrum Analyser
• DVM/Freq Counter (free on registration)
• Upgradeable options of Bandwidth, Spectrum Analyser up to 3Ghz, 16 Digital channel with MSO, 50 MHz Arbitrary / Function Generator and Advanced Analysis
• Software and application specific software options covering power, security, automotive, aerospace and several serial triggering options
• Enable remote-hybrid learning with TekScope™software and TekDrive collaborative workspace

Accessories

3 Series Accessories

RS Stock No. 6978823 TEK-DPG - Deskew Pulse Generator Signal Source
RS Stock No. 113143 TEK USB-488 - GPIB to USB Adapter
RS Stock No. 9287540 TPA-BNC - Interface Adapter
Probes Options
RS Stock No. 7962696 TCP0020 Current Probe
RS Stock No. 7810807 TCP0030A Current Probe
RS Stock No. 7527357 THDP0200 Differential Probe
RS Stock No. 7973396 TPP0250 Passive Probe
RS Stock No. 7973390 TPP0500B Passive Probe
Software Options
SUP3 MSO (16 Digital Channels and P6136) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 BND (Application bundle serial and power options) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 AFG (Add arbitrary function generator) www.tek.com/en/products/oscilloscopes/3-series-mdo
TekScope™ www.tek.com/en/products/software/tekscope-pc-analysis-software
TekDrive www.tek.com/en/products/software/tekdrive
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Software Updates

Most Popular Software Options
SUP3 MSO (16 Digital Channels and P6136) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 BND (Application bundle serial and power options) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 AFG (Add arbitrary function generator) www.tek.com/en/products/oscilloscopes/3-series-mdo
TekScope™ www.tek.com/en/products/software/tekscope-pc-analysis-software
TekDrive www.tek.com/en/products/software/tekdrive
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Embedded Design
Embedded Serial Bus Analysis
Power Measurements and Analysis
Electromagnetic Interference (EMI) Troubleshooting
Education
IoT Design
Manufacturing test/troubleshooting

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

Attribute	Value
Bandwidth	100MHz
Number of Analogue Channels	4
Number of Digital Channels	16
Oscilloscope Type	Bench
Calibrated	UKAS
Oscilloscope Form	Mixed Domain
Interface	CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
Sample Rate Random	2.5 Gsps
Screen Size	11.6in
Series	3 Series MDO
Record Length	10M points/ch
Rise Time	4ns
Display Type	TFT LCD
Power Source	Mains
Weight	5.3kg
Minimum Vertical Sensitivity	1mV/div
Maximum Vertical Sensitivity	10V/div
Digital/Analogue	Digital
Dimensions	370 x 148.6 x 252mm
Minimum Time Base	1ns/div
Input Impedance	1 MΩ
Input Capacitance	3.9 pF
Vertical Resolution	8 bit
Maximum Time Base	1000s/div
