RS PRO RSMDO-2000EX Series, 200 MHz Bench Oscilloscope, 4

RS Stock No.:: 280-6474
Brand:: RS PRO

RS PRO RSMDO-2000EX Series, 200 MHz Bench Oscilloscope, 4

Subtotal (1 unit)*

£1,977.00

(exc. VAT)

£2,372.40

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,977.00

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 280-6474
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Oscilloscope
	Bandwidth	200MHz
	Number of Channels	4
	Oscilloscope Type	Bench
	Oscilloscope Form	Mixed Domain
	Interface Type	RJ45, LIN, CAN, UART, USB, IIC, SPI
	Memory Depth	10Mpts
	Screen Size	203.2 mm
	Series	RSMDO-2000EX
	Height	208mm
	Width	384 mm
	Standards/Approvals	No
	Depth	127.3mm
	Plug Type	USB
	Vertical Resolution	8 bit
	Display Type	TFT LCD
	Power Source	Mains
	Maximum Vertical Sensitivity	10V/div
	Waveform Refresh Rate	120000per sec
	Rise Time	1.75ns
	Maximum Time Base	100s/div
	Minimum Vertical Sensitivity	1mV/div
	Minimum Time Base	1ns/div

	Select all
	Brand RS PRO
	Product Type Oscilloscope
	Bandwidth 200MHz
	Number of Channels 4
	Oscilloscope Type Bench
	Oscilloscope Form Mixed Domain
	Interface Type RJ45, LIN, CAN, UART, USB, IIC, SPI
	Memory Depth 10Mpts
	Screen Size 203.2 mm
	Series RSMDO-2000EX
	Height 208mm
	Width 384 mm
	Standards/Approvals No
	Depth 127.3mm
	Plug Type USB
	Vertical Resolution 8 bit
	Display Type TFT LCD
	Power Source Mains
	Maximum Vertical Sensitivity 10V/div
	Waveform Refresh Rate 120000per sec
	Rise Time 1.75ns
	Maximum Time Base 100s/div
	Minimum Vertical Sensitivity 1mV/div
	Minimum Time Base 1ns/div

COO (Country of Origin):: TW

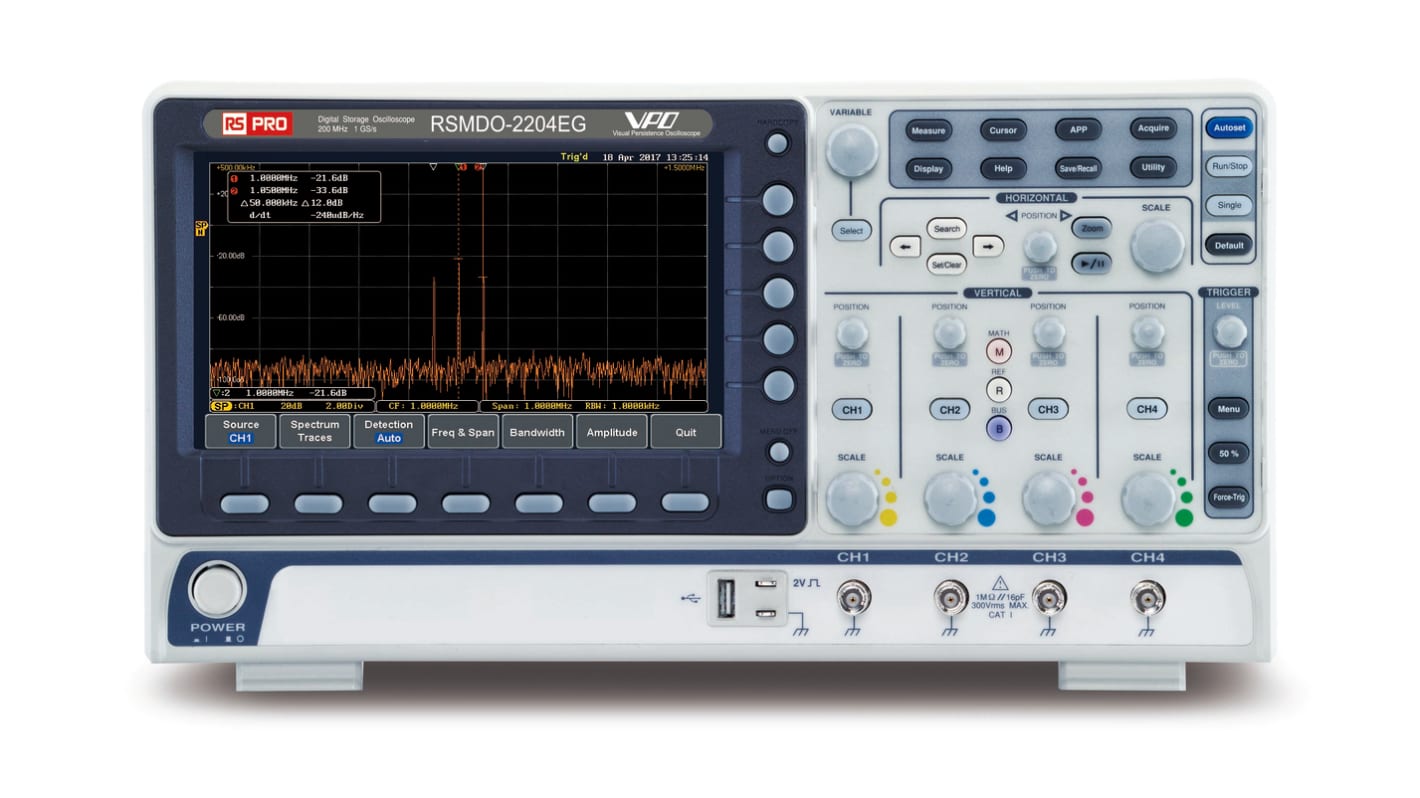

RS PRO RSDM-2000EG Series Mixed Domain Digital oscilloscope equipped with a Spectrum Analyzer & a Dual Channel 25MHz Arbritrary Waveform Generator

Introducing the RSDM-2000EG series of digital oscilloscopes from our trusted and reliable own brand RS PRO, a range of highly accurate DSO (digital storage oscilloscopes) featuring a multitude of features essential for testing and measuring the bandwidth and waveform of electronic signals. The RSDM-2000EG series offers oscilloscopes in 100 and 200 MHz, with 2 or 4 channels available to accommodate a range of applications. Models with two analog channels provide 1GSa/s real-time sampling rate per channel; models with four analog channels provide 1GSa/s maximum real-time sampling rate.

Each oscilloscope in this series includes a built-in spectrum analyser and a dual channel 25MHz arbitrary waveform generator, with an 8” WVGA TFT LCD display allowing you to view results clearly in real-time. With the Advanced technology behind the RSDM-2000 range, users can analyse the signal spectrum of interest. Compared with common oscilloscope' FFT (Fast Fourier Transform), the RSMDO-2000E series allows engineers to effectively conduct signal measurements on frequency domain with precision.

Features and benefits

• Available with either 100 or 200 MHz bandwidth

• 2 channel and 4 channel models available

• 8 ” WVGA TFT LCD display allowing you to view results clearly

• Free frequency response analyser software

• High pass, low pass and band pass filter functions

• Update Rate up to 120,000 wfm/s

• Real-time sample rate per channel: 1GSa/s (2 Channel Models); maximum real-time sample rate: 1 GSa/s (4 Channel Models)

• Equips with a Spectrum Analyzer and a Dual Channel 25 MHz AWG

• Maximum 1M FFT provides higher frequency domain resolution measurements

• 29,000 segmented memory sections and waveform search functions

• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions

• Data log function allowing you to track signal changes up to 1000 Hours

• Mask test function & network storage function

• USB 2.0 High-speed host port x 1, USB 2.0 High-speed device port x 1

Applications

Oscilloscopes are an essential tool for capturing, measuring and analysing electrical signals. They are used in a wide range of professions and applications such as:

• Electrical engineers

• Technicians

• Healthcare

• Physicists

• Automotive

What is the difference between a mixed signal oscilloscope and a mixed domain oscilloscope?

Although both mixed-signal oscilloscopes and mixed-domain oscilloscopes can carry out a range of tests and measurements of electrical signals, they both offer different features. For example, an MDO has the Ability to display the same signal as time-synchronized, time-domain and frequency-domain traces at the same time, whilst an MSO displays a similar view of two different signals, usually from the same device.

Are there probes included?

The RS PRO RSDM-2000EG series of oscilloscopes does not come with probes included, however, we do offer a wide range of high-quality and reliable oscilloscope probes from our own brand RS PRO.

Does it include a warranty?

The RS PRO RSDM-2000EG series includes a 3 year warranty (excluding probes and LCD display panel).
