MPN

Keysight Technologies InfiniiVision 4000 X Series, 200 MHz Bench Oscilloscope 2-Channel - UKAS

RS Stock No.:: 279-1970
Mfr. Part No.:: DSOX4022G
Brand:: Keysight Technologies

Keysight Technologies InfiniiVision 4000 X Series, 200 MHz Bench Oscilloscope 2-Channel - UKAS

Subtotal (1 unit)*

£7,013.00

(exc. VAT)

£8,415.60

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£7,013.00

*price indicative

Keysight Oscilloscopes on a red background

Claim Your FREE Bandwidth Upgrade

Exclusive to RS - For a limited time only, boost your testing capabilities with a FREE bandwidth upgrade on selected Keysight InfiniiVision Oscilloscopes worth up to £9,500!

Learn More Here

RS Stock No.:: 279-1970
Mfr. Part No.:: DSOX4022G
Brand:: Keysight Technologies

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Product Type	Oscilloscope
	Bandwidth	200MHz
	Number of Channels	2
	Oscilloscope Type	Bench
	Interface Type	GPIB, LAN, USB, USB 2.0, VGA
	Series	InfiniiVision 4000 X
	Length	156mm
	Width	454 mm
	Height	275mm
	Standards/Approvals	No
	Power Source	Mains
	Vertical Resolution	8 bit
	Rise Time	1.75ns
	Maximum Vertical Sensitivity	5V/div
	Minimum Vertical Sensitivity	1mV/div
	Calibrated	UKAS

	Select all
	Brand Keysight Technologies
	Product Type Oscilloscope
	Bandwidth 200MHz
	Number of Channels 2
	Oscilloscope Type Bench
	Interface Type GPIB, LAN, USB, USB 2.0, VGA
	Series InfiniiVision 4000 X
	Length 156mm
	Width 454 mm
	Height 275mm
	Standards/Approvals No
	Power Source Mains
	Vertical Resolution 8 bit
	Rise Time 1.75ns
	Maximum Vertical Sensitivity 5V/div
	Minimum Vertical Sensitivity 1mV/div
	Calibrated UKAS

Datasheet - DSOX4022G

COO (Country of Origin):: MY

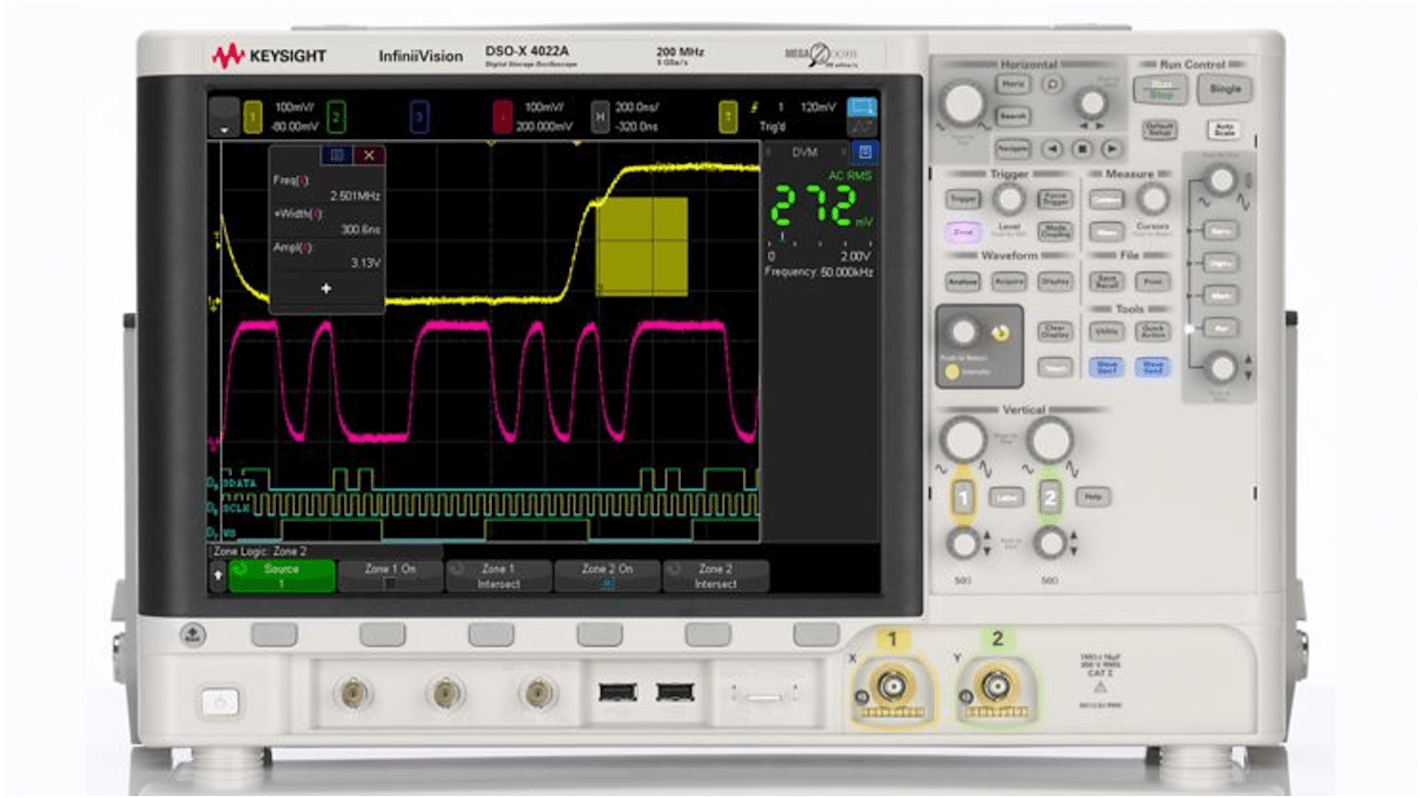

The Keysight Technologies Digital Oscilloscope is a 4000 X Series oscilloscope which boasts 12.1 inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering and 1 million waveforms per second update rate. This 4000 X Series oscilloscope provides maximum investment protection with fully upgradable 7 instruments in 1.

Zone touch trigger

Isolate signals in seconds

Standard segmented memory

First fully upgradable oscilloscope

MegaZoom IV smart memory technology

Leading application solutions for industry

Note

Manufacturer’s Warranty

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.
