MPN

Keysight Technologies MSOX3014G InfiniiVision 3000G X Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16

RS Stock No.:: 237-2382
Distrelec Article No.:: 302-48-296
Mfr. Part No.:: MSOX3014G
Brand:: Keysight Technologies

Keysight Technologies MSOX3014G InfiniiVision 3000G X Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16

Subtotal (1 unit)*

£6,996.27

(exc. VAT)

£8,395.52

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 27 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£6,996.27

*price indicative

Calibration Options:

Keysight Technologies MSOX3014G InfiniiVision 3000G X Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16

Calibration Type:: RSCAL

RS Stock No.: 237-2427

Each

£7,098.27

(exc. VAT)

£8,517.92

(inc. VAT)

Keysight Technologies MSOX3014G InfiniiVision 3000G X Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16

Calibration Type:: UKAS

RS Stock No.: 237-2429

Each

£7,132.77

(exc. VAT)

£8,559.32

(inc. VAT)

RS Stock No.:: 237-2382
Distrelec Article No.:: 302-48-296
Mfr. Part No.:: MSOX3014G
Brand:: Keysight Technologies

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Bandwidth	100MHz
	Number of Analogue Channels	4
	Number of Digital Channels	16
	Oscilloscope Type	Bench
	Oscilloscope Form	Mixed Signal
	Memory Depth	2Mpts
	Sample Rate Random	5 Gsps half channels, 2.5 Gsps all channels
	Screen Size	8.5in
	Series	InfiniiVision 3000G X
	Dimensions	381 x 204 x 142mm
	Vertical Resolution	8 bit
	Input Capacitance	8 pF
	Rise Time	≤3.5ns
	Digital/Analogue	Digital
	Input Impedance	1 MΩ
	Weight	4.2kg
	Display Type	Capacitive Touch Gesture-Enabled Display

	Select all
	Brand Keysight Technologies
	Bandwidth 100MHz
	Number of Analogue Channels 4
	Number of Digital Channels 16
	Oscilloscope Type Bench
	Oscilloscope Form Mixed Signal
	Memory Depth 2Mpts
	Sample Rate Random 5 Gsps half channels, 2.5 Gsps all channels
	Screen Size 8.5in
	Series InfiniiVision 3000G X
	Dimensions 381 x 204 x 142mm
	Vertical Resolution 8 bit
	Input Capacitance 8 pF
	Rise Time ≤3.5ns
	Digital/Analogue Digital
	Input Impedance 1 MΩ
	Weight 4.2kg
	Display Type Capacitive Touch Gesture-Enabled Display

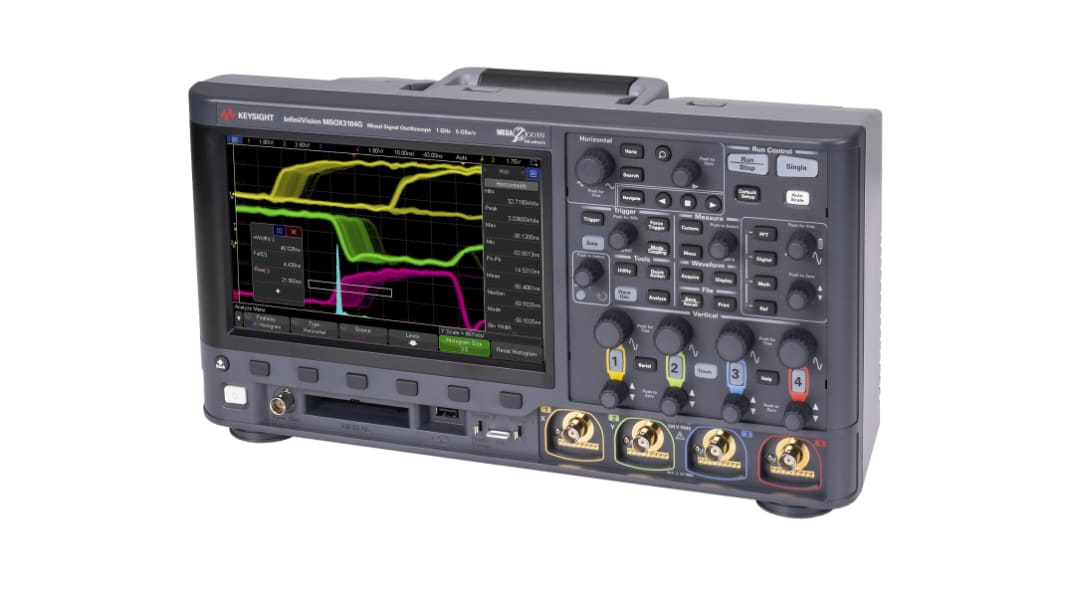

MSOX3014G Mixed Signal Oscilloscope

The MSOX3014G from Keysight Technologies is part of the high performance InfiniiVision 3000G X-series oscilloscopes and has a bandwidth of 100MHz.

If you are looking for a high-performance, feature-rich oscilloscope that combines digital and analog measurement capabilities, the MSOX3014G mixed signal oscilloscopes will be your instrument of choice. These versatile digital instruments can help you maintain high test speed and flexibilty in the most complex applications and provides engineers with a flexible solution for collecting performance and debug information from today’s complex embedded systems. The instrument delivers the industry’s best visualisation technology, as well as exceptional data capture properties and precise waveform measurements.

These oscilloscopes offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, zone trigger and standard features enables you to capture and isolate elusive glitches which cannot be performed on other scopes.

The Keysight Technologies has InfiniiVision 3000G X-series oscilloscopes with bandwidth of 100 MHz offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, and zone trigger can capture and isolate elusive glitches. This oscilloscope has 4 analog channels and 16 digital channels.

Features and Benefits:

High performance mask and measurement limit testing enabled in hardware
Frequency response analysis
Best in usability
Designed for touch operation to simplify use
Waveform and measurement histograms
Built-in function, arbitrary waveform generator

Applications

Mixed Signal oscilloscopes are designed to work with a mixture of analog, digital and RF signals. They are suited for applications such as high-speed communications and networking, PCs, printers, motors and drives, robotics, vision systems packages in aerospace/defense and automotive industries.
