Teledyne LeCroy T3DSO2104A T3DSO2000A Series, 100MHz Bench Oscilloscope, 4 Analogue Channels - UKAS Calibrated
- RS Stock No.:
- 215-1998
- Mfr. Part No.:
- T3DSO2104A
- Brand:
- Teledyne LeCroy
Subtotal (1 unit)*
£3,226.50
(exc. VAT)
£3,871.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 27 October 2025
- Plus 999,999,994 unit(s) shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3,226.50 |
*price indicative
- RS Stock No.:
- 215-1998
- Mfr. Part No.:
- T3DSO2104A
- Brand:
- Teledyne LeCroy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Teledyne LeCroy | |
Bandwidth | 100MHz | |
Number of Analogue Channels | 4 | |
Calibrated | UKAS | |
Oscilloscope Type | Bench | |
Oscilloscope Form | Digital Storage | |
Memory Depth | 200Mpts | |
Sample Rate Random | 2 Gsps | |
Screen Size | 10.1in | |
Series | T3DSO2000A | |
Digital/Analogue | Digital | |
Minimum Vertical Sensitivity | 10V/div | |
Power Source | Mains | |
Maximum Vertical Sensitivity | 0.5mV/div | |
Vertical Resolution | 8 bit | |
Select all | ||
---|---|---|
Brand Teledyne LeCroy | ||
Bandwidth 100MHz | ||
Number of Analogue Channels 4 | ||
Calibrated UKAS | ||
Oscilloscope Type Bench | ||
Oscilloscope Form Digital Storage | ||
Memory Depth 200Mpts | ||
Sample Rate Random 2 Gsps | ||
Screen Size 10.1in | ||
Series T3DSO2000A | ||
Digital/Analogue Digital | ||
Minimum Vertical Sensitivity 10V/div | ||
Power Source Mains | ||
Maximum Vertical Sensitivity 0.5mV/div | ||
Vertical Resolution 8 bit | ||
- COO (Country of Origin):
- CN

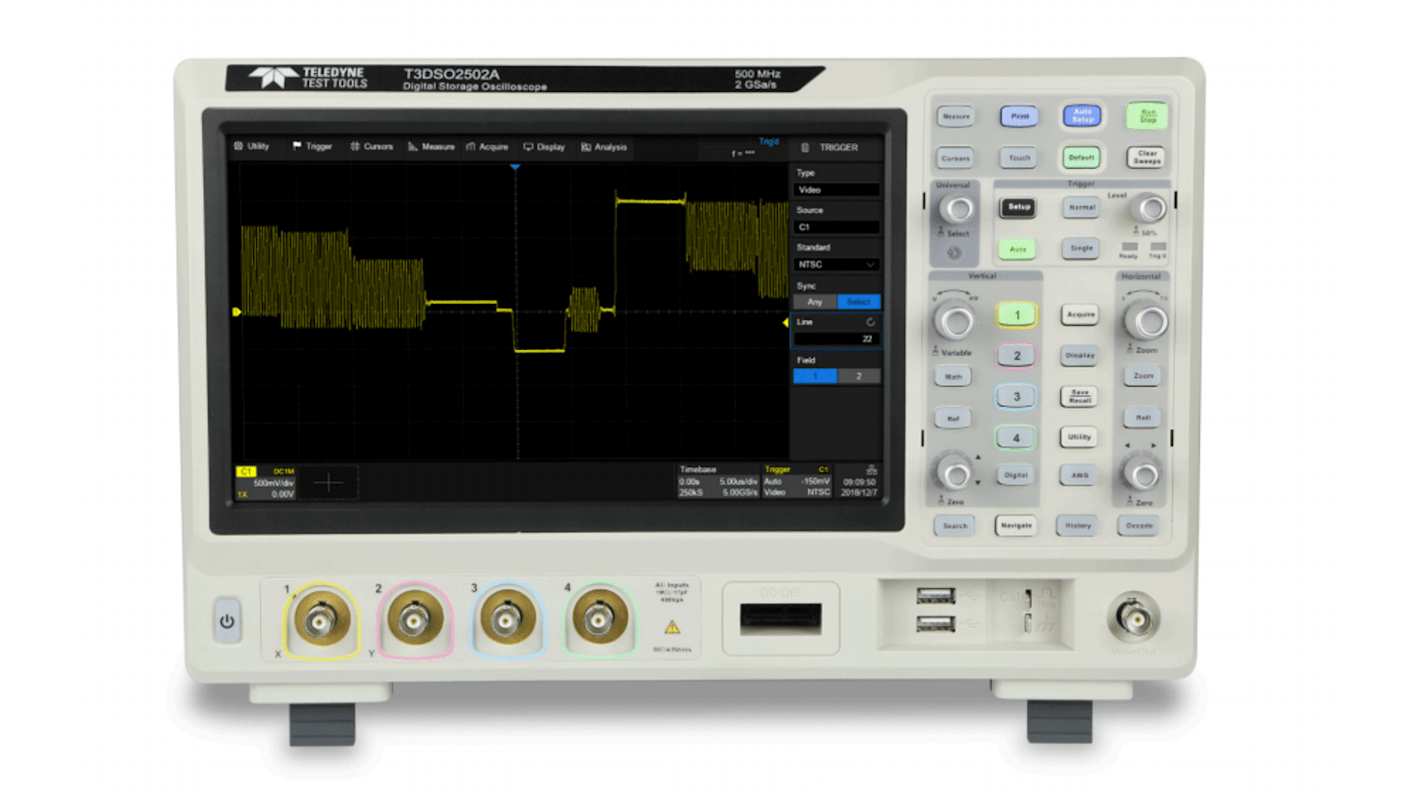

Teledyne LeCroy T3DSO2104A Bench Digital Storage Oscilloscope, 100 MHz, 4 Channels
Product Description
Teledyne LeCroy's T3DSO2104A Oscilloscope is a four channel model with an analog bandwidth of 100 MHz. The T3DSO2104A offers a maximum sample rate of 2 GSa/s, and a maximum memory depth of 200 Mpts in half channel mode. The T3DSO2104A incorporates two 2 GSa/s ADCs and two 200 Mpts memory modules. When all channels are enabled, each channel has a sample rate of 1 GSa/s and a standard record length of 100 Mpts. When only a single channel per ADC is active, the maximum sample rate is 2 GSa/s and the maximum record length is 200 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
Long Capture – 100 Mpts/Ch and 200 Mpts interleaved
Math and Measure – 9 basic math functions plus FFT and 50+ automatic measurement parameters
Connectivity – USB for mass storage, printing and PC control, plus LAN for fast data transfer
Includes Serial Bus Trigger and Decode – I2C, SPI, UART, CAN, LIN as standard.
Optional CAN FD, I2S, MIL- 1553B, FlexRay
Includes Bode Plot, 50MHz Function Generator and Power Analysis applications as standard
Optional MSO – 16 Digital Channels
Waveform Sequence Recorder – record and play back up to 90,000 waveforms
Math and Measure – 9 basic math functions plus FFT and 50+ automatic measurement parameters
Connectivity – USB for mass storage, printing and PC control, plus LAN for fast data transfer
Includes Serial Bus Trigger and Decode – I2C, SPI, UART, CAN, LIN as standard.
Optional CAN FD, I2S, MIL- 1553B, FlexRay
Includes Bode Plot, 50MHz Function Generator and Power Analysis applications as standard
Optional MSO – 16 Digital Channels
Waveform Sequence Recorder – record and play back up to 90,000 waveforms
Applications
Education
Electronic Design
Automotive
Engineering
System Debug
Electronic Design
Automotive
Engineering
System Debug
