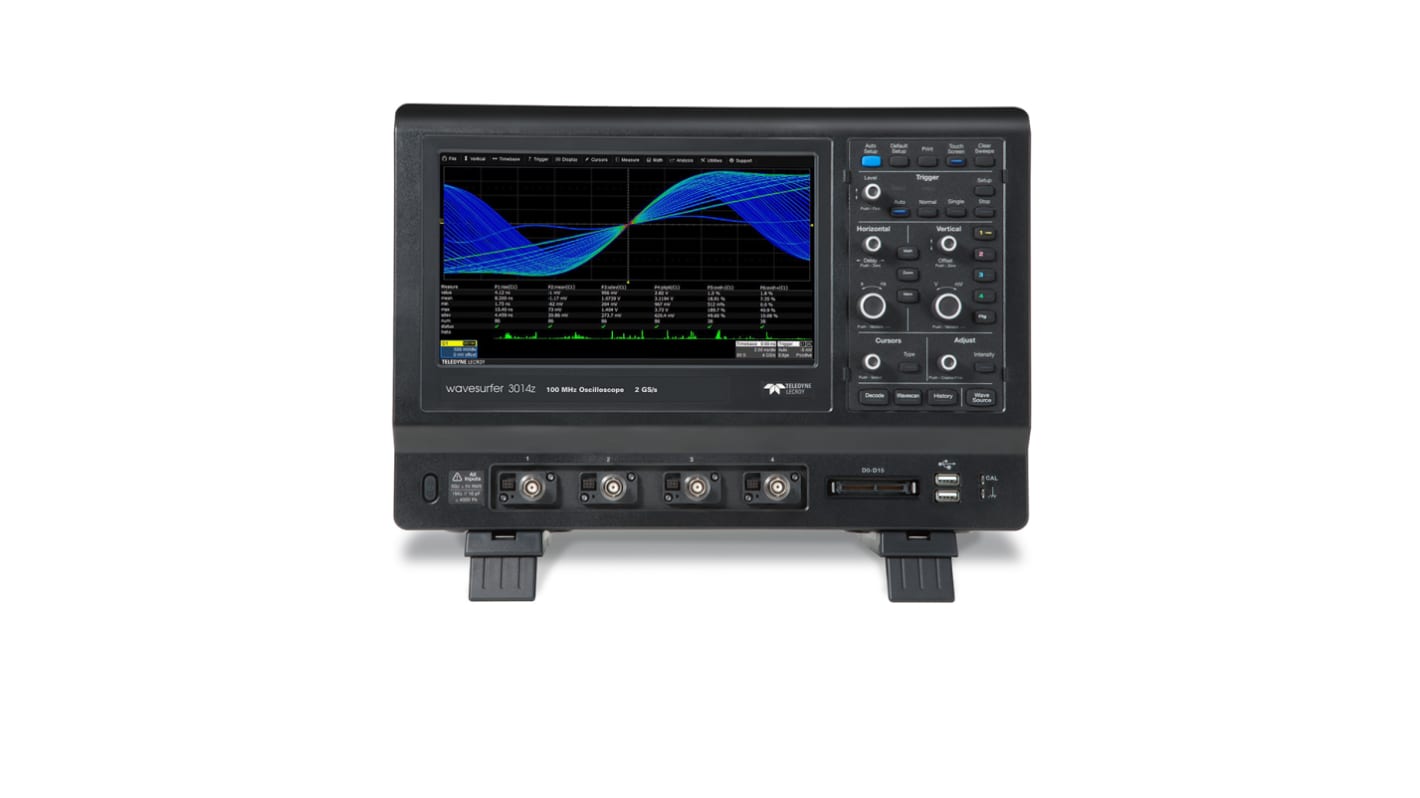

Teledyne LeCroy WaveSurfer 3000z Series WaveSurfer 3104z Oscilloscope, Bench, 4 Channels, 1GHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Teledyne LeCroy WaveSurfer 3000z Oscilloscopes

Teledyne LeCroy bring you a range of digital WaveSurfer 3000z oscilloscopes all built with a premium quality. The 3000z range of oscilloscopes provide brilliant features such as; capacitive touch screen, history mode, powerful triggering, segmented memory acquisition and advanced anomaly detection. WaveSurfer oscilloscopes are equipped with free embedded auto and function generator options as standard. The WaveSurfer range of oscilloscopes are powerful and versatile with multi-instruments and measurement capabilities to ensure they're tailored for any need. With an easy to use 10.1-inch touchscreen built for simplicity and an effortless interface, you'll find this digital oscilloscope a breeze to use. Furthermore, the WaveSurfer includes future-proofing with upgradable bandwidth and upgradable software and hardware in the field, to make your user experience that much easier. Oscilloscopes are tools used by engineers, designers, and technicians to analyse and measure complicated electronic signals. Oscilloscopes enable you to develop and verify high-performance systems and electronic designs. They are an indispensable tool in any workshop, laboratory or test station.

Features and Benefits:

  • Intuitive DSO interface for ease of use
  • 100MHz to 1GHz analogue bandwidth
  • Sample rate of up to 4GS/s
  • 16 Digital channel MSO option
  • Large memory up to 20Mpts
  • Large screen estate of 10.1 – LCD Touch screen
  • Advanced anomaly detection
  • Super-fast waveform update feature
  • History mode – Waveform update
  • WaveScan – Search and find feature
  • Protocol analysis feature
  • Optional Serial trigger and decode, for common busses including I2C, SPI, UART, CAN, CAN FD, LIN, RS232, FlexRay, Audiobus
  • Digital voltmeter and frequency counter

Applications:

The WaveSurfer 3000z digital oscilloscopes are used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are;

  • Educational laboratories
  • Electronics troubleshooting and measurement
  • Embedded electronics
  • Mixed-signal and video designing
  • Automotive electronics
  • Data analysis

Need additional accessories?

Why Teledyne LeCroy?

Teledyne LeCroy oscilloscopes and probes have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy digital oscilloscopes are covered by a 3-year manufactures warranty and probes a 1-year warranty.

Teledyne LeCroy WaveSurfer 3000z Oscilloscopes

Teledyne LeCroy bring you a range of digital WaveSurfer 3000z oscilloscopes all built with a premium quality. The 3000z range of oscilloscopes provide brilliant features such as; capacitive touch screen, history mode, powerful triggering, segmented memory acquisition and advanced anomaly detection. WaveSurfer oscilloscopes are equipped with free embedded auto and function generator options as standard. The WaveSurfer range of oscilloscopes are powerful and versatile with multi-instruments and measurement capabilities to ensure they're tailored for any need. With an easy to use 10.1-inch touchscreen built for simplicity and an effortless interface, you'll find this digital oscilloscope a breeze to use. Furthermore, the WaveSurfer includes future-proofing with upgradable bandwidth and upgradable software and hardware in the field, to make your user experience that much easier. Oscilloscopes are tools used by engineers, designers, and technicians to analyse and measure complicated electronic signals. Oscilloscopes enable you to develop and verify high-performance systems and electronic designs. They are an indispensable tool in any workshop, laboratory or test station.

Features and Benefits:

Intuitive DSO interface for ease of use 100MHz to 1GHz analogue bandwidth Sample rate of up to 4GS/s 16 Digital channel MSO option Large memory up to 20Mpts Large screen estate of 10.1 – LCD Touch screen Advanced anomaly detection Super-fast waveform update feature History mode – Waveform update WaveScan – Search and find feature Protocol analysis feature Optional Serial trigger and decode, for common busses including I2C, SPI, UART, CAN, CAN FD, LIN, RS232, FlexRay, Audiobus Digital voltmeter and frequency counter

Applications:

The WaveSurfer 3000z digital oscilloscopes are used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are; Educational laboratories Electronics troubleshooting and measurement Embedded electronics Mixed-signal and video designing Automotive electronics Data analysis

Need additional accessories?

Software packages: 174-8865, 174-8864, 863-3759, 830-3196Carry Case: 830-3203Rack mount kit: 830-3209MSO option: 830-3212Function Generator: 830-3206HV differential probe: 174-8869

Why Teledyne LeCroy?

Teledyne LeCroy oscilloscopes and probes have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy digital oscilloscopes are covered by a 3-year manufactures warranty and probes a 1-year warranty.

LeCroy Digital Oscilloscopes

Specifications
Attribute Value
Number of Channels 4
Bandwidth 1GHz
Oscilloscope Type Bench
Series WaveSurfer 3000z
Power Source Mains
Display Type LCD - Touch Screen
Minimum Vertical Sensitivity 1mV/div
Maximum Vertical Sensitivity 10V/div
Minimum Time Base 500ps/div
Screen Size 10.1in
Sample Rate Random 50 Gsps
Vertical Resolution 11 bit
Rise Time 430ps
Model Number p WaveSurfer 3104z
1 in stock for FREE next working day delivery
6 available from Europe for delivery within 2 working day(s).
Price Each
£ 9,615.00
(exc. VAT)
£ 11,538.00
(inc. VAT)
Units
Per unit
1 +
£9,615.00
Calibration Options:
