Rohde & Schwarz RTM3002 RTM3000 Series Digital Bench Oscilloscope, 2 Analogue Channels, 500MHz
- RS Stock No.:
- 174-2850
- Mfr. Part No.:
- RTM3K-52
- Brand:
- Rohde & Schwarz
Available to back order for despatch 24/06/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£9,119.16
(exc. VAT)
£10,942.99
(inc. VAT)
| Units | Per unit |
| 1 + | £9,119.16 |
- RS Stock No.:
- 174-2850
- Mfr. Part No.:
- RTM3K-52
- Brand:
- Rohde & Schwarz
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

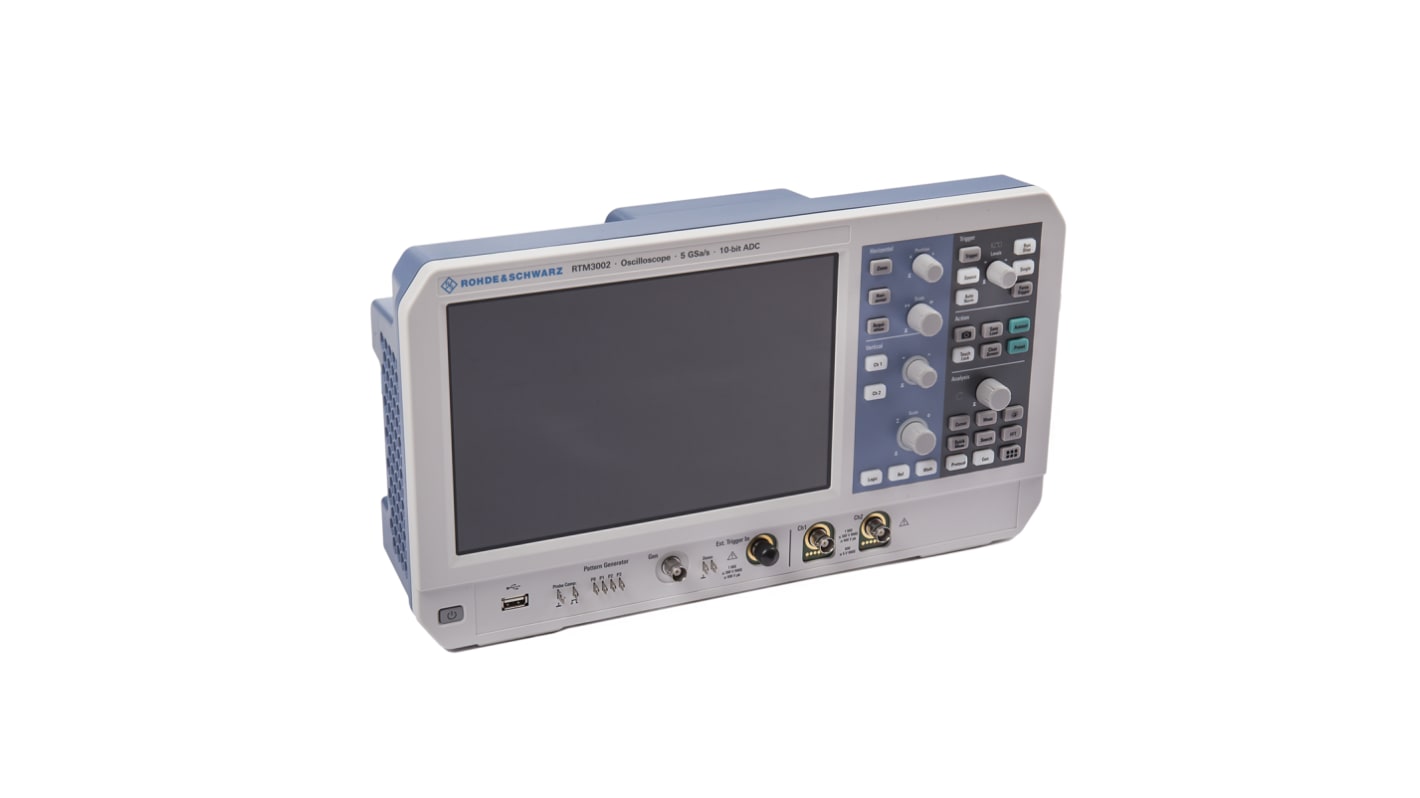

Rohde & Schwarz RTM3000 Series RTM3002 Oscilloscope
The Rohde & Schwarz RTM3000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 500MHz, memory depth up to 40M sample and sampling rate up to 5GS/s. It has a 10 bit analogue to digital converter that offers sharper waveforms with more signal details. This oscilloscope has a large capacitive touch display of 10.1in with a high resolution of 1280 x 800 pixel. It has two analogue channels and performs multiple functions like as logical and protocol analyser, waveform and pattern generator for quick and efficient analysis. This oscilloscope also acts as digital voltmeter for simultaneous and precise measurements. This instrument is an ideal choice for the power signal details up to 10 bit resolution.
Features and Benefits
• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis
• Includes probe interface suitable for all Rohde & Schwarz probes
• Touchscreen display with gesture support like smartphones
• Optional logical analyser
• Includes probe interface suitable for all Rohde & Schwarz probes
• Touchscreen display with gesture support like smartphones
• Optional logical analyser
Applications
• Educational institutes
• Used by service technicians
• R&D troubleshooting
• Production testing
• Used by service technicians
• R&D troubleshooting
• Production testing
Specifications
Attribute | Value |
|---|---|
| Bandwidth | 500MHz |
| Digital/Analogue | Digital |
| Number of Analogue Channels | 2 |
| Oscilloscope Type | Bench |
| Series | RTM3000 |
| Power Source | Mains |
| Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Display Type | Capacitive Touch Display |
| Minimum Vertical Sensitivity | 0.5mV/div |
| Maximum Vertical Sensitivity | 10V/div |
| Minimum Time Base | 0.5ns/div |
| Screen Size | 10.1in |
| Sample Rate Random | 2.5 Gsps, 5 Gsps |
| Weight | 3.3kg |
| Dimensions | 390 x 152 x 220mm |
| Vertical Resolution | 10 bit, 16 bit |
| Maximum Time Base | 500s/div |
| Plug Type | Type A - North American/Japanese 2-blade |
| Safety Category | CAT III 1000V |
| Rise Time | 700ps |
