Name: Rohde & Schwarz RTB2002 RTB2000 Series, 300MHz Bench Oscilloscope, 2 Analogue Channels - RS Calibrated
Brand: Rohde & Schwarz
SKU: 143-9372
Price: 4131.12 GBP
Availability: Discontinued

Rohde & Schwarz RTB2000 Digital Oscilloscopes

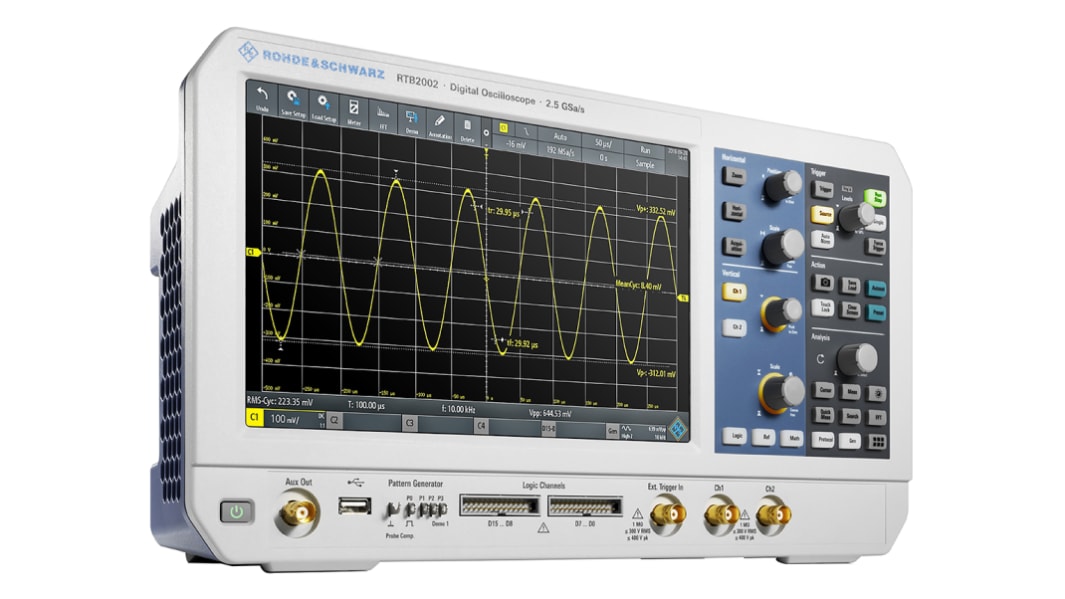

The Rhode & Schwarz RTB2000 series digital oscilloscopes offer the Power of ten: 10-bit ADC, 10 Msample memory and 10.1 inch colour touchscreen. These features ombined with smart operating concepts make the R&S®RTB2000 series the perfect tools for university laboratories, for troubleshooting embedded designs during development and for production and service departments.

This series of oscilloscopes offer the largest (10.1 inch) capacitive touch display with the highest resolution of 1280 x 800 pixel in its class. The touch screen allows quick navigation in pop-up menus, easily adjust scaling, zoom in or to move a waveform and even annotate the display and take screenshots. It works just like your smartphone touch screen.

The R&S®RTB2000 series give users more than just an oscilloscope. It also includes a logic analyser, protocol analyser, waveform and pattern generator and digital voltmeter. Dedicated operating modes for frequency analysis, mask tests and long data acquisitions are also integrated. Debugging all kinds of electronic systems is easy and efficient.

Features

10 bit vertical resolution
1 mV/div: full measurement bandwidth and low noise
10Msample standard and 20 Msample interleaved
Segmented memory: 160 Msample with history
10.1 inch high resolution capacitive touch screen with gesture support
On-screen annotation function by using your finger with screen-shot capture
Fast access to important tools
Education mode disables automatic functions for more manual control
Multilingual support

Mixed signal operation option (model dependant, also any oscilloacope can be upgraded to MSO with the RTB-B1 MSO option (RS 143-9334)

Oscilloscope Choice:

143-9311 RTB2002, 70 MHz, 2ch

143-9312 RTB2002, 70MHz, 2ch, MSO

143-9313 RTB2004, 70 MHz, 4ch

143-9315 RTB2004, 70 MHz, 4ch, MSO

143-9316 RTB2002, 100 MHz, 2ch

143-9317 RTB2004, 100 MHz, 2ch, MSO

143-9318 RTB2004, 100 MHz, 4ch

143-9319 RTB2004,100 MHz,4ch, MSO

143-9321 RTB2002, 200 MHz, 2ch

143-9322 RTB2002, 200 MHz, 2ch, MSO

143-9323 RTB2004, 200 MHz, 4ch

143-9324 RTB2004, 200 MHz, 4ch, MSO

143-9325 RTB2002, 300 MHz, 2ch

143-9326 RTB2002, 300 MHz, 2ch, MSO

143-9327 RTB2004, 300 MHz, 4ch

143-9328 RTB2004, 300 MHz, 4ch, MSO

Growth Potential

The Rohde & Schwarz RTB2000 oscilloscopes can be adapted by the installation of software updates. These updates apply to triggering and decoding of serial protocols and the history and segmented memory mode. The waveform and pattern generator and the MSO capabilities (model dependent, see below) are built-in and just need to be activated. The bandwidth can be upgraded up to 300MHz making functional retrofitting very easy.

Bandwidth Upgrades:

143-9336 RTB-B221 Upgrade 100 MHz for RTB2002
143-9337 RTB-B222 Upgrade 200 MHz for RTB2002
143-9338 RTB-B223 Upgrade 300 MHz for RTB2002
143-9339 RTB-B241 Upgrade 100 MHz for RTB2004
143-9340 RTB-B242 Upgrade 200 MHz for RTB2004
143-9341 RTB-B243 Upgrade 300 MHz for RTB2004

Trigger and Decode

143-9329 RTB-K1 I2C/SPI Trigger & Decode
143-9330 RTB-K2 UART/RS232 Trigger & Decode
143-9331 RTB-K3 CAN/LIN Trigger & Decode

History and Segmented Memory

143-9332 RTB-K15 History & Segmented Memory

Software Option Bundle

143-9333 RTB-PK1 Software Option Bundle

Mixed Signal Option

143-9334 RTB-B1 Mixed Signal Option

Function Generator

143-9335 RTB-B6 Function Generator

Front Cover and Carry Case

143-9342 RTB-Z1 Front Cover

143-9343 RTB-Z3 Carrying Case

Rohde & Schwarz RTB2000 Series Digital Oscillocopes

Select all	Attribute	Value
	Brand	Rohde & Schwarz
	Bandwidth	300MHz
	Number of Analogue Channels	2
	Calibrated	RSCAL
	Oscilloscope Type	Bench
	Oscilloscope Form	Mixed Signal
	Interface	CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random	2.5 (Interleaved) Gsps
	Screen Size	10.1in
	Series	RTB2000
	Display Type	WXGA
	Minimum Time Base	1ns/div
	Dimensions	390 x 152 x 220mm
	Weight	2.5kg
	Maximum Time Base	500s/div
	Vertical Resolution	10 bit, 16 (High Resolution Decimation Mode) bit
	Minimum Vertical Sensitivity	1mV/div
	Rise Time	<5ns
	Safety Category	CAT II 400V, CAT III 400V, CAT IV 400V
	Power Source	Mains
	Digital/Analogue	Digital
	Maximum Vertical Sensitivity	5V/div

	Select all
	Brand Rohde & Schwarz
	Bandwidth 300MHz
	Number of Analogue Channels 2
	Calibrated RSCAL
	Oscilloscope Type Bench
	Oscilloscope Form Mixed Signal
	Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random 2.5 (Interleaved) Gsps
	Screen Size 10.1in
	Series RTB2000
	Display Type WXGA
	Minimum Time Base 1ns/div
	Dimensions 390 x 152 x 220mm
	Weight 2.5kg
	Maximum Time Base 500s/div
	Vertical Resolution 10 bit, 16 (High Resolution Decimation Mode) bit
	Minimum Vertical Sensitivity 1mV/div
	Rise Time <5ns
	Safety Category CAT II 400V, CAT III 400V, CAT IV 400V
	Power Source Mains
	Digital/Analogue Digital
	Maximum Vertical Sensitivity 5V/div
