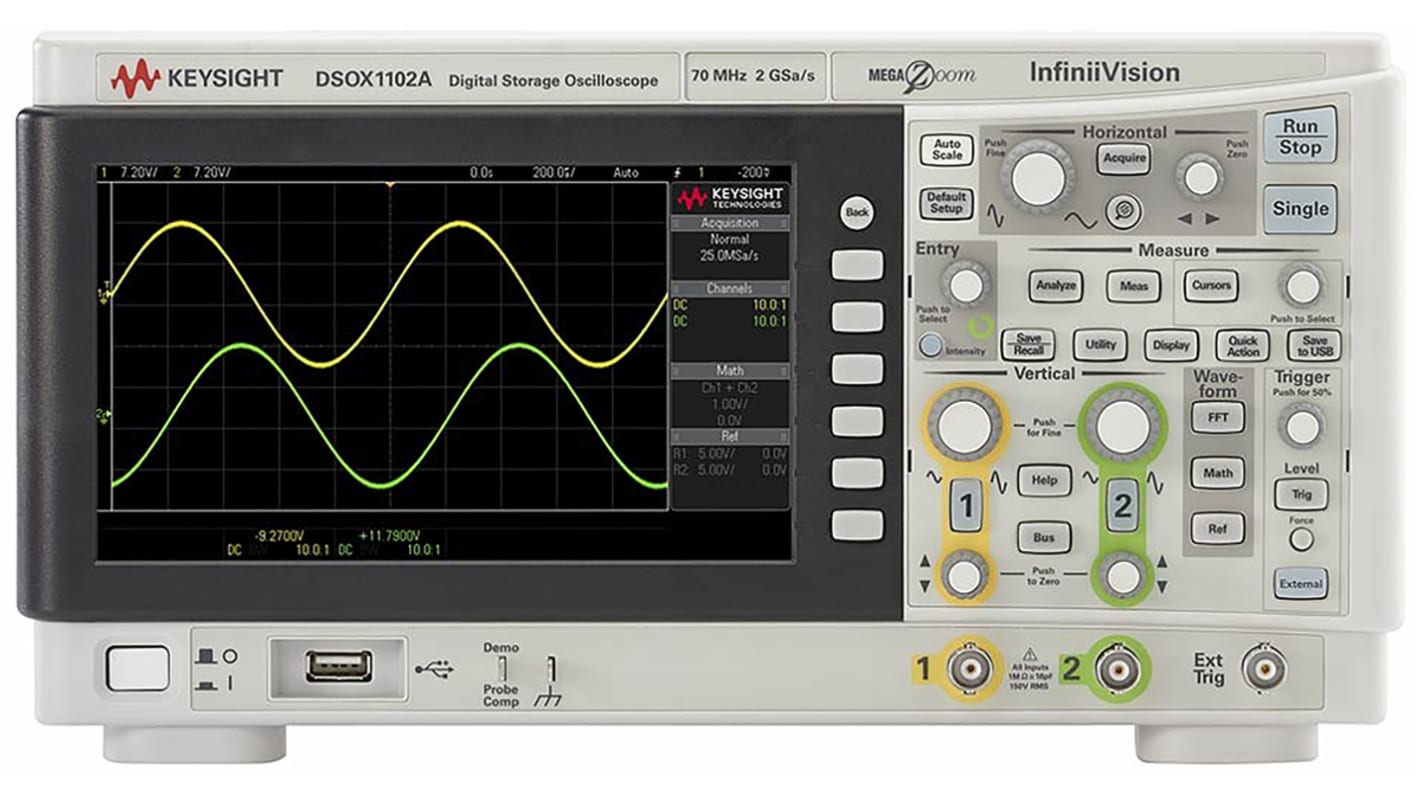

Keysight Technologies DSOX1102A 1000 X Series Bench Oscilloscope, 2 Analogue Channels, 100MHz - RS Calibrated
- RS Stock No.:
- 134-6576
- Mfr. Part No.:
- DSOX1102A + DSOX1B7T102
- Brand:
- Keysight Technologies
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£968.69
(exc. VAT)
£1,162.43
(inc. VAT)
- RS Stock No.:
- 134-6576
- Mfr. Part No.:
- DSOX1102A + DSOX1B7T102
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Bandwidth | 100MHz | |
| Number of Analogue Channels | 2 | |
| Oscilloscope Type | Bench | |
| Series | 1000 X | |
| Calibrated | RSCAL | |
| Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | |
| Power Source | Mains | |
| Display Type | TFT LCD WVGA | |
| Maximum Vertical Sensitivity | 10V/div | |
| Minimum Time Base | 5ns/div | |
| Screen Size | 7in | |
| Sample Rate Random | 2 G samples/s | |
| Record Length | 1M points/ch | |
| Length | 314mm | |
| Vertical Resolution | 8 bit | |
| Maximum Time Base | 50s/div | |
| Weight | 3.1kg | |
| Height | 130mm | |
| Dimensions | 314 x 165 x 130mm | |
| Rise Time | ≤3.5ns | |
| Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Bandwidth 100MHz | ||
Number of Analogue Channels 2 | ||
Oscilloscope Type Bench | ||
Series 1000 X | ||
Calibrated RSCAL | ||
Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | ||
Power Source Mains | ||
Display Type TFT LCD WVGA | ||
Maximum Vertical Sensitivity 10V/div | ||
Minimum Time Base 5ns/div | ||
Screen Size 7in | ||
Sample Rate Random 2 G samples/s | ||
Record Length 1M points/ch | ||
Length 314mm | ||
Vertical Resolution 8 bit | ||
Maximum Time Base 50s/div | ||
Weight 3.1kg | ||
Height 130mm | ||
Dimensions 314 x 165 x 130mm | ||
Rise Time ≤3.5ns | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
