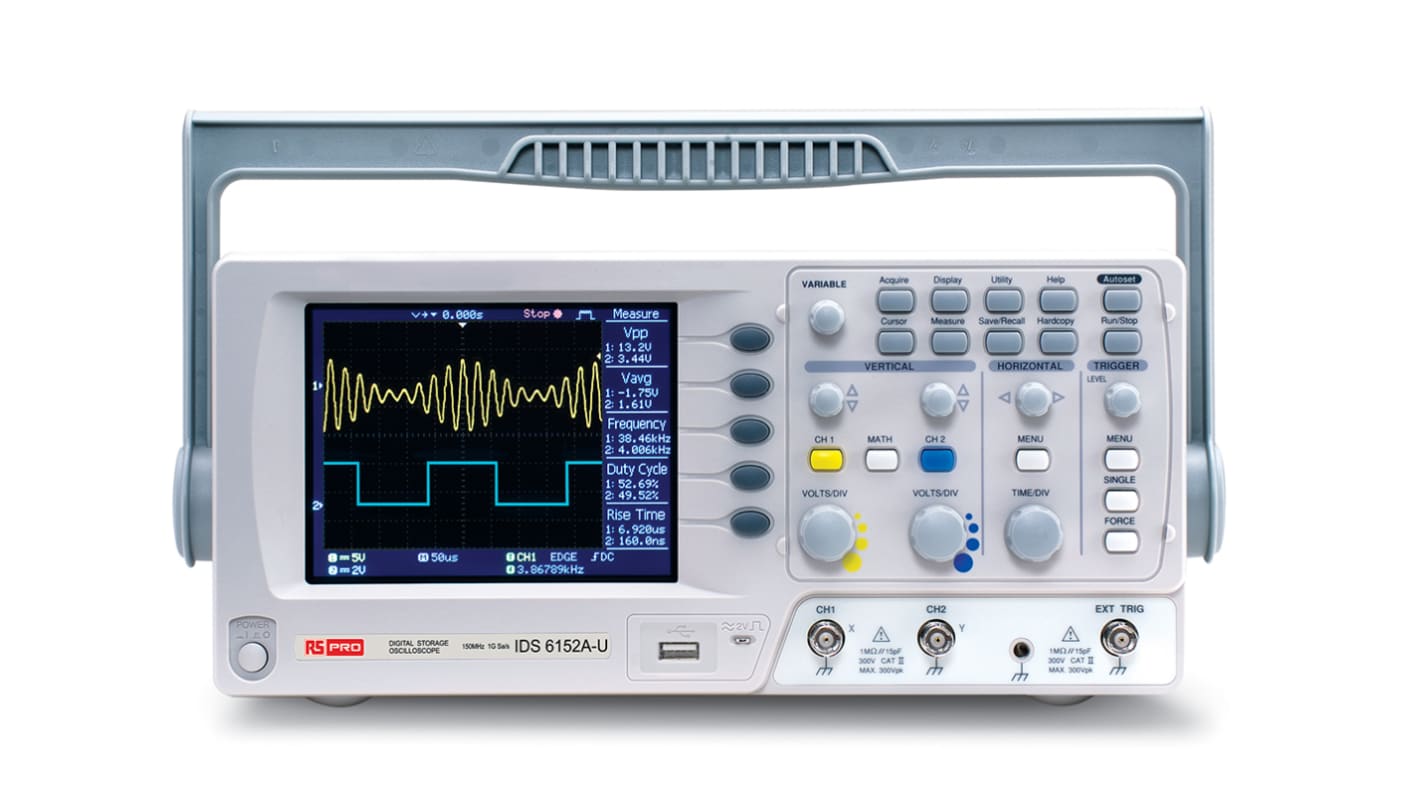

RS PRO IDS1152AU Digital Storage Oscilloscope, 2 Analogue Channels, 150MHz - UKAS Calibrated
- RS Stock No.:
- 124-0273
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-0273
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Bandwidth | 150MHz | |
| Number of Analogue Channels | 2 | |
| Oscilloscope Type | Digital Storage | |
| Series | IDS1000 | |
| Calibrated | UKAS | |
| Power Source | Mains | |
| Interface | USB | |
| Display Type | TFT LCD | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Maximum Vertical Sensitivity | 10V/div | |
| Minimum Time Base | 1ns/div | |
| Screen Size | 5.7in | |
| Sample Rate Random | 1 (Real Time) G samples/s, 25 (Equivalent) G samples/s | |
| Record Length | 2M points/ch | |
| Height | 142mm | |
| Maximum Time Base | 50s/div | |
| Dimensions | 310 x 140 x 142mm | |
| Vertical Resolution | 8 bit | |
| Weight | 2.5kg | |
| Length | 310mm | |
| Safety Category | CAT II 300 V ac/dc | |
| Safety Category Level | CAT II | |
| Safety Category Voltage | 300V ac/dc | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Bandwidth 150MHz | ||
Number of Analogue Channels 2 | ||
Oscilloscope Type Digital Storage | ||
Series IDS1000 | ||
Calibrated UKAS | ||
Power Source Mains | ||
Interface USB | ||
Display Type TFT LCD | ||
Minimum Vertical Sensitivity 2mV/div | ||
Maximum Vertical Sensitivity 10V/div | ||
Minimum Time Base 1ns/div | ||
Screen Size 5.7in | ||
Sample Rate Random 1 (Real Time) G samples/s, 25 (Equivalent) G samples/s | ||
Record Length 2M points/ch | ||
Height 142mm | ||
Maximum Time Base 50s/div | ||
Dimensions 310 x 140 x 142mm | ||
Vertical Resolution 8 bit | ||
Weight 2.5kg | ||
Length 310mm | ||
Safety Category CAT II 300 V ac/dc | ||
Safety Category Level CAT II | ||
Safety Category Voltage 300V ac/dc | ||
- COO (Country of Origin):
- TW
RS PRO Digital Storage Oscilloscopes (DSO)
RS PRO series operates at 150 or 70 MHz with a real-time sampling rate of 1GSa/s. It is able to overcome the problems associated with memory constraints. High sample rates can be maintained over longer lengths of time without effecting performance.
Options available:
Options available:
Features and Benefits:
150/70 MHz Bandwidth, 2 Input Channels
1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling Rate
2 Mega-point Record Length
2 mV to 10 V Vertical Scale
1 ns to 50s Horizontal Range
Up to 27 Automatic Measurements
5.7" Colour TFT LCD Display
USB Host and Device Ports
Go/NoGo Function
Data Logger
1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling Rate
2 Mega-point Record Length
2 mV to 10 V Vertical Scale
1 ns to 50s Horizontal Range
Up to 27 Automatic Measurements
5.7" Colour TFT LCD Display
USB Host and Device Ports
Go/NoGo Function
Data Logger
Typical Applications
Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.
- Laboratories
- Educational establishments
- Product testing and Quality Assurance
- Service operation and post-sales support
- Product development and debugging
FAQs
Are calibration options available for this series?
Yes, calibration versions are available for some markets.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Yes, calibration versions are available for some markets.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
