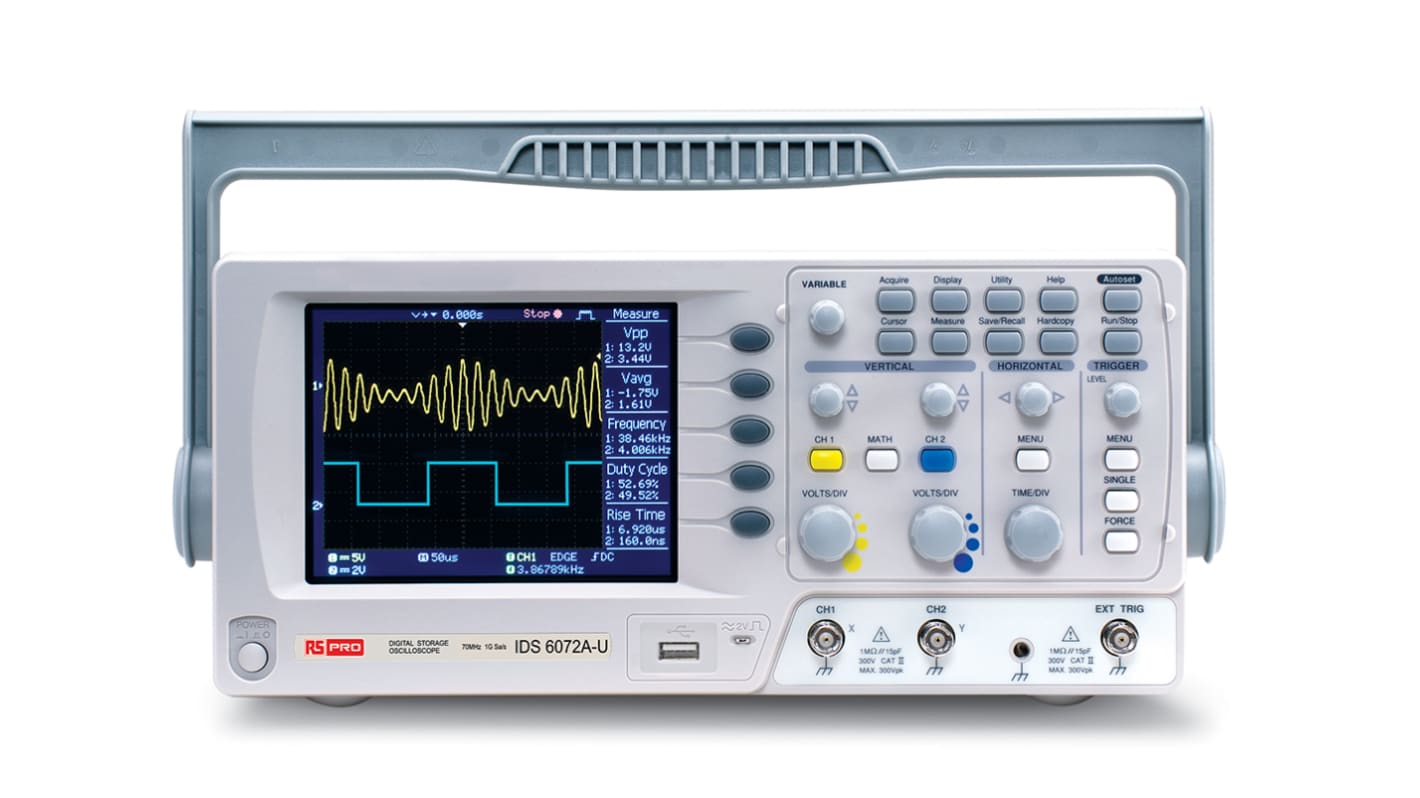

Name: RS PRO IDS6072AU, 70MHz Portable Oscilloscope, 2 Analogue Channels
Brand: RS PRO
SKU: 124-0229
Price: 494.14 GBP
Availability: Discontinued

RS PRO Digital Storage Oscilloscopes (DSO)

RS PRO series operates at 150 or 70 MHz with a real-time sampling rate of 1GSa/s. It is able to overcome the problems associated with memory constraints. High sample rates can be maintained over longer lengths of time without effecting performance.

Options available:

124-0229 - Oscilloscope, Digital Storage, 2 Channels, 70MHz

124-0230 - Oscilloscope, Digital Storage, 2 Channels, 150MHz

Features and Benefits:

150/70 MHz Bandwidth, 2 Input Channels
1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling Rate
2 Mega-point Record Length
2 mV to 10 V Vertical Scale
1 ns to 50s Horizontal Range
Up to 27 Automatic Measurements
5.7" Colour TFT LCD Display
USB Host and Device Ports
Go/NoGo Function
Data Logger

Typical Applications

Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

Laboratories

Educational establishments

Product testing and Quality Assurance

Service operation and post-sales support

Product development and debugging

FAQs

Are calibration options available for this series?

Yes, calibration versions are available for some markets.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

RS Pro

Select all	Attribute	Value
	Brand	RS PRO
	Bandwidth	70MHz
	Number of Analogue Channels	2
	Oscilloscope Type	Portable
	Interface	USB
	Oscilloscope Form	Digital Storage
	Sample Rate Random	1 Gsps, 25 Gsps
	Screen Size	5.7in
	Record Length	2M points
	Power Source	Mains
	Display Type	TFT LCD
	Vertical Resolution	8 bit
	Digital/Analogue	Digital
	Length	310mm
	Minimum Vertical Sensitivity	2mV/div
	Weight	2.5kg
	Safety Category Level	CAT II
	Safety Category Voltage	300V
	Dimensions	310 x 140 x 142mm
	Height	142mm
	Rise Time	5ns
	Safety Category	CAT II 300V
	Minimum Time Base	1ns/div
	Maximum Time Base	50s/div
	Maximum Vertical Sensitivity	10V/div
