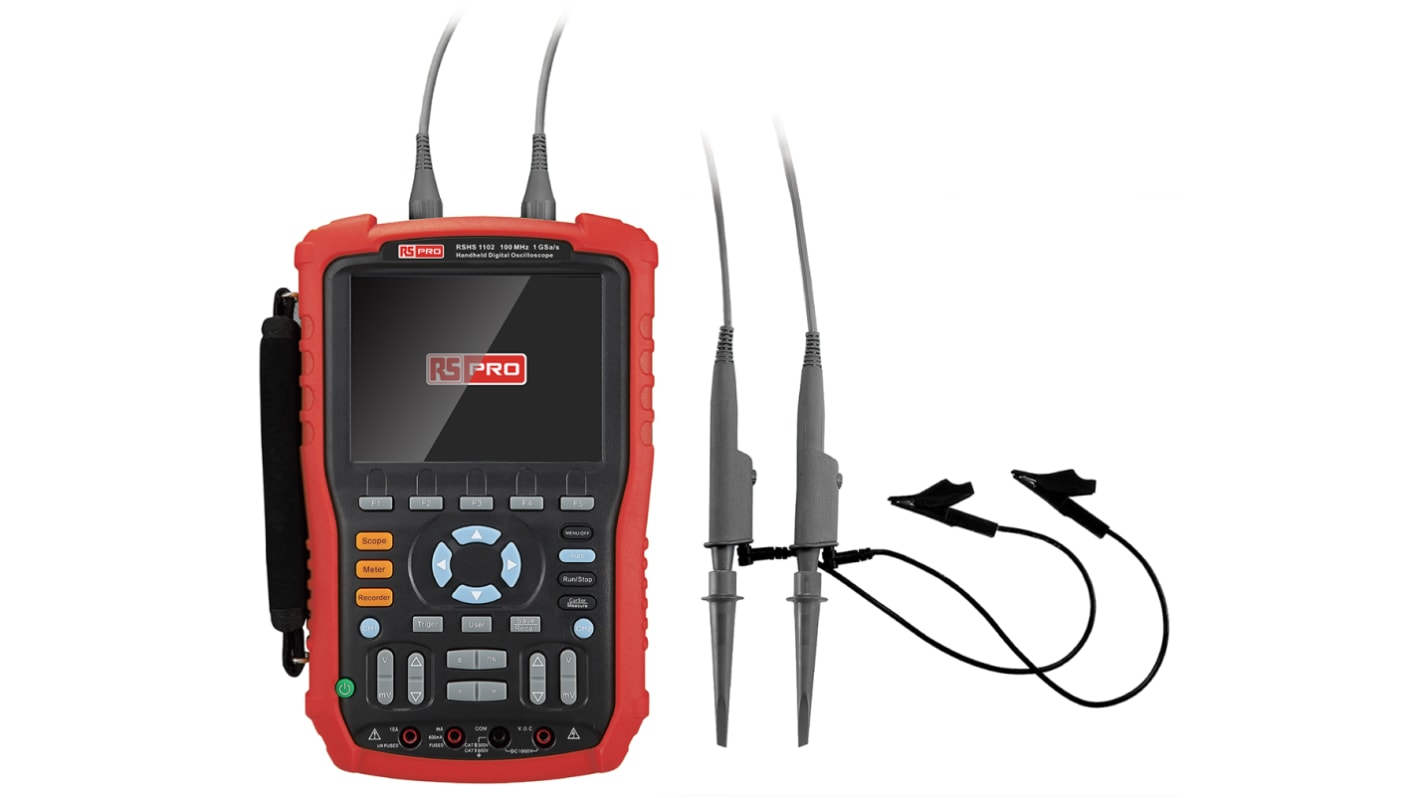

RS PRO RSHS1102 Digital Handheld Oscilloscope, 2 Analogue Channels, 100MHz - UKAS Calibrated
- RS Stock No.:
- 123-6524
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 123-6524
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Bandwidth | 100MHz | |
| Number of Analogue Channels | 2 | |
| Digital/Analogue | Digital | |
| Oscilloscope Form | Digital Storage | |
| Oscilloscope Type | Handheld | |
| Series | RSHS1000 | |
| Calibrated | UKAS | |
| Power Source | Battery, Mains | |
| Interface | USB | |
| Display Type | TFT LCD | |
| Minimum Vertical Sensitivity | 5mV/div | |
| Maximum Vertical Sensitivity | 100V/div | |
| Minimum Time Base | 2.5ns/div | |
| Screen Size | 144.8mm | |
| Sample Rate Random | 1 (Real Time) G samples/s, 50 (Equivalent) G samples/s | |
| Maximum Time Base | 50s/div | |
| Vertical Resolution | 8 bit | |
| Dimensions | 259.5 x 163.2 x 53.3mm | |
| Record Length | 2M points/ch | |
| Weight | 1.5kg | |
| Battery Life | 4 h | |
| Battery Type | Rechargeable Battery | |
| Safety Category | CAT II 1000 V, CAT II 300 V, CAT II 600 V, CAT III 150 V, CAT III 300 V, CAT III 600V | |
| Rise Time | <3.5ns | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Bandwidth 100MHz | ||
Number of Analogue Channels 2 | ||
Digital/Analogue Digital | ||
Oscilloscope Form Digital Storage | ||
Oscilloscope Type Handheld | ||
Series RSHS1000 | ||
Calibrated UKAS | ||
Power Source Battery, Mains | ||
Interface USB | ||
Display Type TFT LCD | ||
Minimum Vertical Sensitivity 5mV/div | ||
Maximum Vertical Sensitivity 100V/div | ||
Minimum Time Base 2.5ns/div | ||
Screen Size 144.8mm | ||
Sample Rate Random 1 (Real Time) G samples/s, 50 (Equivalent) G samples/s | ||
Maximum Time Base 50s/div | ||
Vertical Resolution 8 bit | ||
Dimensions 259.5 x 163.2 x 53.3mm | ||
Record Length 2M points/ch | ||
Weight 1.5kg | ||
Battery Life 4 h | ||
Battery Type Rechargeable Battery | ||
Safety Category CAT II 1000 V, CAT II 300 V, CAT II 600 V, CAT III 150 V, CAT III 300 V, CAT III 600V | ||
Rise Time <3.5ns | ||
- COO (Country of Origin):
- CN
