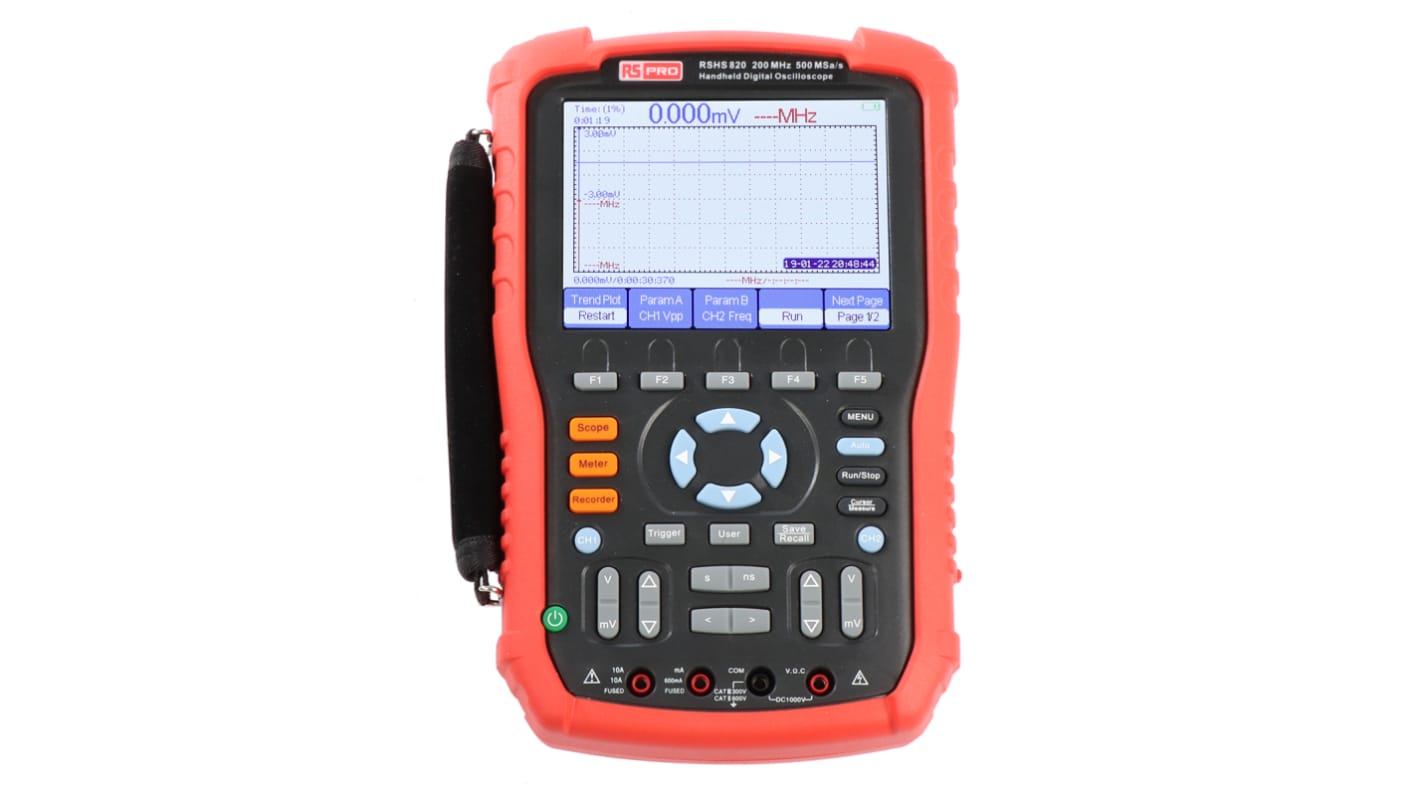

RS PRO RSHS820 Oscilloscope, Handheld, 2 Channels, 200MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro RSHS800 Series Handheld Digital Oscilloscopes

RS Pro RSHS800 Series handheld digital oscilloscopes provide oscilloscope, multimeter and recorder (including trends and waveform) functions all in one package. The choice of model is between 60 MHz ( 123-6454 ), 100 MHz ( 123-6455 ), 150 MHz ( 123-6456 ) & 200 MHz ( 123-6457 ) bandwidths. These instruments offer stable performance combined with high performance. They have the flexibility in use for both workbench and field applications.

Features and Benefits

Dual-input oscilloscope, multimeter and recorder (including TrendPlot and waveform) in one instrument
Input voltage through BNC up to CATⅡ 300V and CAT Ⅲ 150V
Standard probe 10X CATⅡ 400 V
Oscilloscope and multimeter safety grade up to CATⅡ 600 V and CAT Ⅲ 300 V
5.7 inch TFT colour LCD display
1GSa/s real-time sampling rate single channel, up to 50GSa/s equivalent sampling rate, 2 Mpts memory depth
With 6000 dots display resolution multimeter provides measurements of DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity
Supports Scope TrendPlot, Meter TrendPlot, Scope Recorder
Trigger modes Automatic , Normal and Single Trigger types: Edge, Pulse, Video, Slope, Alternative
32 automatic measurements, 3 cursor measure modes
4 digital filter mode - Low pass, High pass, Band pass, Band limit
Math functions +, - , ´, ÷, FFT operations
Multiple language user interface
Standard configuration interface USB Device, USB Host
Supports USB storage and update, supports PC remote control and PictBridge print
Rechargeable battery pack (compact, portable fit for outdoor operation)
Dimensions 259.5 x 163.2 x 53.3 mm
Weight 1.5 kg

Areas of Application

Outdoor measure
Circuit measure
Wind power, PV power and other new energy equipment test
Automotive electron, electric automobile test
Electric power system, strong electricity test
Industry scenes electric debug testing and measuring
Education and science research
Quality control

Supplied with

USB cable, quick start guide, product qualification certificate, multimeter pen (1000 V), 1:1 / 10:1 probe (1 per channel), CD (containing EasyScope PC software), power adapter

RS Pro

Specifications
Attribute Value
Number of Channels 2
Bandwidth 200MHz
Oscilloscope Type Handheld
Power Source Battery, Mains
Display Type TFT LCD
Minimum Vertical Sensitivity 2mV/div
Maximum Vertical Sensitivity 100V/div
Minimum Time Base 2.5ns/div
Screen Size 5.7in
Sample Rate Random 500 MSa/s
Battery Type Rechargeable Li-Ion
Model Number p RSHS820
Safety Category CAT II 1000 V, CAT II 300 V, CAT II 400 V, CAT II 600 V, CAT III 150 V, CAT III 300 V, CAT III 600 V
Rise Time 1.7ns
Safety Category Level CAT II, CAT III
Safety Category Voltage 150 V, 300 V, 400 V, 600 V, 1000 V
Vertical Resolution 8 bit
22 In stock for FREE next working day delivery
Price Each
£ 673.37
(exc. VAT)
£ 808.04
(inc. VAT)
Units
Per unit
1 +
£673.37
Calibration Options:
