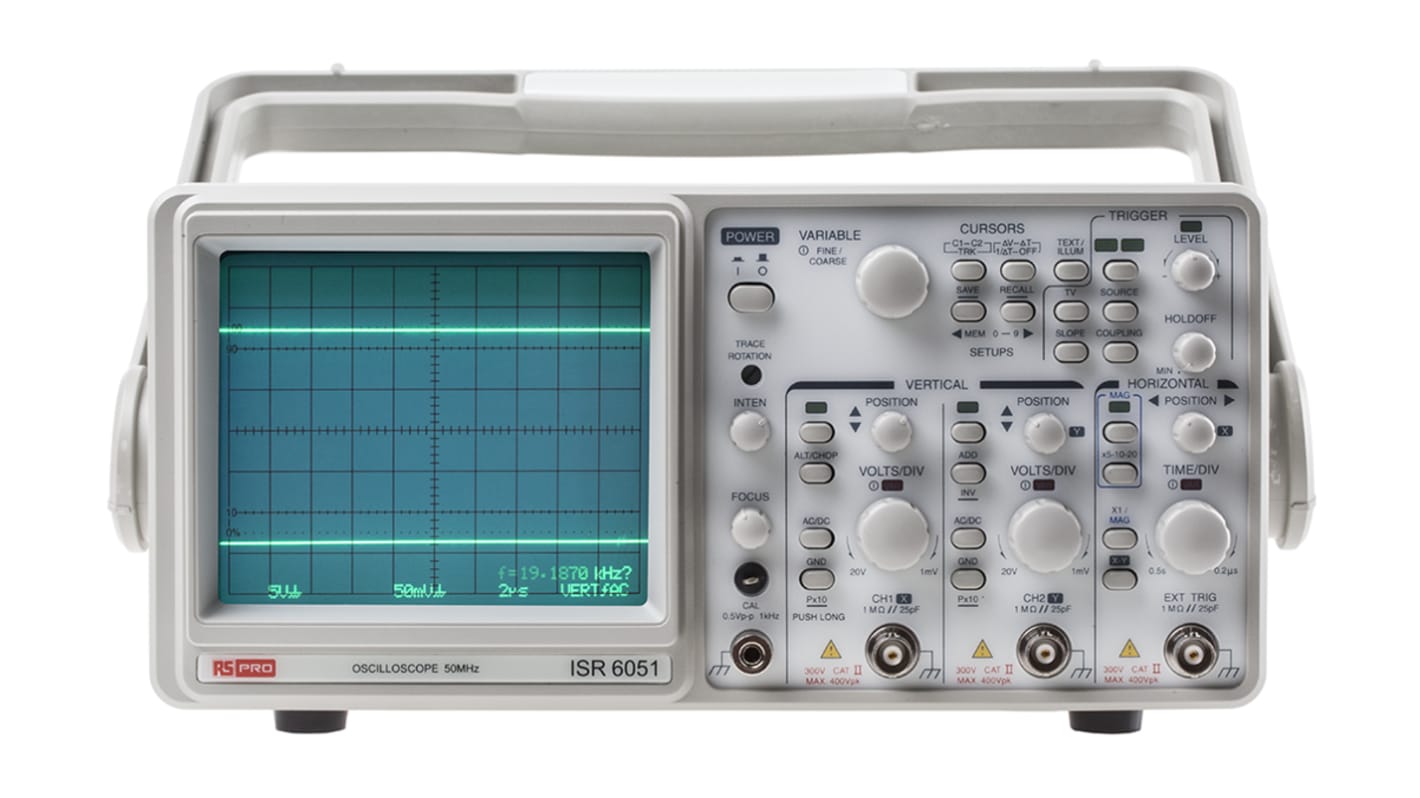

RS PRO ISR6051 Oscilloscope, 2 Analogue Channels, 50MHz - RS Calibrated

As a traditional analog oscilloscope, RS Pro ISR-6051 can immediately represent a waveform on its 6 inch CRT display. The benefit is a faster update rate. A digital storage oscilloscope needs to digitally sample a signal before that signal can be displayed. An analog oscilloscope displays the signal in real-time, with less risk of modifying any part of the original signal. Its ability to measure waveform intensity makes the analog oscilloscope an instrument of choice in some fields e.g. TV and video. The RS Pro ISR-6051 has a built-in 6-digit frequency counter, cursor and numerical readouts, making waveform observation and measurement fast and accurate. Setup save/recall enable regular setups to be recalled for ease-of-use and for production test applications.

Rise time 7/ 50 ns
8 x 10 1 cm divisions
Cursor readout measurement of ΔV, ΔT, 1/ΔT
50 Hz to 50 MHz frequency counter, 6-digits, accuracy ±0.01%
MEM save/recall of up to 10 front panel setups
TV sync triggering for automatic linear focus maintains optimum beam focus
Variable trigger hold off for stable display of periodic waveforms
ALT MAG functions (x5, x10, x20)
Trigger modes Auto, Norm, TV field and TV line
Sensitivity 1 mV to 20 V/div in 14 steps
Timebase 0.2 μs to 0.5 sec/div in 20 steps
400 V (dc + ac peak) maximum input to CH1 and CH2
Constructed to EN61010-1 (safety standard) 300V Cat II

Mains lead, instruction manual

The RS PRO 50MHz analogue oscilloscope has a built-in 6-digit frequency counter, cursor and numerical readouts, making waveform observation and measurement fast and accurate. It has 2 analogue channels. Set-up saves/recall enable regular set-up to be recalled for ease-of-use and production test applications. Elusive signal details can be revealed using the ALTMAG function to magnify signals (x5, x10x 30).
A digital storage oscilloscope needs to digitally sample a signal before that signal can be displayed. An analogue oscilloscope displays the signal in real-time, with less risk of modifying any part of the original signal. Its ability to measure waveform intensity makes the analogue oscilloscope an instrument of choice in some fields e. G. TV and video.

• 400V (dc + ac peak) maximum input to CH1 and CH2
• 8 x 10 1cm divisions
• Bandwidth is 50MHz
• Constructed to EN61010-1 (safety standard) 300V Cat II
• Cursor readout measurement of ΔV, ΔT, 1/ΔT
• Rise time 7/ 50ns
• Sensitivity 1mV to 20V/div in 14 steps
• Timebase 0.2μs to 0.5 sec/div in 20 steps
• Trigger modes Auto, Norm, TV field and TV line
• TV sync triggering for automatic linear focus maintains optimum beam focus
• Variable trigger hold off for stable display of periodic waveforms

• Audio and video recording equipment
• Designing
• Research & Development
• Testing in manufacturing
• Testing of signals voltage in radio broadcasting equipment
• Testing signal voltage in-circuit debugging

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007 standards.
