Advanced software algorithms deconstruct the waveform into protocol information, then overlay the decoded data on the waveform. Decode information condenses or expands depending on the timebase/ ratio setting, so understanding messages is easy. Various sections of the protocol are colour-coded to make it easy to understand, a particular benefit for users new to SPI serial data. The decode operation is fast - even with long acquisitions. Users can choose to decode into Hex, Binary or ASCII formats.

SPI trigger and decode

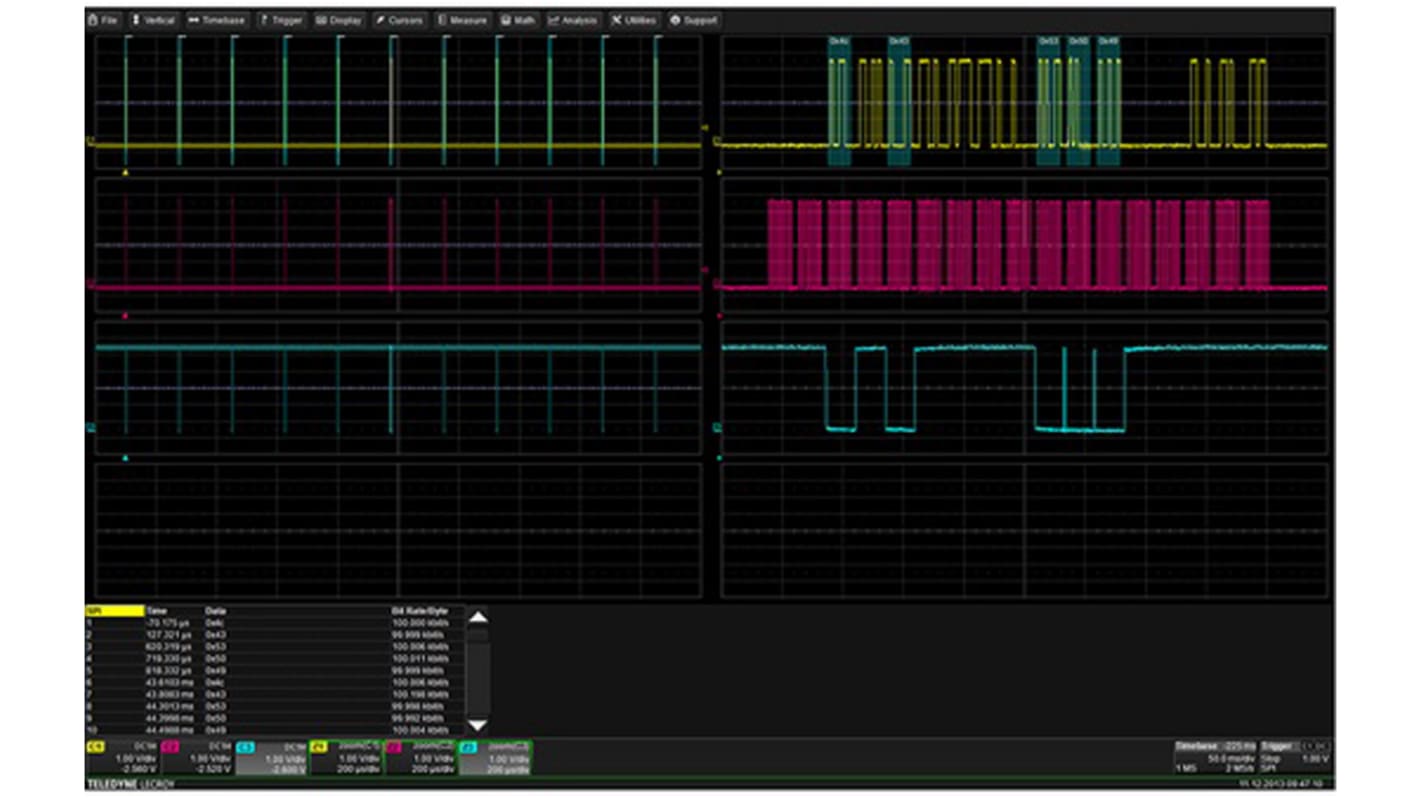

Colour-coded decode overlaid on the waveform is intuitive and easy to read
Powerful and flexible conditional DATA triggering
Hex, Binary or ASCII decoding
Decode information expands as the timebase is adjusted or zoomed
Convenient table display with quick "zoom to message" capability
Quick search capability for specific messages
Decode does not require clock trace to be displayed
