MPN

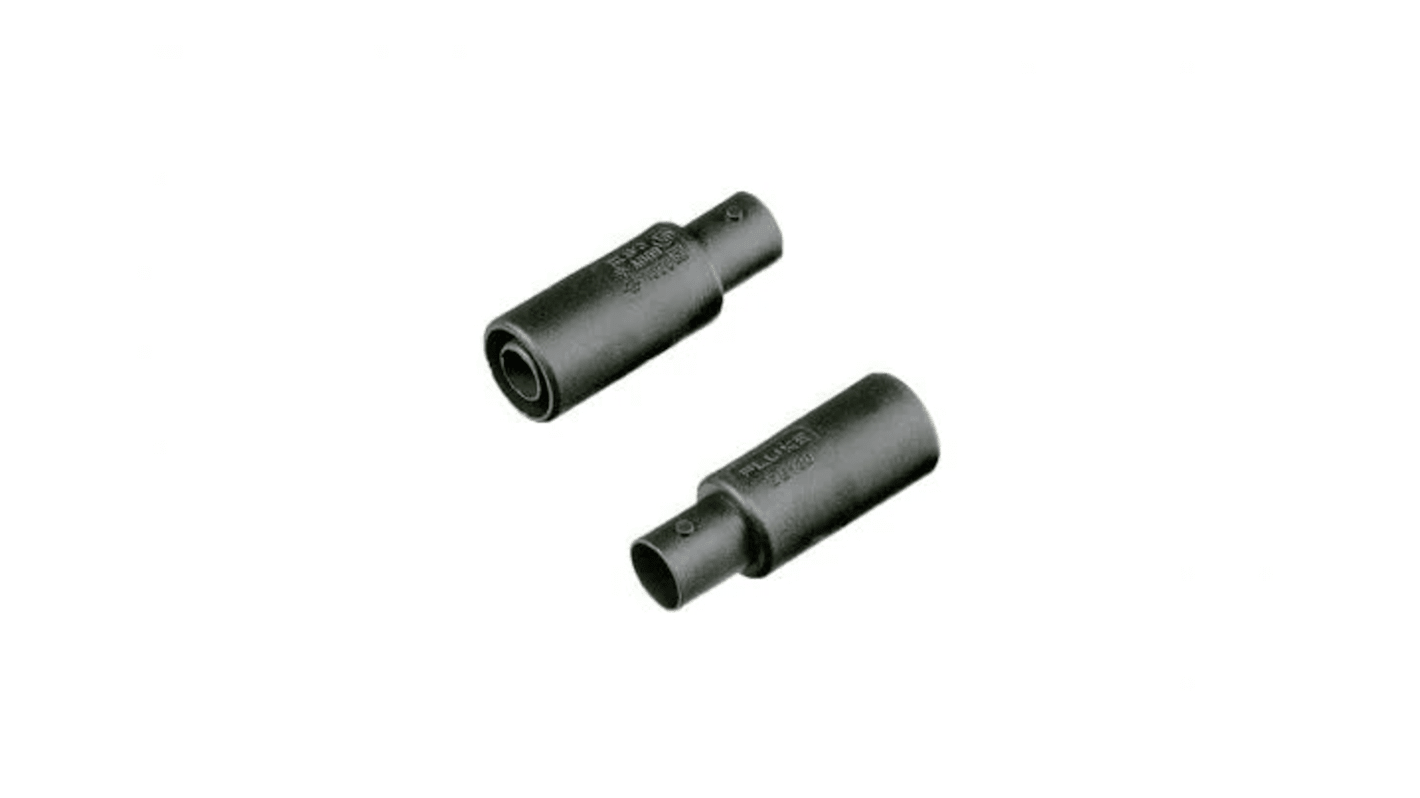

Fluke BB 120 Banana to BNC Female for Use with 43B Power Quality Analyzer, Scope Meter 120 Series Mixed Signal

RS Stock No.:: 261-2802
Mfr. Part No.:: BB120-IV
Brand:: Fluke

Fluke BB 120 Banana to BNC Female for Use with 43B Power Quality Analyzer, Scope Meter 120 Series Mixed Signal

Subtotal (1 unit)*

£62.00

(exc. VAT)

£74.40

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 25 unit(s) shipping from 10 August 2026
Plus 12 unit(s) shipping from 10 August 2026
Plus 30 unit(s) shipping from 26 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£62.00

*price indicative

RS Stock No.:: 261-2802
Mfr. Part No.:: BB120-IV
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Oscilloscope Adapter
	Adapter Type	Banana to BNC Female
	Oscilloscope Type	Mixed Signal
	For Use With	43B Power Quality Analyzer, Scope Meter 120 Series
	Model Number	BB 120
	Standards/Approvals	IEC 1010-02-031

	Select all
	Brand Fluke
	Product Type Oscilloscope Adapter
	Adapter Type Banana to BNC Female
	Oscilloscope Type Mixed Signal
	For Use With 43B Power Quality Analyzer, Scope Meter 120 Series
	Model Number BB 120
	Standards/Approvals IEC 1010-02-031

Datasheet - BB120-IV

RoHS Status: Exempt

COO (Country of Origin):: DE

Fluke Oscilloscope Adapter, Banana to BNC Female Adapter Type, Mixed Signal Oscilloscope Compatibility - BB120-IV

This oscilloscope adaptor converts banana connections to a BNC female interface, enabling connection between mixed-signal scopes and instruments operating with banana plugs. It is intended for use with mixed-signal oscilloscopes and compatible field instruments, providing a straightforward interface for signal acquisition in diagnostic and measurement workflows.

Features and Benefits:

• Compatible with mixed-signal oscilloscopes for signal integrity
• Rated to the IEC 1010-02-031 safety standard for use assurance
• Connects banana plugs to BNC female sockets for flexible interfacing
• Designed for use with 43B Power Quality Analyser and ScopeMetre 120 range
• Compact form factor enabling quick field hook-ups

Applications

• Suitable for linking ScopeMetre 120 series to BNC-equipped equipment
• Used with 43B Power Quality Analyser for waveform inspection
• Ideal for converting banana-plug leads to oscilloscope inputs
• Can be used for on-site mixed-signal measurements and diagnostics

Which instruments can it interface with directly?

It mates banana-plug leads to BNC female inputs, allowing direct connection to instruments that accept BNC terminations and banana-probed measurements.

What safety considerations apply when using it in the field?

The adaptor meets IEC 1010-02-031 requirements, ensuring it conforms to the specified electrical and insulation safety characteristics for handheld and portable measurement tools.

How does it support mixed-signal measurement setups?

By converting banana connections to a BNC female interface, it permits analogue channels from banana-equipped probes to feed into mixed-signal oscilloscope inputs for simultaneous analogue and digital capture.
