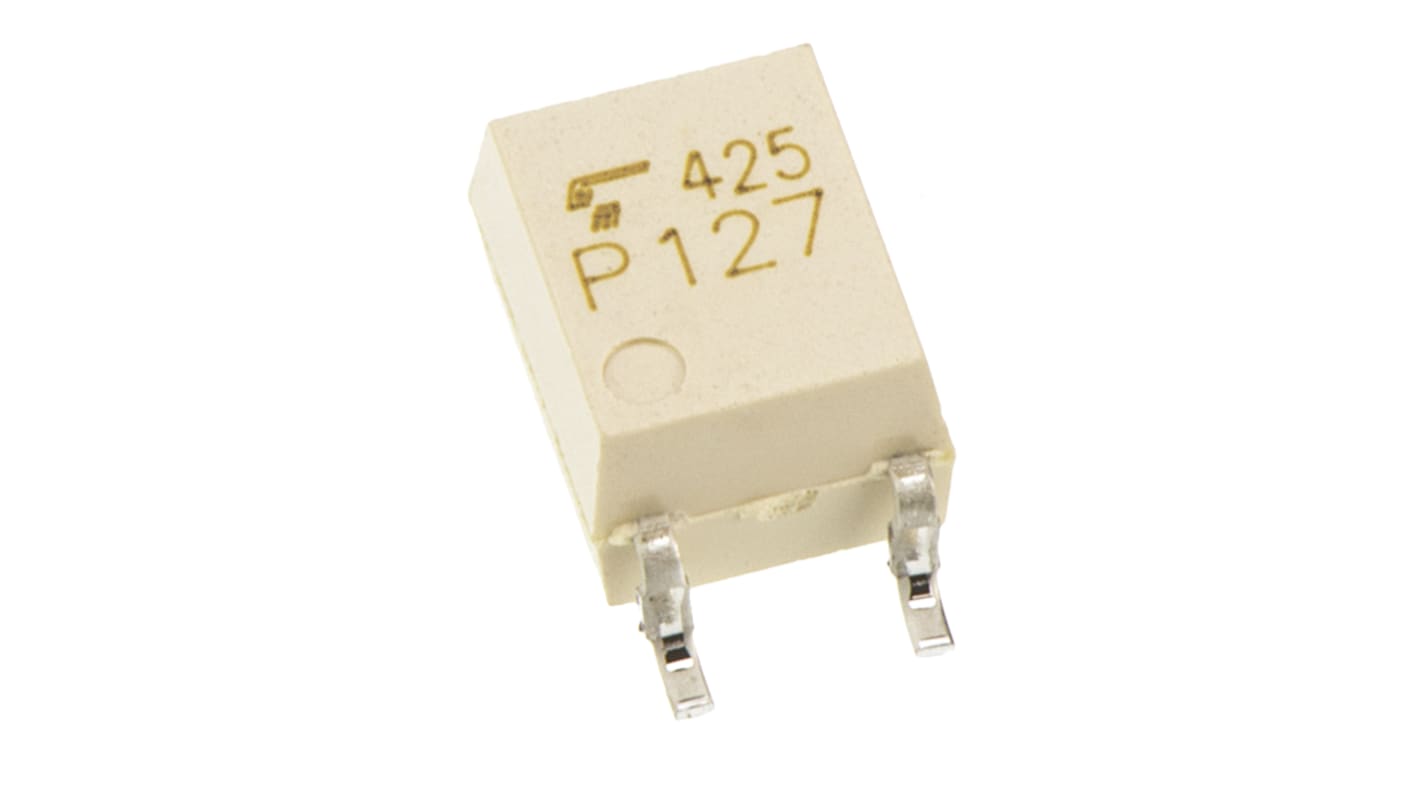

Toshiba, TLP293(BL,E(T DC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin SO4
- RS Stock No.:
- 885-1023
- Mfr. Part No.:
- TLP293(BL,E(T
- Brand:
- Toshiba
200 In stock - FREE next working day delivery available
25 available from Europe for delivery within 5 working day(s).
Price Each (In a Pack of 25)
£0.219
(exc. VAT)
£0.263
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 225 | £0.219 | £5.475 |
| 250 - 600 | £0.201 | £5.025 |
| 625 - 1225 | £0.182 | £4.55 |
| 1250 - 2475 | £0.169 | £4.225 |
| 2500 + | £0.166 | £4.15 |
| *price indicative | ||
- RS Stock No.:
- 885-1023
- Mfr. Part No.:
- TLP293(BL,E(T
- Brand:
- Toshiba
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
Photocoupler, Transistor Output, TLP291/TLP293 Series
TLP291 and TLP293 series single photocouplers with transistor output from Toshiba.
The Toshiba TLP293 is a low input and high isolation type Photocoupler that consists of a phototransistor optically coupled to an infrared LED in a SO4 package. It is guaranteed high isolation voltage (3750 Vrms) and wide operating temperature (Ta = -55 to 125 c), it is suitable for high density surface mounting applications such as programmable controllers.
Collector-emitter voltage: 80 V (min)
Current transfer ratio: 50 % (min) (@I
F = 0.5 mA, VCE = 5 V)
GB Rank: 100 % (min) (@I
F = 0.5 mA, VCE = 5 V)
Isolation voltage: 3750 Vrms (min)
Operating temperature: -55 to 125
Current transfer ratio: 50 % (min) (@I
F = 0.5 mA, VCE = 5 V)
GB Rank: 100 % (min) (@I
F = 0.5 mA, VCE = 5 V)
Isolation voltage: 3750 Vrms (min)
Operating temperature: -55 to 125
Optocouplers, Toshiba
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | Phototransistor |
| Maximum Forward Voltage | 1.4V |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Package Type | SO4 |
| Input Current Type | DC |
| Typical Rise Time | 2µs |
| Maximum Input Current | 50 mA |
| Isolation Voltage | 3750 Vrms |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3µs |
| Series | TLP 293 |
| Special Features | Suitable for High-Density Surface Mounting Applications Such as Small Switching Power Supplies And Programmable Controllers, TLP293 Consists of a Low Input Type Photo Transistor Optically Coupled to an InGaAs Infrared Emitting Diode, Very Small And Thin C |
- RS Stock No.:
- 885-1023
- Mfr. Part No.:
- TLP293(BL,E(T
- Brand:
- Toshiba
