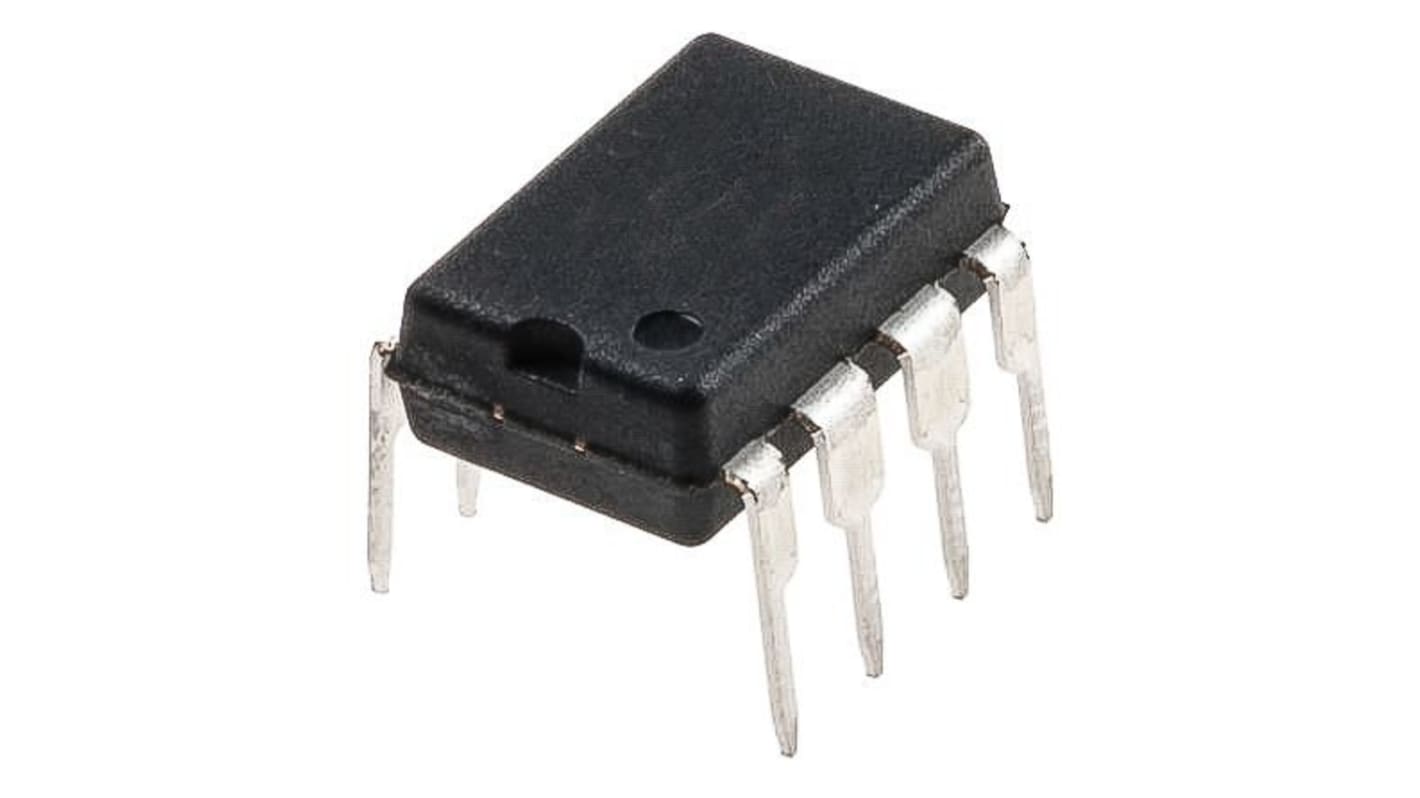

Renesas, PS9587-AX DC Input Photodiode Output Optocoupler, Through Hole, 8-Pin DIP
- RS Stock No.:
- 261-5966
- Mfr. Part No.:
- PS9587-AX
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.69
(exc. VAT)
£4.428
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £1.845 | £3.69 |
| 10 - 18 | £1.315 | £2.63 |
| 20 - 98 | £1.285 | £2.57 |
| 100 - 248 | £1.065 | £2.13 |
| 250 + | £1.035 | £2.07 |
*price indicative
- RS Stock No.:
- 261-5966
- Mfr. Part No.:
- PS9587-AX
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Mounting Type | Through Hole | |
| Output Device | Photodiode | |
| Maximum Forward Voltage | 1.8V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | DIP | |
| Input Current Type | DC | |
| Series | PS | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Mounting Type Through Hole | ||
Output Device Photodiode | ||
Maximum Forward Voltage 1.8V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type DIP | ||
Input Current Type DC | ||
Series PS | ||
- COO (Country of Origin):
- JP
The Renesas PS9587-AX is an optical coupled isolators containing an AlGaAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. It is designed specifically for high common mode transient immunity (CMR) and are suitable for high speed logic interface that needs long creepage distance (8 mm) on mounting.
Maximum forward voltage= 1.8 V
Maximum input current= 0.012 A
Isolation voltage=5 kVrms
Maximum input current= 0.012 A
Isolation voltage=5 kVrms
