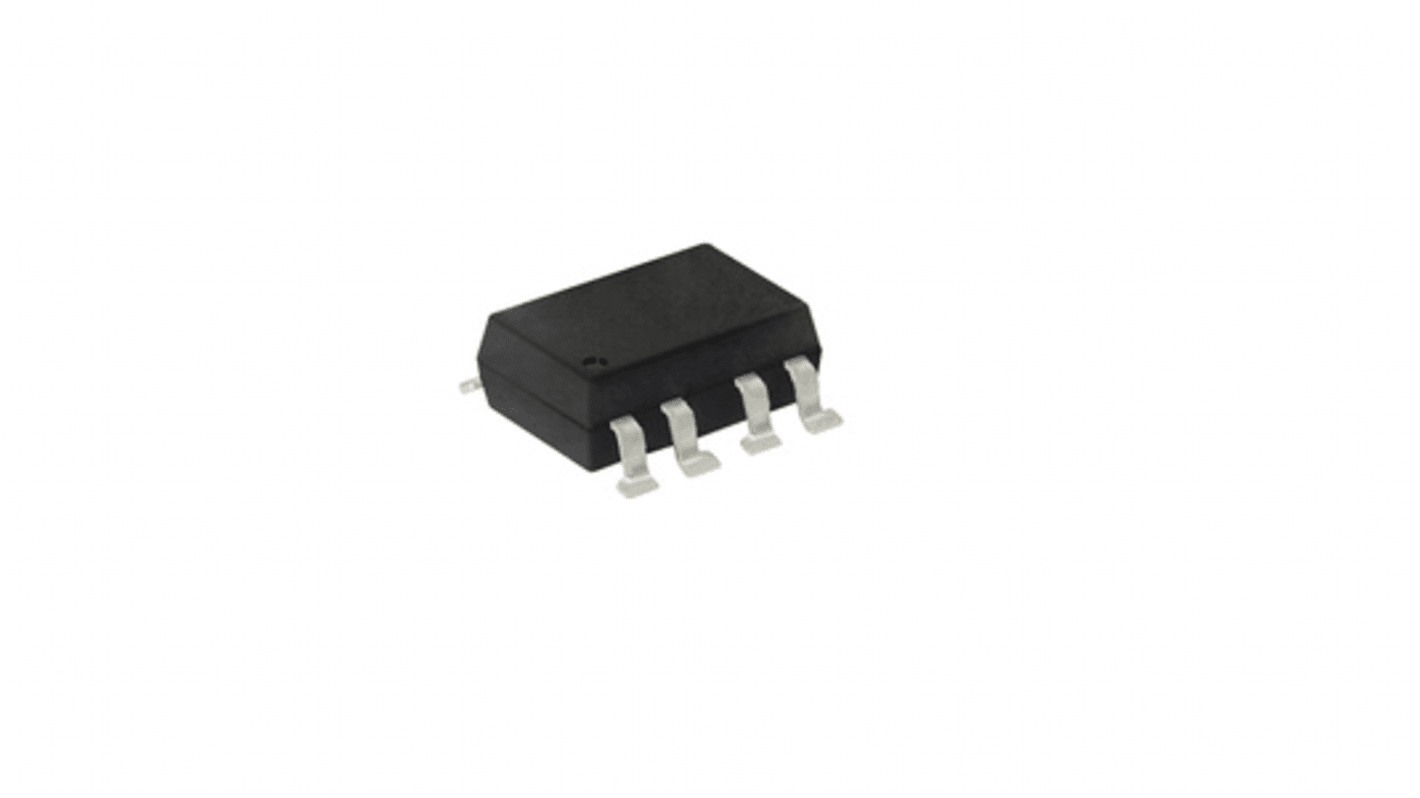

Vishay, VO2631-X017T Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SMD
- RS Stock No.:
- 257-6943
- Mfr. Part No.:
- VO2631-X017T
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£2.65
(exc. VAT)
£3.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 150 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £2.65 |
| 50 - 99 | £1.63 |
| 100 - 249 | £1.58 |
| 250 - 499 | £1.53 |
| 500 + | £1.50 |
*price indicative
- RS Stock No.:
- 257-6943
- Mfr. Part No.:
- VO2631-X017T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mounting Type | Surface Mount | |
| Output Device | Transistor | |
| Maximum Forward Voltage | 1.7V | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | SMD | |
| Series | VO | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Output Device Transistor | ||
Maximum Forward Voltage 1.7V | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type SMD | ||
Series VO | ||
The Vishay 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. The internal shield provides a guaranteed common mode transient immunity of 5 kV/μs. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended.
+5 V CMOS compatibility
Pure tin leads
Guaranteed AC and DC performance over temperature
Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) L56requirements
Pure tin leads
Guaranteed AC and DC performance over temperature
Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) L56requirements
