Vishay, K815P Photodarlington Output Optocoupler, Through Hole, 4-Pin DIP
- RS Stock No.:
- 257-6839
- Mfr. Part No.:
- K815P
- Brand:
- Vishay
Subtotal (1 unit)*
£0.39
(exc. VAT)
£0.47
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 3,271 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £0.39 |
*price indicative
- RS Stock No.:
- 257-6839
- Mfr. Part No.:
- K815P
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mounting Type | Through Hole | |
| Output Device | Photodarlington | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | DIP | |
| Series | K | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Mounting Type Through Hole | ||
Output Device Photodarlington | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type DIP | ||
Series K | ||

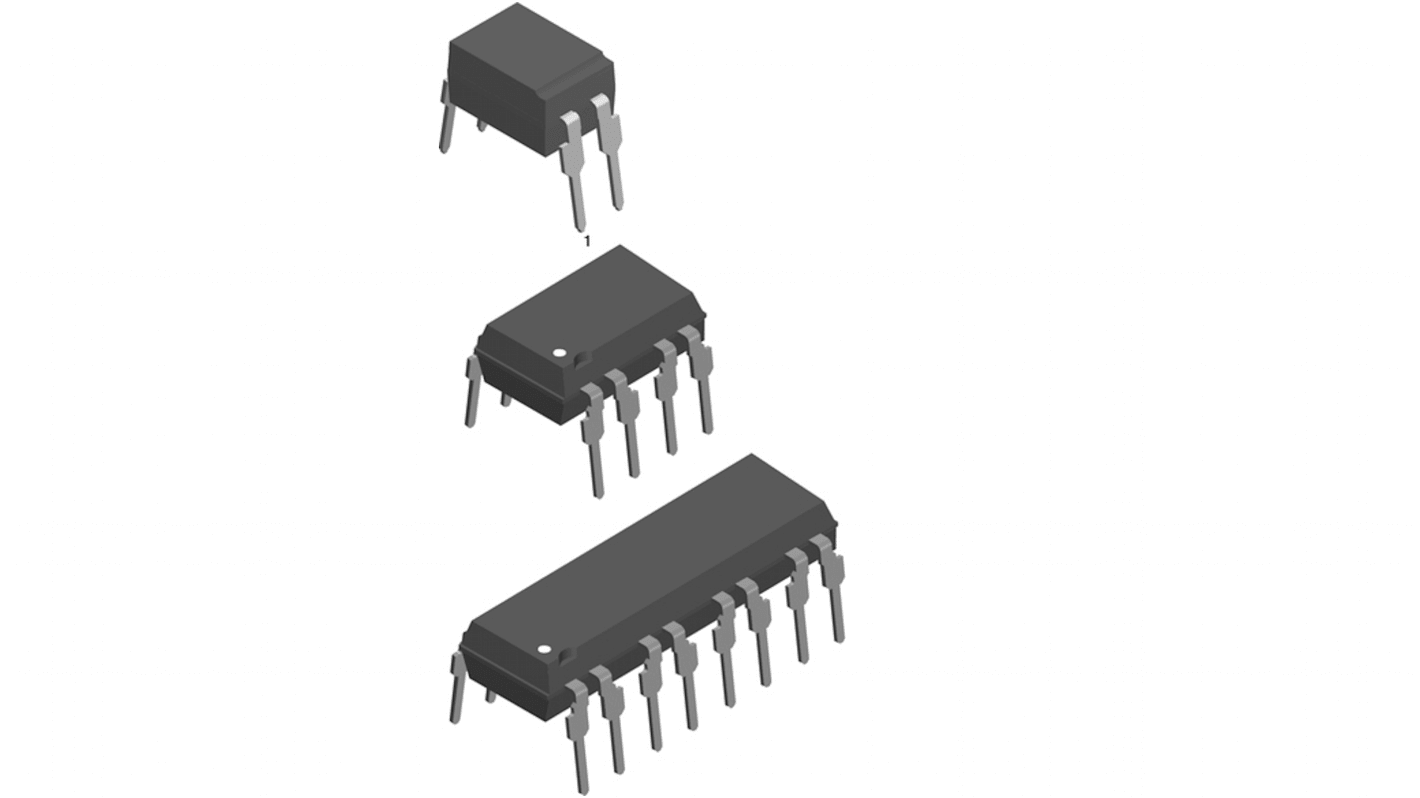

The Vishay K815P Optocoupler each channel consist of a photodarlington optically coupled to a gallium arsenide infrared-emitting diode in an 4 pin, 8 pin, and 16 pin plastic dual inline package. The elements are mounted on one leadframe providing a fixed distance between input and output for highest safety requirements.
Endstackable to 2.54 mm (0.1") spacing
Isolation test voltage 5300 VRMS
Low temperature coefficient of CTR
Wide ambient temperature range
Isolation test voltage 5300 VRMS
Low temperature coefficient of CTR
Wide ambient temperature range
