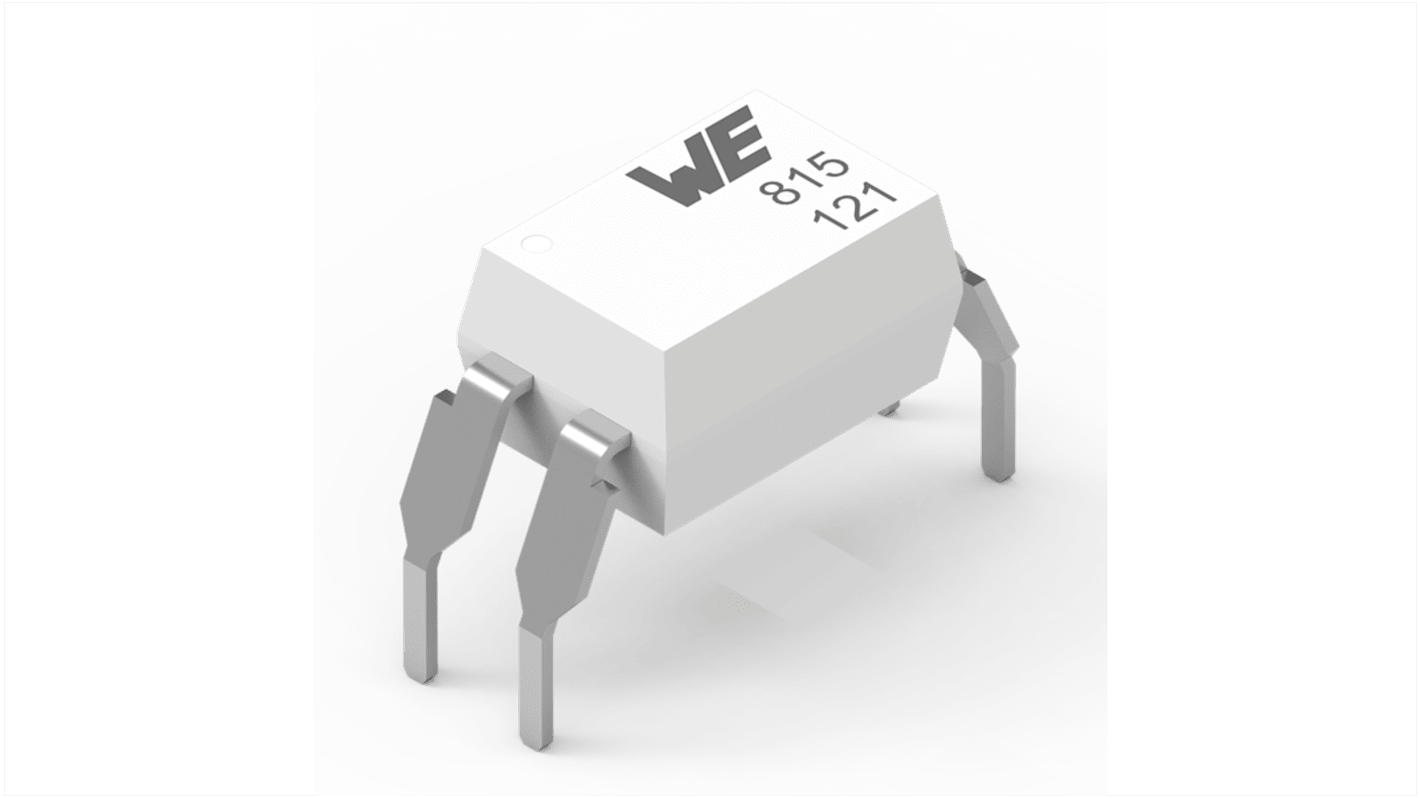

Wurth Elektronik, 141815141010 Photodarlington Output Optocoupler, 4-Pin DIP
- RS Stock No.:
- 240-6996
- Mfr. Part No.:
- 141815141010
- Brand:
- Wurth Elektronik
Subtotal (1 tube of 100 units)*
£35.80
(exc. VAT)
£43.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 + | £0.358 | £35.80 |
*price indicative
- RS Stock No.:
- 240-6996
- Mfr. Part No.:
- 141815141010
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Output Device | Photodarlington | |
| Maximum Forward Voltage | 1.4V | |
| Number of Pins | 4 | |
| Package Type | DIP | |
| Isolation Voltage | 5000Vrms | |
| Series | WL-OCDA | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Output Device Photodarlington | ||
Maximum Forward Voltage 1.4V | ||
Number of Pins 4 | ||
Package Type DIP | ||
Isolation Voltage 5000Vrms | ||
Series WL-OCDA | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Optocoupler Darlington is a Optocoupler DIP 4, SLM-type packaging with an operating temperature -55°C up to +110 °C. Applications: Programmable logic controllers, Sequence controller, Measuring instrument, Automatic vending machines.
High isolation voltage
Good stability of inner isolation
Stable CTR in full operation
Different leadframe options
Good stability of inner isolation
Stable CTR in full operation
Different leadframe options
