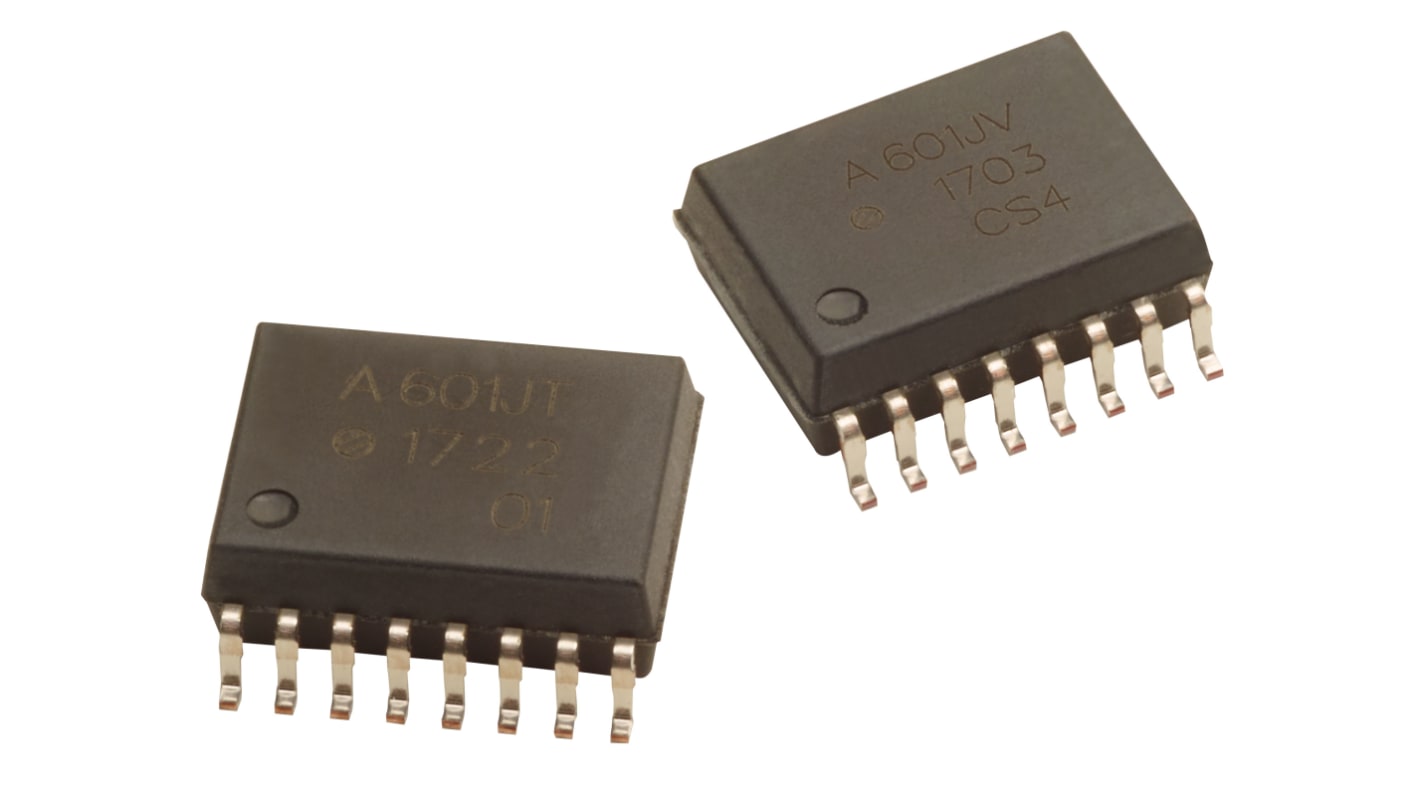

Broadcom, ASSR-601JT-000E MOSFET Output Optocoupler, Surface Mount, 16-Pin SO
- RS Stock No.:
- 239-9301
- Mfr. Part No.:
- ASSR-601JT-000E
- Brand:
- Broadcom
Subtotal (1 tube of 45 units)*
£145.08
(exc. VAT)
£174.105
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,080 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
45 + | £3.224 | £145.08 |
*price indicative
- RS Stock No.:
- 239-9301
- Mfr. Part No.:
- ASSR-601JT-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Mounting Type | Surface Mount | |
Output Device | MOSFET | |
Maximum Forward Voltage | 1.85V | |
Number of Channels | 1 | |
Number of Pins | 16 | |
Package Type | SO | |
Series | ASSR-601JT | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device MOSFET | ||
Maximum Forward Voltage 1.85V | ||
Number of Channels 1 | ||
Number of Pins 16 | ||
Package Type SO | ||
Series ASSR-601JT | ||
- COO (Country of Origin):
- TH
The Broadcom ASSR-601JT is a high-voltage Photo MOSFET that is designed for automotive applications. ASSR-601JT consists of an AlGaAs infrared light emitting diode (LED) input stage optically coupled to a high voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high-voltage MOSFETs. The Photo MOSFET turns on (contact closes) with a minimum input current of 7 mA through the input LED. The Photo MOSFET turns off (contact opens) with an input voltage of 0.4V or less.
Compact solid-state bidirectional signal switch
Qualified to AEC-Q101 test guidelines
Breakdown voltage, BVDSS 1500V at IDSS = 250 μA
Avalanche rated MOSFETs
On-resistance, RDS(ON) < 250Ω at ILOAD = 10 mA
Turn on time TON < 4 ms
Turn off time TOFF < 05 ms
Package 300 mil SO-16
Creepage and clearance ≥ 8 mm (input-output)
Creepage > 5 mm (between drain pins of MOSFETs)
Qualified to AEC-Q101 test guidelines
Breakdown voltage, BVDSS 1500V at IDSS = 250 μA
Avalanche rated MOSFETs
On-resistance, RDS(ON) < 250Ω at ILOAD = 10 mA
Turn on time TON < 4 ms
Turn off time TOFF < 05 ms
Package 300 mil SO-16
Creepage and clearance ≥ 8 mm (input-output)
Creepage > 5 mm (between drain pins of MOSFETs)
