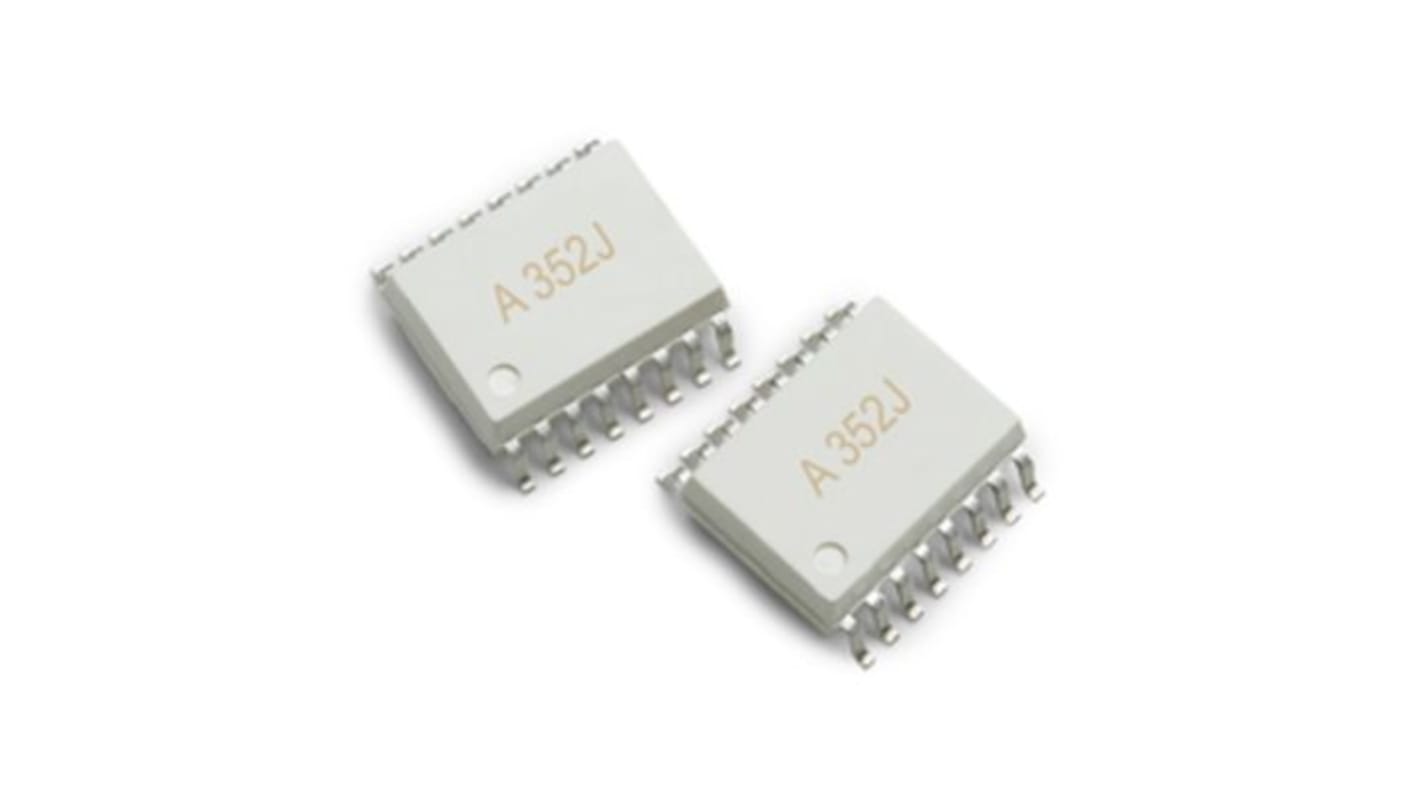

Broadcom, ACPL-352J-000E MOSFET Output Optocoupler, Surface Mount, 16-Pin

View all Optocouplers
Bulk discount available

Subtotal (1 pack of 2 units)*

£11.30

(exc. VAT)

£13.56

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 808 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 8£5.65£11.30
10 - 18£5.38£10.76
20 - 38£4.995£9.99
40 +£4.73£9.46

*price indicative

Packaging Options:
RS Stock No.:
216-3595
Mfr. Part No.:
ACPL-352J-000E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Mounting Type

Surface Mount

Output Device

MOSFET

Maximum Forward Voltage

1.95V

Number of Channels

1

Number of Pins

16

Series

ACPL

The Broadcom ACPL-352J is a 5A gate drive optocoupler device with an integrated fail-safe IGBT and MOSFET diagnostics, protection and fault reporting. The device features common mode transient immunity (CMTI) greater than 100 kV/μs and provides minimal propagation delay with excellent timing skew. The high peak output current and wide operating voltage range eliminate the need of an output buffer circuit, enabling designers to implement cost-effective gate driver solutions for motor drives and power inverters.

5.0 A maximum peak output current
4.5 A minimum peak output current
150 ns maximum propagation delay
Dual output drive to control turning on and off time
