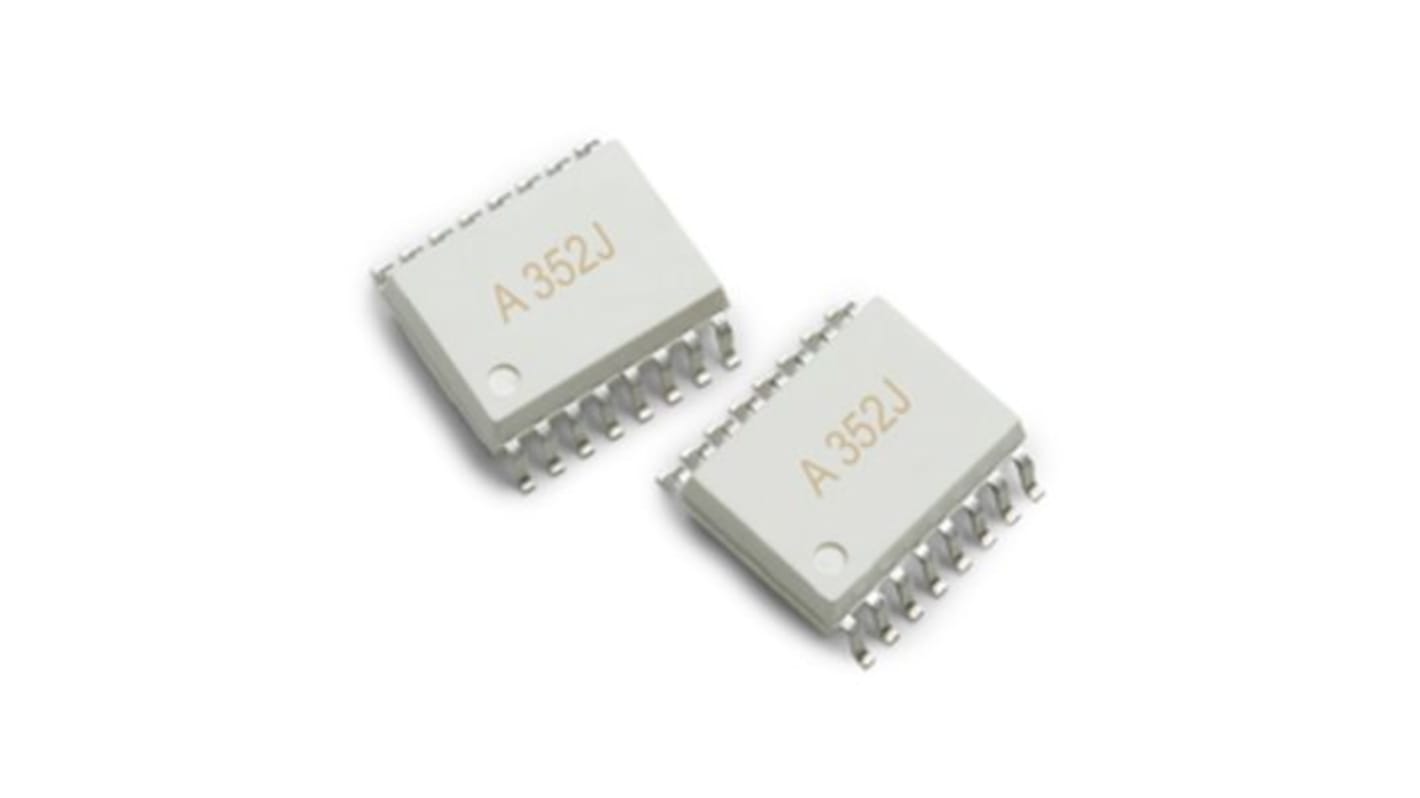

Broadcom, ACPL-352J-000E MOSFET Output Optocoupler, Surface Mount, 16-Pin
- RS Stock No.:
- 216-3594
- Mfr. Part No.:
- ACPL-352J-000E
- Brand:
- Broadcom
Save 25% when you buy 495 units
Subtotal (1 tube of 45 units)*
£167.40
(exc. VAT)
£200.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 765 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
45 - 45 | £3.72 | £167.40 |
90 - 180 | £3.21 | £144.45 |
225 - 450 | £3.102 | £139.59 |
495 + | £2.786 | £125.37 |
*price indicative
- RS Stock No.:
- 216-3594
- Mfr. Part No.:
- ACPL-352J-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Mounting Type | Surface Mount | |
Output Device | MOSFET | |
Maximum Forward Voltage | 1.95V | |
Number of Channels | 1 | |
Number of Pins | 16 | |
Series | ACPL | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device MOSFET | ||
Maximum Forward Voltage 1.95V | ||
Number of Channels 1 | ||
Number of Pins 16 | ||
Series ACPL | ||
The Broadcom ACPL-352J is a 5A gate drive optocoupler device with an integrated fail-safe IGBT and MOSFET diagnostics, protection and fault reporting. The device features common mode transient immunity (CMTI) greater than 100 kV/μs and provides minimal propagation delay with excellent timing skew. The high peak output current and wide operating voltage range eliminate the need of an output buffer circuit, enabling designers to implement cost-effective gate driver solutions for motor drives and power inverters.
5.0 A maximum peak output current
4.5 A minimum peak output current
150 ns maximum propagation delay
Dual output drive to control turning on and off time
4.5 A minimum peak output current
150 ns maximum propagation delay
Dual output drive to control turning on and off time
